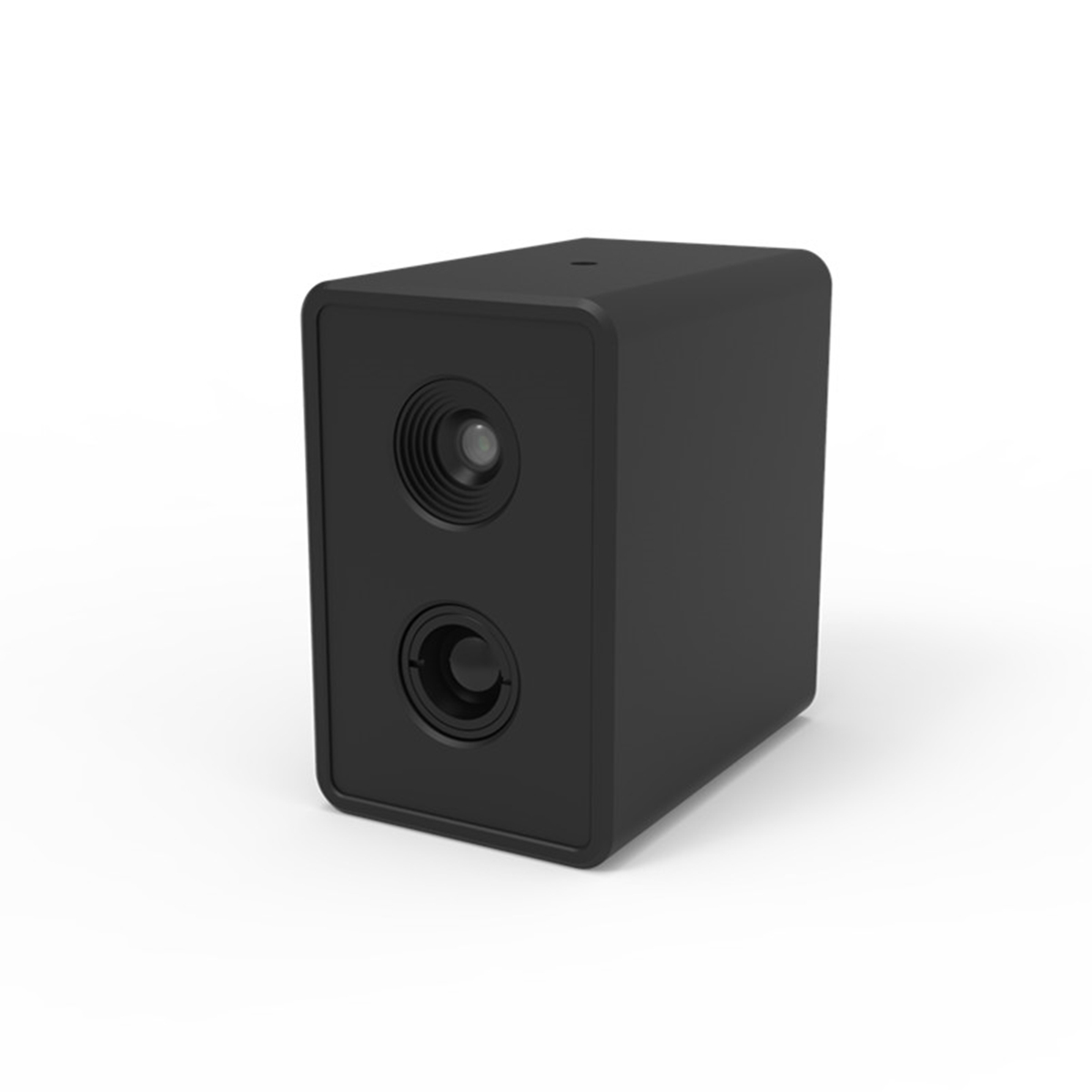

AI Dul-Cam Body Temperature Measurement Thermal System FTMC-AH31308

Quantity:

Feature

- Uncooled thermal image camera

- Detect resolution 384 x 288

- Sensor size 17μm

- Spectral range 8-14μm

- Sensitivity < 50mk@300K,f1.0

- 13mm thermal imaging lens

- Daylight imaging:1/2.5” SONY Exmor CMOS

- 8mm daylight camera focal lens

- H.265/H.264 video compression

- Face detection, face recognition, people counting, AI tracking capability

- Support multi-point high temperature triggers automatic tracking alarm

- Temperature measurement range: 26°C – 46°C

- Temperature measurement accuracy: ±0.3°C(with the human temperature measurement blackbody)

Model No.	FTMC-AH31308
Daylight Imaging
Video Sensor	SONY 1/2.5"CMOS
Focal Length	8mm
View Angle	44° x 25° Tilt Range Wide (42.8°) Pan Range Tele (6.55°) Tilt Range Tele(3.66°)
Min.illumination	1Lux
DNR	2D/3D
Shutter Speed	1/1 – 1/10,000S
SN Ration	Above 50dB
White Balance	Auto, Manual,One Push
Exposure	Auto, Manual, Shutter Priority
AGC	Auto, Manual
Thermal Imaging
Detector	Uncooled thermal imaging sensor
Resolution	384x288
Sensor Size	17μm
Spectral range	8-14μm
Sensitivity	<50mk@300K,f1.0
Focal Length	13mm
Temperature measurement range	26° C - 46°C
Temperature measurement accuracy	±0.3°C（with the human temperature measurement blackbody）
Video Display	Black Hot / White Hot / Brown hot / Iron oxide red hot / Color Palettes
Temperature measurement distance	5m
Network
Resolution	1920 x 1080
Image Compression	H.265/H.264
Protocols	HTTP/TCP/UDP/RTSP/RTMP/ONVIF
General
Output Interface	RJ45 X 1, DC12V X 1
Power Consumption	Below 7W
Working environment	Working Temperature 0 - 40°C, working humidity 10% - 90%, indoor/no wind
Dimensions(L x W x H)	110mm x 70mm x 107mm
Weight	1KG
Temperature Range	35°C - 45°C
Radiation Surface	78mm*78mm
