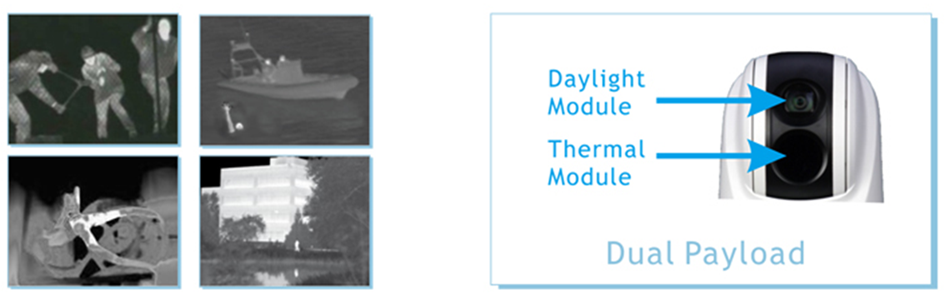

| Features | |||||||||
※ Up to 640*480 high sensitive thermal imager, 1717μm, NETD 60mK
| |||||||||

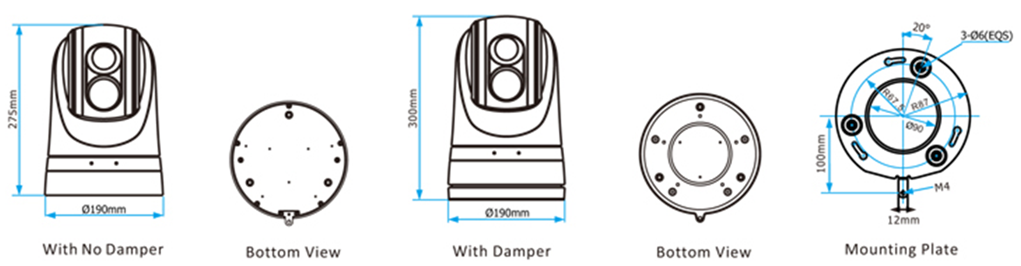

| Dimensional Drwing | |||||||||
 | |||||||||
| Technical Specification | |||||||||
| Model No. | PATC-Z31936 | PATC-Z34036 | PATC-Z62536 | PATC-Z64036 | |||||
| Thermal Imaging Camera | |||||||||
| Sensor Type | Uncooled Amorphns Silicon FPA | ||||||||
| Resolution | 384 x 288 | 384 x 288 | 640 x 480 | 640 x480 | |||||
| Sensor Size | 17μm | ||||||||
| Focal | 19mm | 40mm | 25mm | 40mm | |||||
| Focus | Fixed | ||||||||
| Image Frame Rate | 50HZ(PAL) / 60HZ(NTSC) | ||||||||
| NETC(300K) | 60mK | ||||||||
| FOV | 19.5° x 14.7° | 9.3° x 7° | 32° x 24.2° | 15.5° x 11.6° | |||||
| Detecting Range | Vehicle :2570m; Man: 550m | Vehicle: 5400m Man: 1170m | Vehicle: 3380m Man: 735m | Vehicle: 5400m Man: 1170m | |||||
| Recognition Range | Vehicle: 640m Man: 130m | Vehicle: 1350m Man: 290m | Vehicle: 845m Man: 180m | Vehicle: 1350m Man: 290m | |||||
| Digital Zoom | 1X, 2X, 4X | ||||||||
| Daylight Imaging Camera | |||||||||
| Video Sensor | 1/4"SONY EX-View HAD CCD | ||||||||
| Effective Pixel | PAL: 750(H) x 582(V); NTSC 768(H) x 494(V) | ||||||||
| Resolution | 550TVL | ||||||||
| Video System | PAL/NTSC | ||||||||
| Zoom | Optical: 36X; Digital:12X | ||||||||
| Lens | f = 3.4mm - 122.4mm, F16.-F4.5 | ||||||||
| View Angle | 57.8°(wide) - 1.8°(tele) | ||||||||
| Min.Illumination | Color: 1.4Lux; Mono:0.01Lux | ||||||||
| WB | Auto | ||||||||
| Focus | Auto/Manual | ||||||||
| IRIS | Auto/Manual | ||||||||
| S/N Ratio | Not less than 50dB | ||||||||
| WDR | Yes | ||||||||
| BLC | On/Off | ||||||||
| Image Stabilization | On/Off | ||||||||
| DNR | 1 - 5 Step/Off | ||||||||
| Day/Night | Auto/Manual | ||||||||
| PTZ | |||||||||
| Pan Range | 360° Continuous | ||||||||
| Pan Speed | Control speed: 0.04° - 90°/s; Preset speed: 120°/s | ||||||||
| Tilt Range | -15° - 90°(Auto Flip) | ||||||||
| Tilt Speed | Control:0.3° - 60°/s, adjustable; Preset Speed: 90°/s | ||||||||
| Preset | 256 | ||||||||
| Preset Predicion | ±0.2° | ||||||||
| General | |||||||||
| Video Output | 1 Channel Thermal Imaging Video; 1 Channel Visual Video; 1 Channel Switch Video | ||||||||
| Adress | 0 - 255 | ||||||||
| Power Consumption | 35W/50W(Heater On) | ||||||||
| Working Temperature | -25°C - +65°C | ||||||||
| Voltage | DC24V | ||||||||
| IP Code | IP67 | ||||||||
| Anti-Vibration | Pan 9G, Tilt 15G | ||||||||
| Wind Resistance | 180 Km/h | ||||||||
| Dimensions | Standard: Φ190(mm) x 275(mm); With Damper: Φ190(mm) x 300(mm) | ||||||||
| Weight | 6kg W/O Damper; 7kg with Damper(Optional) | ||||||||
