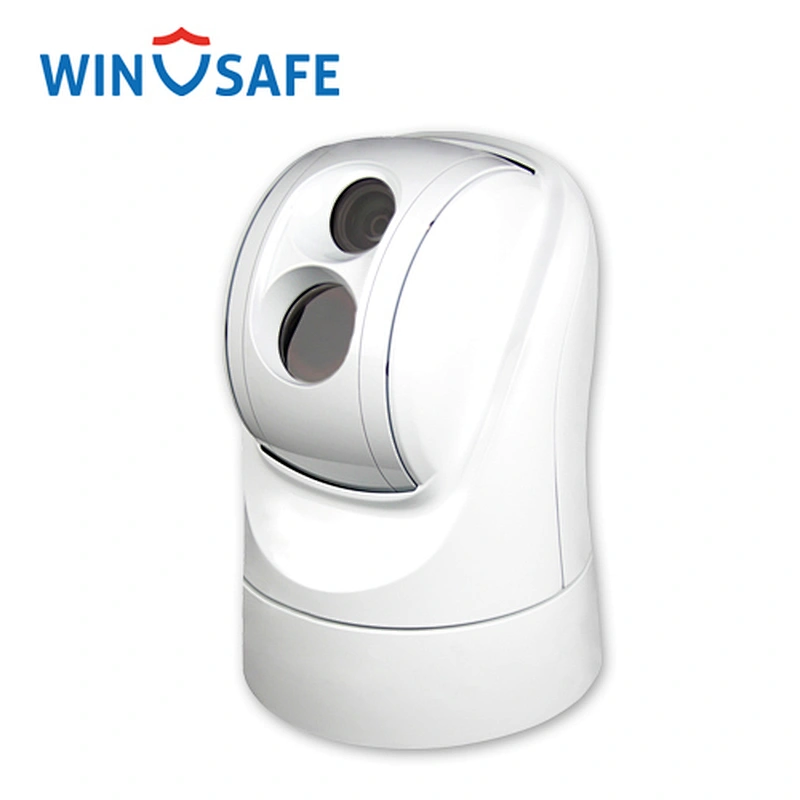

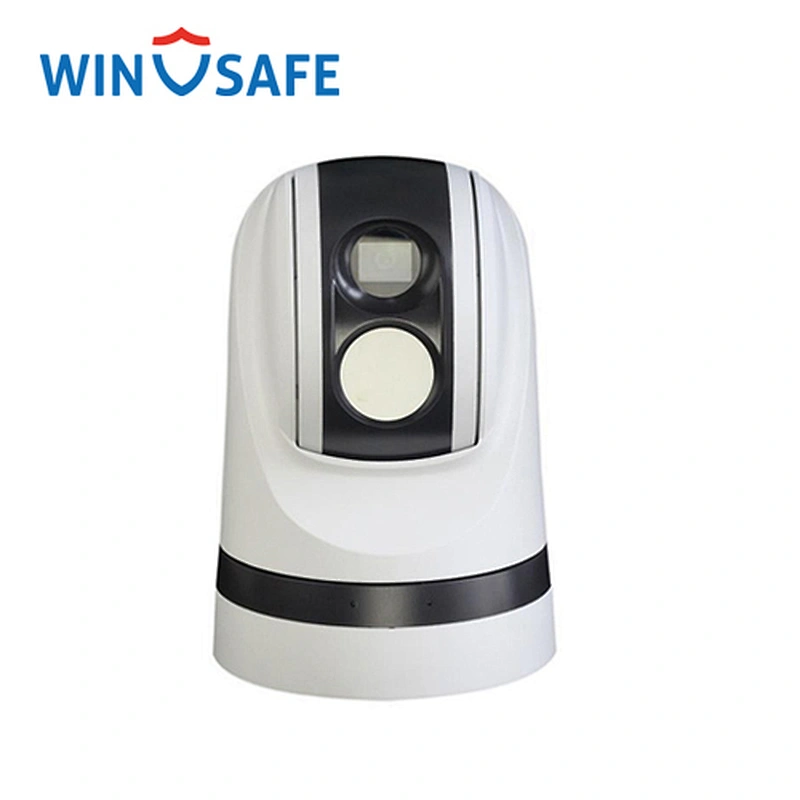

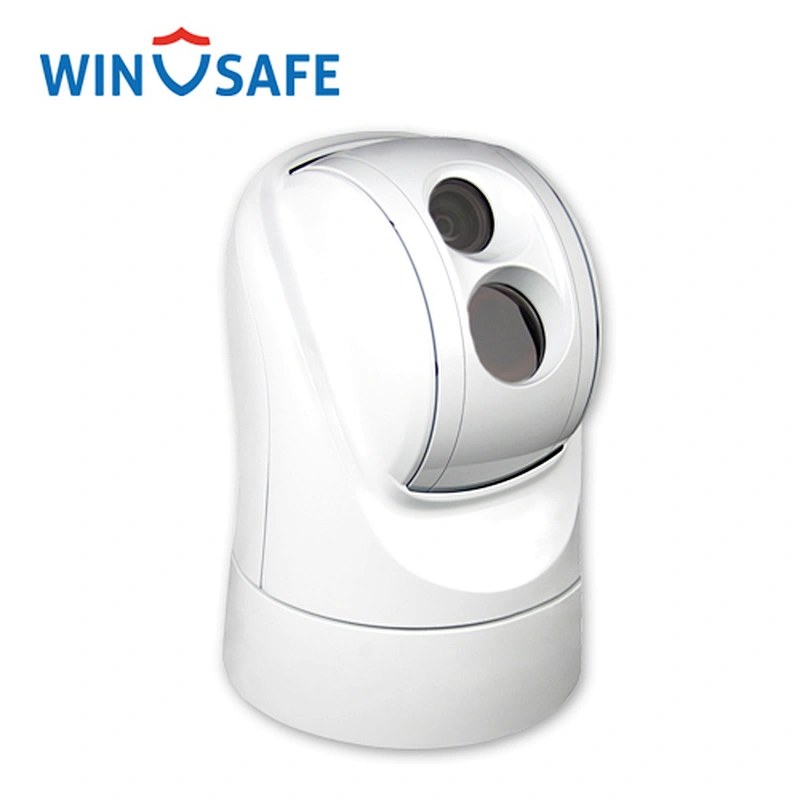

Professional Marine Thermal Imaging PTZ Camera

Professional Marine Thermal Imaging PTZ Camera

Model NO.: PATC-F
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 1000 piece / Month
Country of Origin: Hangzhou
Stock Time: 7-15 Days

Quantity:

Product Description

Model No.	PATC-FZ319S3002GT	PATC-FZ340S3002GT	PATC-FZ619S3002GT	PATC-FZ640S3002GT
Thermal Imaging Camera
Sensor Type	Uncooled Amorphns Silicon FPA
Working Band	8μm~14μm
Resolution	384 x 288		640 x 480
Sensor Size	17μm
NETK(300K)	≤60mk
FOV	19mm:19.5° x 14.7°	40mm:9.3° x 7°	19mm:32.0° x 24.2°	40mm:15.5° x 11.6°
Detecting Range	Vehicle:2570m Man:550m	Vehicle:5400m Man:1170m	Vehicle:2570m Man:550m	Vehicle:5400m Man:1170m
Recognition Range	Vehicle:640m Man:130m	Vehicle:1350m Man:290m	Vehicle:640m Man:130m	Vehicle:1350m Man:290m
Video Display	Black Hot / White Hot		White Hot / Black Hot /Color Palettes
Digital Zoom	1X,2X,4X
Daylight Imaging Camera
Video Sensor	1/2.8"SONY"Exmor R"CMOS, 2.13 Megapixel
Zoom	Optical: 30X; Digital:12X
Lens	f = 4.3mm - 129mm, F1.6.-F4.7
View Angle	63.7°(wide) - 2.3°(tele)
Min.Illumination	Color: 0.35Lux; Mono:0.013Lux
S/N Ratio	Not less than 50dB
WDR	On/Off
BLC	On/Off
DNR	1 - 5 Step/Off
Day / Night	Auto/Manual
Pan Range	360° Continuous
Pan Speed	Control speed: 0.04° - 100°/s; Preset speed: 100°/s
Tilt Range	-15° - 90°(Auto Flip)
Tilt Speed	Control:0.04° - 90°/s, adjustable; Preset Speed: 90°/s
Preset	256
Preset Precision	±0.2°
Digital Stabilization	Single Axis vertical stabilization
Network
Daylight Cam Resolution	PAL: 1080p25, 720p50,720p25; NTSC:1080p30,720p60,720p30
Thermal Cam Resolution	PAL: 720 x 576; NTSC: 720 x 480
Video Compression	H.264
Network Protocols	HTTP, RTSP,TCP,UDP,ONVIF
Simultaneous Live View	Up to 10
Dual Stream	Support
Video Interface	Dual SDI / Dual CVBS
General
Control Interface	RS-485
Adress	0 - 255
Comm Protocol	PELCO-P/PELCO-D(Self-Adaptive)
Baud Rate	2400bps, 4800bps,9600bps,19200bps(Self Adaptive)
Voltage	DC 10.8 - 32V
Power	35W/50W
Working Temperature	-25°C - +55°C
IP Code	IP67
Dimensions	Φ190(mm) x 275(mm)
Weight	6.3±0.1Kg
