Features
※ 1/2.8"CMOS, 8.57MP, up to 3840x2160@30fps
Technical Specification
Model No.
MZC-F22UV2
HD Camera
Image Sensor
1/2.5"CMOS, 8MP
Video Format
YUY2: 1920x1080, 320x240, 640x480,800x600, 1024x768, 1280x720
Focal Lens
2.2mm
Iris
F2.4
Field of View
Horizontal 110°
Min.illumination
1Lux @ (F1.8, AGC ON)
White Balance
Auto, One Push
S/N
Above 50dB
AGC
Auto, Manual
Interface
Control Interface
1 x USB
UVC
UVC1.1
UVC PTZ Control
Support
UAC
Support
General
Power Supply
DC 5V
Power Consumption
Below 2.5W
Working Temperature
-10°C - +40°C
Store Temperature
-20° - +60°
Dimension(L x W x H)
208mm x 56mm x 48mm
Weight
0.22kg
Color
Black

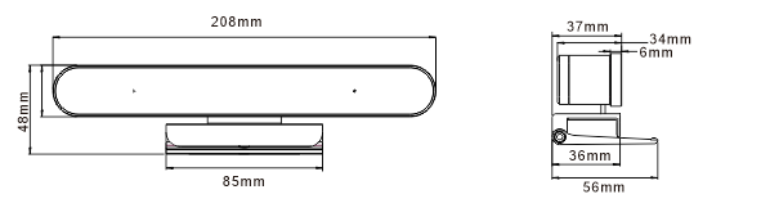

Dimension(mm)
