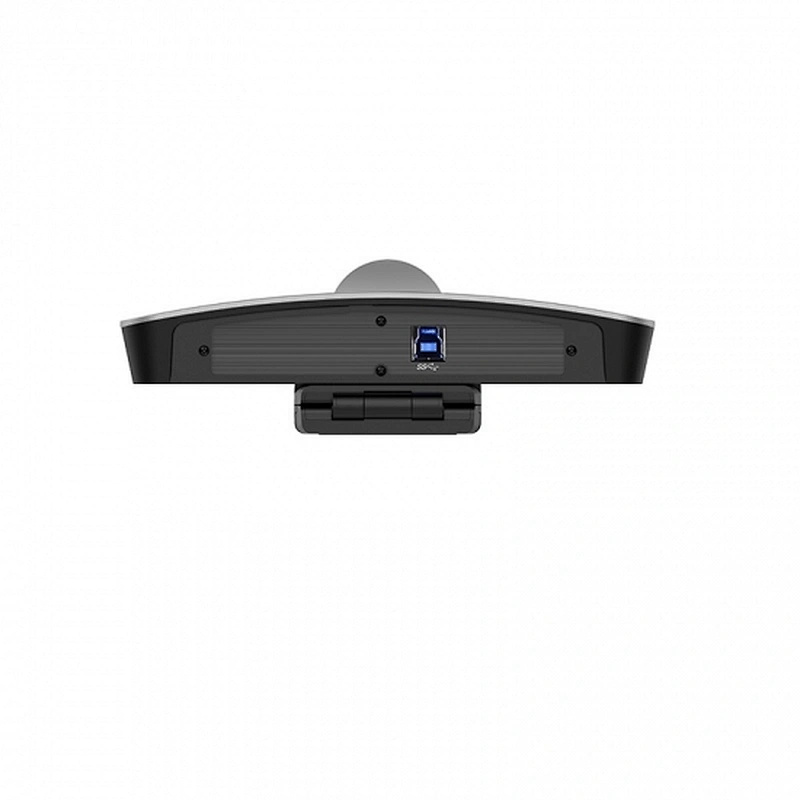

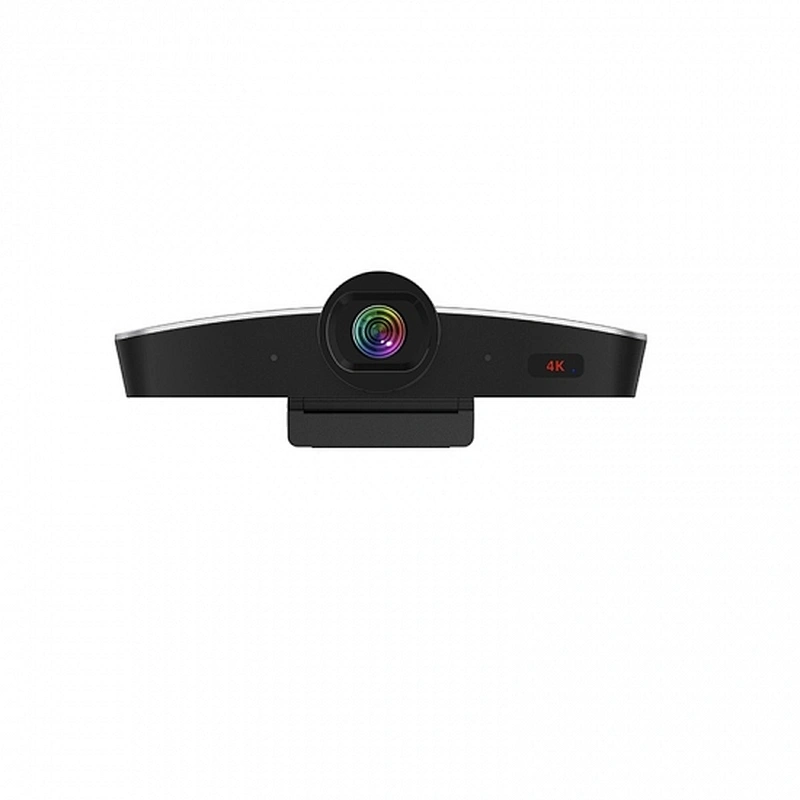

4K EPTZ UHD Video Camera With Auto-Framing
4K EPTZ UHD Video Camera With Auto-Framing
4K EPTZ UHD Video Camera With Auto-Framing
4K EPTZ UHD Video Camera With Auto-Framing
4K EPTZ UHD Video Camera With Auto-Framing

4K EPTZ UHD Video Camera With Auto-Framing

Model NO.
UHV-100M-U2-4K
Delivery
EXW, FOB
Minimum order quantity
1 piece
Country of Origin
China
Quantity:

Product Advantage

※ Adopt the most advanced image DSP and 1/2.8"8.42MP sensor
※ Used high quality 8.42MP optical full glass lens, output ultra-high definition and crisp image
※ Support auto-fram function, to output best video size
※ Power via USB, a single USB2.0 cable for video output, camera control and power supply directly, friendly-use and flexible operation
※ Fast video switch: only 1 second
※ Unique and patent camera housing and mechanism design
※ With built-in dual microphone, pick up distance 5 meters

Product Features

※ 4x digital zoom
※ Support max 3840 x 2160 @ 30UHD resolution
※ 120 degree view angle without distortion
※ Electronic pan/tilt design, no mechanism problem
※ Support WDR, 3D noise reduction
※ Support image flip function, camera can be installed upside down

Technical Specification

Model No.

UHV-100M-U2-4K

Sensor

1/2.8"inch high quality 8.42MP CMOS sensor

Video Format

YUY2/NV12: 1920x1080@30, 1280x720@30, 640x480@30, 320x240@30
MJPG/H.264/H.265: 3840x2160@30, 2560x1440@30, 1920x1080@30, 1280x720@30, 640x480@30,320x240@30

Zoom

4x lossless digital zoom

Horizontal view angle

120°

F.No.

2

Focal Distance

f=2.22mm

Control Interface

USB2.0(UVC)

Noise Reduction

3D

Minimum Lux

0.1 Lux

White Balance

Auto / Manual / Auto Tracking / One Push / Indoor / Outdoor / Sodium Lamp / Fluorescent Lamp

Anti-Flicker

OFF/50Hz/60Hz

Gamma

Support

In-ceiling Mount

Support

Mirror

Support

Iris

Fixed

Electronic Shutter

Auto/Manual

BLC

Support

Image Flip

Support

USB power

Support

Input Voltage

5V 1A

Dimension(W x H x W)

199 x 93 x 65mm
