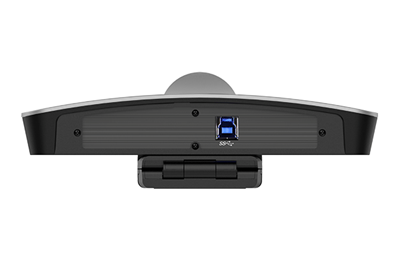

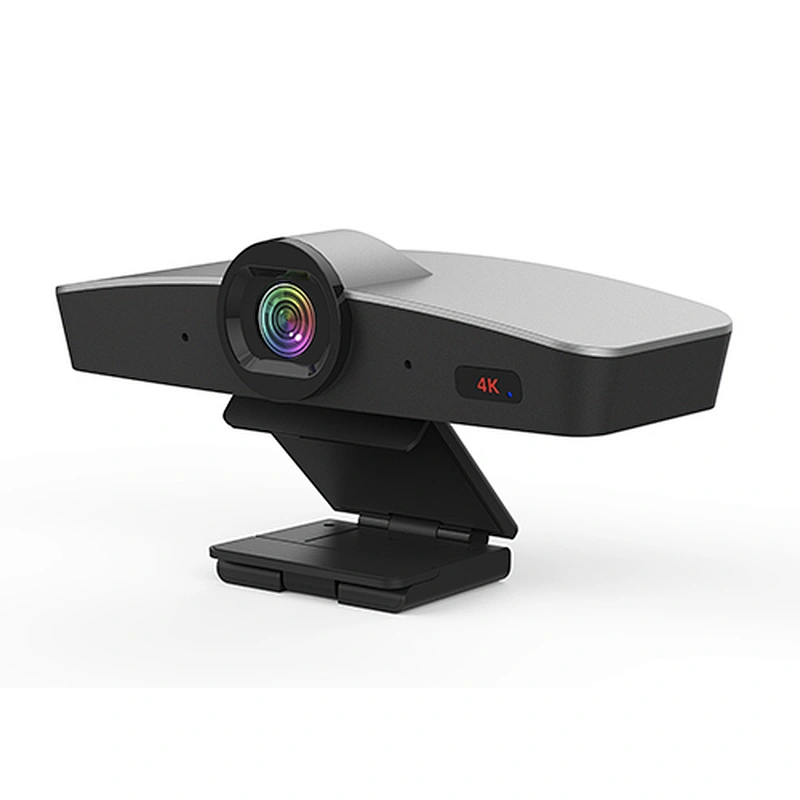

UHV-100H-U3S is a professional 4K Ultra HD Eptz video conferencing camera, 4X digital zoom, 110 degree super wide angle, no PSU requested, power/control/video from USB3.0 and USB2.0, idea option for infividual desktop and huddle room video conferencing.
Feature
※ Adopt the most advanced image DSP and 1/2.5"8.51MP Sensor
※ Used high quality 12MP optical full glass lens, output ultra-high definition and crisp image
※ Power via USB, a single USB cable for video output, camera control and power supply directly, friendly-use and flexible operation
※ Fast video swith: only 1 second
※ Unique and patent camera housing and mechanism design
※ Field firmware upgrade to simplify compatibility
※ Matched with full function IR remote controller, to control camera's electronic PTZ movement
※ 4x digital zoom
※ Support max 3840x2160@30 UHD resolution
※ 110 degree view angle without distortion
※ Electroinc pan/tilt design, no mechanism problem
※ Support WDR, 2D noise reduction
※ Support image flip function, camera can be installed upside down
Specification
Model No. | UHV-100H-U3S | |||
Sensor | 1/2.8"inch high quality, 8.51MP Sony CMOS sensor | |||
Video System | USB3.0 | USB2.0 | ||
MJPG | YUV | MJPG | YUV | |
3840x2160P30/25/15 | 1080P30/25/15 | 3840x2160P30/25/15 | 1080P5 | |
Zoom | 4x digital zoom | |||
Horizontal view angle | 110° | |||
F.no. | 2 | |||
Focal distance | f=2.22mm | |||
Preset | Remote 10 | |||
Control Interface | USB | |||
Noise reduction | 2D | |||
Minimun Lux | 0.1Lux | |||
White Balance | Auto / Manual / Auto Tracking / OnePush / Indoor / Outdoor | |||
Anti Flicker | OFF/50Hz/60Hz | |||
Gamma | Support | |||
In-ceiling Mount | Support | |||
Mirror | Support | |||
Focus | Fixed | |||
Iris | Auto/Manual | |||
BLC | Support | |||
Image Flip | Support | |||
USB Power | Support | |||
Input Voltage | 5V 900mA | |||
Dimension(W x H x W) | 220mm x 173mm x117mm | |||
Output Interface
