※ High quality 80 degree wide angle optical glass lens to ensure smooth and transparent HD images
※ Support EPTZ function, user-friendly and quick to use, zero mechanical failure
※ Support 4X digital zoom
※ Support both MJPG and YUY2 video format, the maximum resolution up to 3840x2160@30
※ Supports Windows, Mac, Android, Linux and Google Chrome operation systems
※ The USB(type C) interface supports UVC and UAC protocols and is compatible with most audio and video conferencing software
※ Support landscape video output, flexible to meet different application
※ Support Phase Detection Auto Focus technology, always keep clear focus
※ Built-in high-quality microphone, clear and comfortable sound pickup
※ Firmware upgrade using USB interface, easy and fast operation
※ LED indicator will light up when the machine is running and there is image output, always grasp the machine running status
※ A variety of installation methods to meet the video framing requirements of different occasions
※ Parameters such as brightness, contrast, hue, saturation, sharpness, gamma, and white balance can be adjusted
Model No. | UHV-100-U2-4K |
Sensor | 1/2.8"12MP UHD CMOS sensor |
Lens | Iris：F1.8; View Angle: 80°; Object Distance：10cm - infinity |
Zoom | 4X digital zoom |
EPTZ | Support |
Output Interface | Type-C(USB2.0) |
Video Format | YUY2: 1080x720@10; 1024x576@20; 640x480@30 |
MJPG: 3840x2160@30; 2560x1440@30; 1920x1080@30; 1280x720@30; 1024x576@30; 640x480@30; 1080x1920@30; 720x1280@30; 576x1024@30; 360x480@30 | |
Focus | PDAF(Phase Detection Auto Focus) |
White Balance | Auto / Manual |
Exposure | Auto / Manual |
Flicker | 50HZ/60HZ/OFF |
2D、3D Noise Reduction | Support |
WDR | Support |
Backlight Compensation | Support |
Mirror, Flip | Support |
Microphone Pointing | Omnidirectional microphone |
Sensitivity | -26±2dB RL=2.2KΩ Vs=2.0V |
S/N Ratio | 64dB |
Polar distance | 3-5m |
Input Voltage | USB power supply 5V@500mA |
Working Environment | Temperature: -10°C - 50°C; Humidity:≤80% |

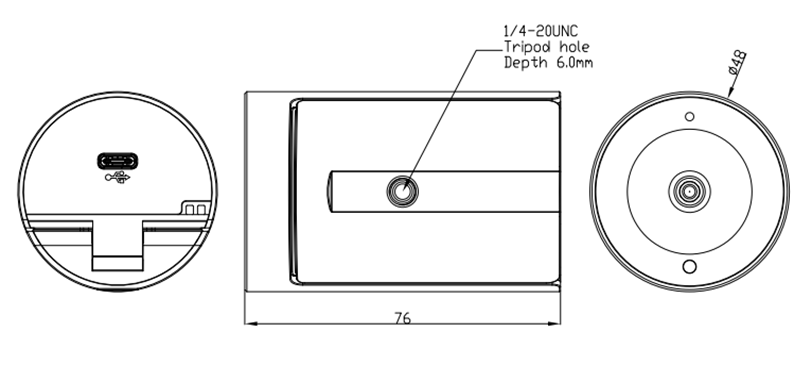

Size | 76mm×φ48mm |
Net Weight | 0.13kg |
Accessories | 1.5m USB2.0(A-C) cable, Manual, Warranty card |
