MZC Series auto tracking EPTZ camera helps to achieve intelligent meeting experience, implemented with intelligent video analysis and EPTZ technology, it can automatically frame meeting participants in the room, and it fres of camera operation during a meeting and enables meeting attendees to focus more on discussion.
Features
※ 1/2.8"CMOS, 8.57MP, up to 3840x2160@30fps
※ 2.2mm focal lens, up to horizontal 110°FOV, no distortion
※ USB power supply, USB type C interface
※ Compact design, thinkness of the camera is less than 40mm, side entry USB cable, suitable for ultra-thin TV installtion
※ Integrated with video analysis algorithm, able to automatically detect and frame meeting participants using EPTZ technology
Technical Specification
Model No. | MZC-F22UV5 |
HD Camera | |
Image Sensor | 1/2.5"CMOS, 8.57MP |
Signal Format(SDI) | Max: 4K@30fps |
Video Format | YUY2: 1920x1080, 320x240, 640x480,800x600, 1024x768, 1280x720 |
Focal Lens | 2.2mm |
Iris | F2.4 |
Field of View | Horizontal 110° |
Min.illumination | 1Lux @ (F1.8, AGC ON) |
Shutter Speed | 1/60 - 1/10,000s |
White Balance | Auto, One Push |
S/N | Above 50dB |
DNR | 2D/3D |
BLC | Support |
OSD | English |
USB | |
OS | Windows XP/7/8/10,Linux, Mac OS, Android OS |
Video Interface | USB2.0 |
Reslution | MJPG: 1920X1080, 1280X720, 640X480, 320X240 |
UVC Protocol | USB2.0/UVC 1.0 - UVC1.4 |
UVC PTZ Control | Support EPTZ |
Output Interface | |
USB Interface | USB TYPE-C |
General | |
Power Supply | 5V(USB) |
Power Consumption | Below 4.5W |
Working Temperature | 0°C - +40°C |
Store Temperature | -20° - +60° |
Dimension(L x W x H) | 208mm x 34mm x 56mm |
Weight | 0.4kg |

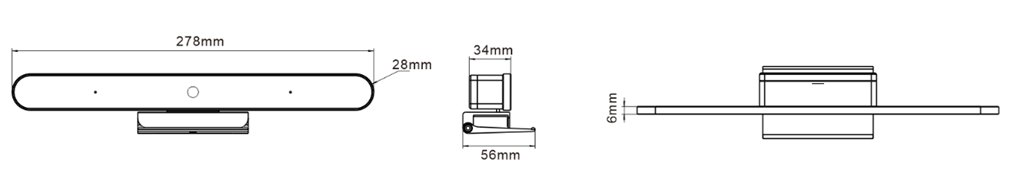

Dimension(mm)
