Features
※ H.265 video compression,dual stream
※ 2.14MP,1/2.8"Exmor CMOS
※ Support various HD video formats
※ Has 3G-SDI output interface
※ 20X Optical zoom,12X digital zoom
※ With OSD menu
※ With RS485 & RS232 control interface
※ Has image flip function
Technical Specification
Model No. | ZC4-A2001N |
Image Sensor | 1/2.8"Exmor CMOS, 2.14MP |
HD Signal Format | 1080P/60,1080P/50,1080P/30,1080P/25,1080I/60;720P/60,720P/50,720P/30,720P/25 |
WDR | Yes |
Focal | f =4.7mm -94.0mm |
IRIS | F1.6 - F3.5 |
Zoom | Optical: 20X, Digital: 12X |
Field of View | 59.5° - 2.9° |
Focus | Auto, Manual, One push |
Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) |
Shutter Speed | 1/1 - 1/10,000s |
AGC | Auto/Manual |
White Balance | Auto, Indoor, Outdoor, One push, Manual, Auto Track, |
AE Control | Auto, Manual, Shutter Priority, Iris Priority |
BLC | Yes |
S/N Radio | Above 50dB |
Preset Number | 256 |
OSD | Yes |
Image Flip | Yes |
Noise Reduction | 2D/3D |
Network | |
Max,Image Size | 1920x1080 @60fps |
Video Compression | H.265,H.264 |
Audio Compression | AAC |
Protocol | HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF |
Dual Stream | Support |
Simultaneous Users | up to 10 users |
Interface | |
Video Output | 3G-SDI |
Ethernet | RJ45,100M |
Control Interface | RS-232,RS-485 |
General | |
Protocol | VISCA and PELCO-D, PELCO-P |
Spectra Address | 1~7(VISCA),0-255(PELCO-D/PELCO-P) |
Power Supply | DC12V |
Power Consumption | ＜15W |
Working Temp | 0°C - +40°C |
Storage Temp | -20°C - +60°C |
Dimension | 170mm x 80mm x 70mm |
Weight | 0.83KG |
Color | Grey |

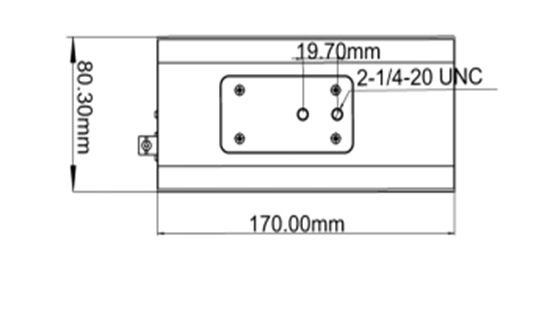

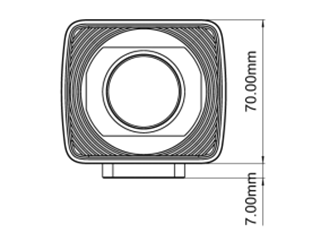

Dimension
