Hybrid Classroom EPTZ AI Tracking Cameras System

Hybrid Classroom EPTZ AI Tracking Cameras System

Model NO.: EZC5-V3 Series

Quantity:

Product Description

Under current global pandemic situation,hybrid classroom becomes very popular that part of students come to physical classroom whereas part of students stay at home and join class remotely, with the help of cloud based video conferencing technology together with intelligent AI tracking cameras, teaching & learning experience could be improved dramatically.

WINSAFE, as an experienced & professional manufacturer of AI tracking cameras have now proudly released EZC5 series EPTZ lecturer tracking cameras and students locating cameras in a view to helping teachers and students benefit from using hybrid classroom solutions.

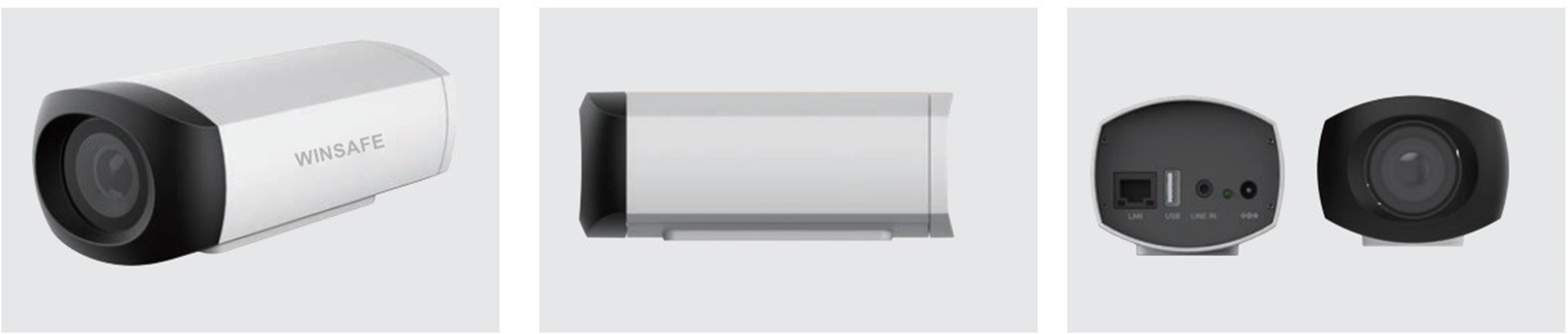

Sneak Preview of the Camera

EZC5-V3 functions:

Built-in images swithing rule to switch among tracking & full view images of the cameras based on priority, outputs excellent switched video to record or steam, free of editing work.

» 8MP, 1/2.8"4K CMOS
» Lecturer camera: 44° HFOV
Student camera: 82° HFOV

» EPTZ Technology, can output close-up and
full view images simultaneously
» Support 4 steams, which are close-up dual
steams and full view dual steams

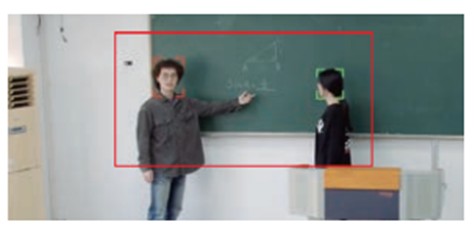

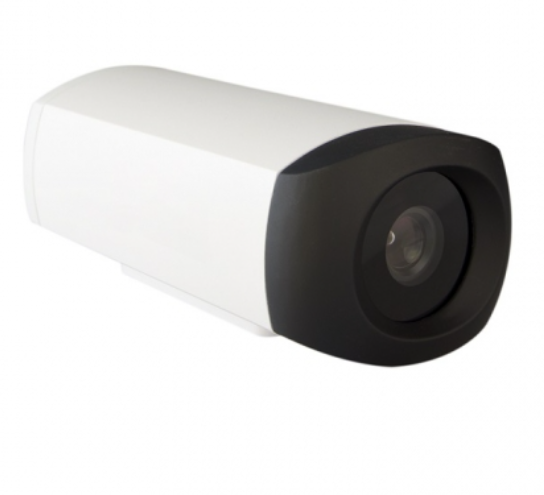

Smart Lecturer Tracking Camera LZC5-F79NV3

Zone tracking on:
Persons move into saved preset area, cameras move to preset

Others:
» Keep tracking if lecturer turns around or stands
still for a while
» Track lecturer only, not track other moving object.
» Tilt Motion while tracking
» Track with lights on / off
» Not track moving objects on Projector

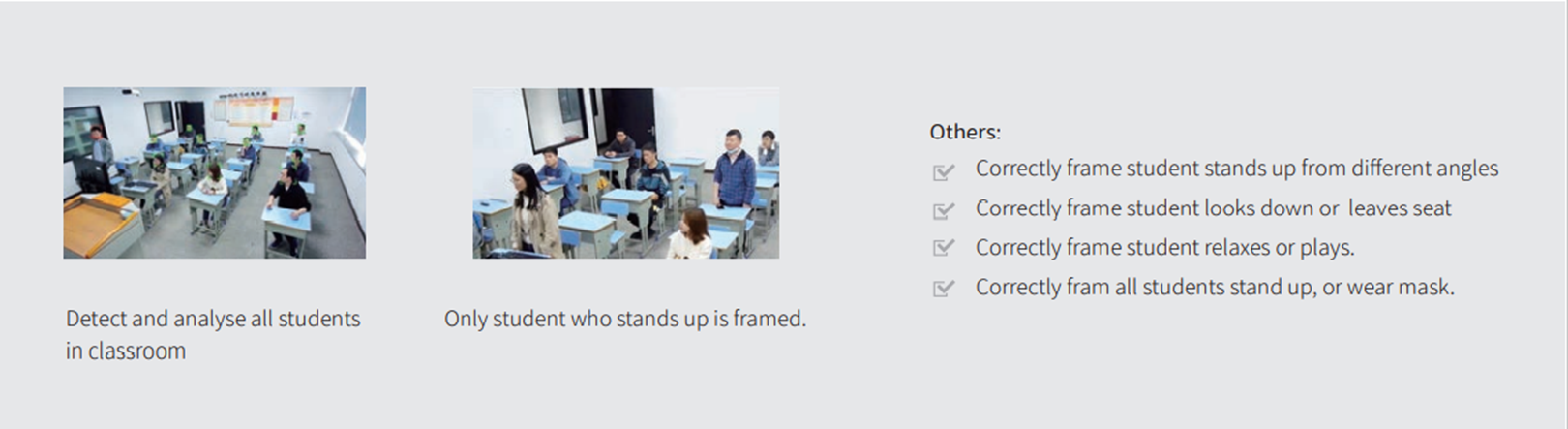

Smart Student Locating Camera SZC5-F34NV3

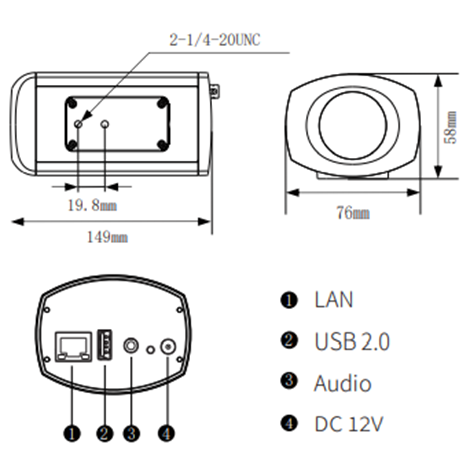

Dimensions

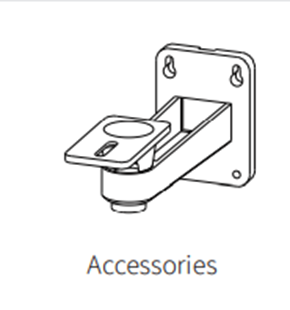

Optional

Specification

Model LZC5-F79NV3	SZ5-F34NV3
Camera
Image Sensor 1/2.8"CMOS,8.46MP
Focal Lens 7.9mm	3.4mm
Iris F=2.5	F=2.2
Field of View 44° HFOV	80° HFOV
White Balance Auto, Manual, One Push
Exposure Control Auto, Manual, Shutter Priority
DNR 2D/3D
Video Output Format 4KP30
SN Ratio Above 50dB
Image Flip Support
Video adjustment Brightness, chroma, saturation, contrast and sharpness
Intelligente Function Lecturer Tracking	Student Locating

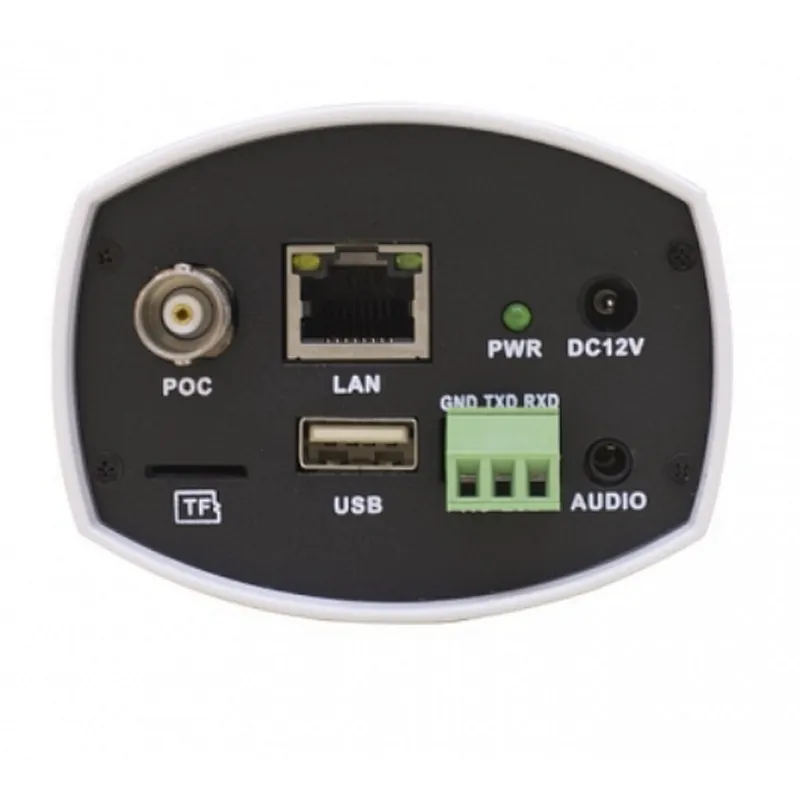

Interface
USB 1 X USB2.0
Network RJ45 10/100M, POE Supported
Audio 1 X LINE IN
USB
UVC Support
Image Compression MJPEG/H.264/H.265
Resolution 4KP30/25, 1080P30/25, 720P30/25, 360P30/25
Operating System Windows 7/8/10, Mac OS, Android OS
Network
Protocols HTTP/TCP/UDP/RTSP/RTMP/ONVIF
Protocols VISCA
Image Compression H.265 / H.264
Audio Compression AAC
More Stream Main stream, Sub stream, The third stream, The fourth steam
Resolution Max 4kP30 Main stream: 1080P30/25, 720P30/25, 360P30/25 Sub stream: 4KP30/25, 1080P30/25, 720P30/25, 360P30/25 The third stream: 720P30/25, 360P30/25 The fourth stream: 1080P30/25, 720P30/25, 360P30/25
General
Power DC 12V
Power Consumption Below 5W
Operating Temperature 0°C - +40°C
Storage Temperature -20°C - +60°C
Dimension(W X H X D) 149mm X 76mm X 58mm
Weight 0.42KG
