Features
※ H.265 video compression,dual stream
※ 1/3"CMOS,2.14MP
※ Up to 5x opitcal zoom
※ Support various control modes, including network, remote control, RS232 & RS485 control, and local button control
※ Support SDI and RJ45 output interface, can output 1080p images simultaneously
※ Support H.264 video compression, support up to 1080p30, and with low network latency
※ Support 2 audio inputs, with ACC audio compression
※ Compatible with HTTP, RTSP,RTMP, ONVIF protocols
Technical Specification
Model No. | ZC5-A2814N | ZC5-A0722N |
Camera | ||
Image Sensor | 1/3"CMOS, 2.14MP | |
Focal | 2.8mm - 14mm | 7mm - 22mm |
Effective Pixel | 1920 x 1080 | |
Optical Zoom | 5X | 3X |
Field of View | 98° - 40° | 33° - 15° |
Focus | Auto / Manual | |
Min.Illumination | 0.5Lux | |
White Balance | Auto | |
Exposure | Auto | |
Control Buttons | 5 | |
Video Output | 1080P30 / 1080P25 / 720P60 / 720P50 | |
Network | ||
Max.Image Size | 1920 x 1080@30fps | |
Video Compression | H.264 | |
Audio Compression | ACC | |
Protocol | HTTP / RTSP / RTMP / ONVIF | |
Dual Stream | Support | |
Simultaneous Users | up to 10 users | |
Ethernet Interface | 100M(RJ45) | |
Interface | ||
Video Interface | 3G-SDI | |
Audio Interface | 3.5mm Audio Interface(2 Line in / 1 Line out) | |
Comm.Interface | RS-232,RS-485 | |
General | ||
Protocol | VISCA | |
Power Supply | DC 9V-12V | |
Power Consumption | Below 5W | |
Working Temp | - 40°C - +60°C | |
Dimension | 149mm x 76mm x 58mm | |
Weight | 0.42kg | |
Color | White | |

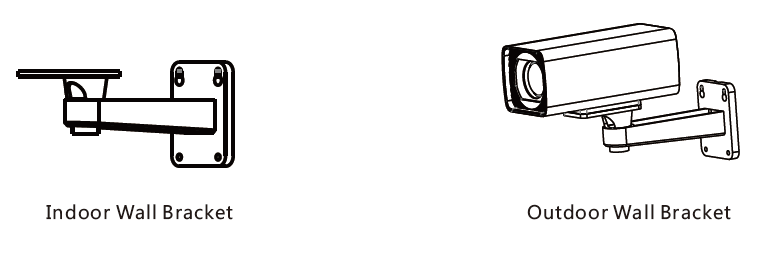

Accessories

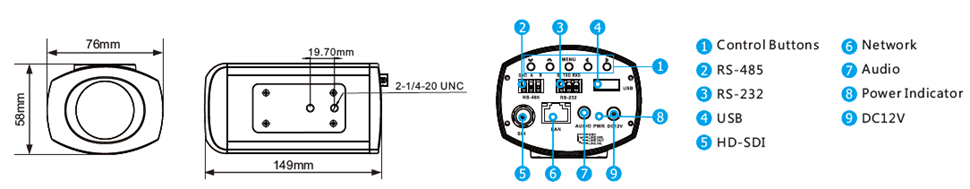

Dimensional Drawing
