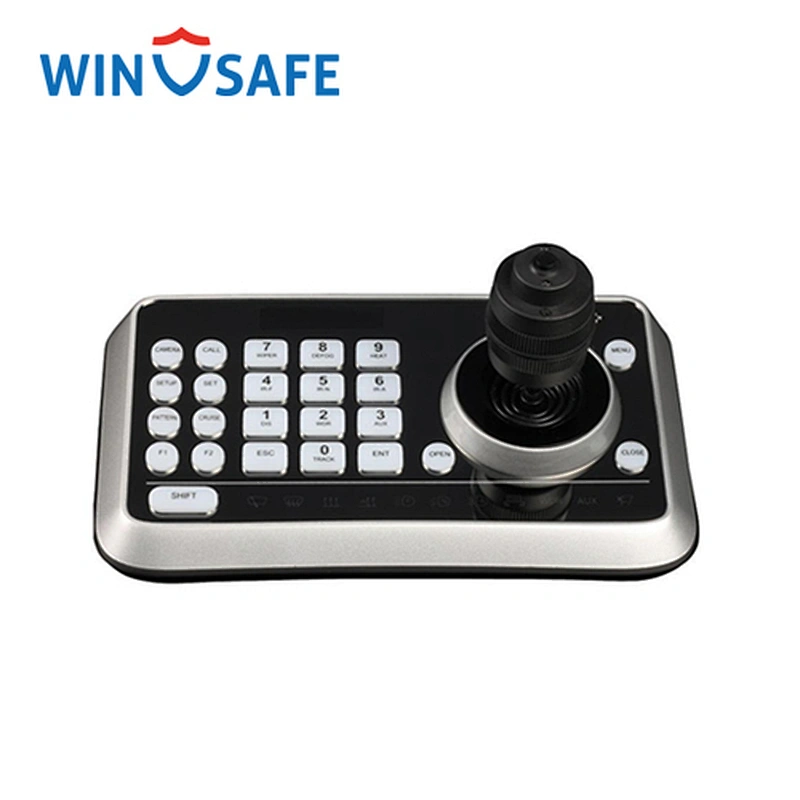

4D joystick PTZ Controller Support PELCO D/P VISCA protocols
4D joystick PTZ Controller Support PELCO D/P VISCA protocols

4D joystick PTZ Controller Support PELCO D/P VISCA protocols

Model NO.
CKB02
Price:
US $ 1.00-100.00 / piece
Delivery
FOB
Minimum order quantity
1 piece
Supply Ability
20000 piece / Month
Country of Origin
China
Stock Time
5-7 work days Days
Quantity:

Features

※ 4D joystick for pan/tilt/zoom/focus control,ergonomic design and excellent finishing


※ High brightness OLED display


※ Auto backlight keys


※ Shortcut keys customization


※ Sleep function


※ Batch program cameras in the systems


※ Multi-level password protection


※ Multi-baud rate and protocols


※ 256 address support PELCO D/P,VISCA protocols


※ Compact design with portable features

Model No.CKB-02
Comm.InterfaceRS-232,RS485
ProtocolPelco-D,Pelco-P,VISCA
Baud Rate2400bps,4800bps,9600bps,19200bps,38400bps
Address0～255
Joystick4-axis(Left/Right,Up/Down, Zoom in/Zoom out, Focus Near/Focus Far)
DisplayOLED
Power ConsumptionDC12V(±10%)/USB
Humidity≤90%(no condensation)
Power<2W
Working Temp 0°C - +40°C
Storage Temp -20°C - +50°C
Dimension200mm(L) x 120mm(W) x 103mm(H)
Weight0.5KG
  • Model Number：CKB02
  • Brand Name：WINSAFE
  • Place of Origin：China
