Features
※ IP66 Waterproof
※ Control basic features of PATC series thermal cameras
※ 3 axis joystick, OLED display
※ Two colors backlights
※ Support to customize keys
※ Control through both RS485 and Ethernet
Technical Specification
Model No. | MKB-01 |
Comm.Interface | RS485/Ethernet |
Protocol | Pelco-D,Pelco-P |
Baud Rate | 2400bps,4800bps,9600bps,19200bps |
Address | 0～255 |
Joystick | 3-axis, speed adjustable |
Display | OLED |
Power Consumption | <1.6W |
Humidity | ≤90%(no condensation) |
Power | <2W |
Working Temp | 0°C - +40°C |
Storage Temp | -20°C - +50°C |
Dimension | 141mm(L) x 90mm(W) x 117mm(H) |
Weight | 0.8KG |

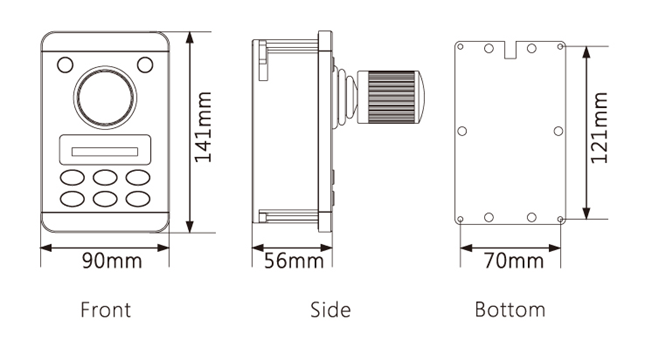

Dimensions
