Features
※ Support Onvif protocol,support multi-factory IP ptz.
※ 7 inch TFT LCD, resolution 1024*600.
※ Support 4CH video display.
※ upport 1CH 1080p video image decoding.
※ Support HDMI output.
※ Support PTZ operation, support preset,patrol,pattern setting and calling.
※ Imported 4Axis vector transmission joystick.
※ The protocol can be customized.
Technical Specification
| Model No. | CKB-20IP | |

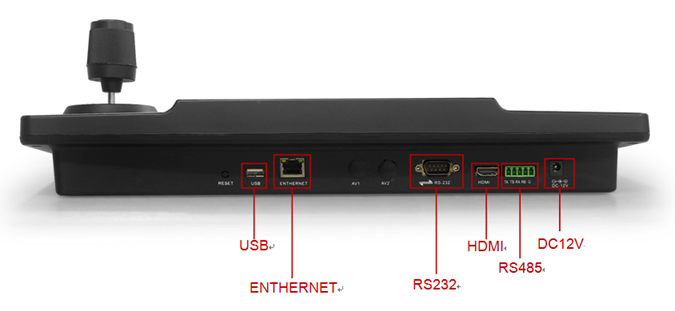

| RS485 | 1pcs 3.81 terminal spacing, TA. TB(not enabled) | |
| RS232 | DB9 mail head | |
| Ethernet | 1pcs Ethernet port RJ45 100M/1000M adaptive | |
| USB Port | 1pcs USB2.0 | |
| Display | 7 inch TFT LCD, resolution 1024*600 | |
| Protocol | Onvif, others can be customized | |
| Joystick | 4 Axis | |
| LCD Screen | 7 inch TFT | |
| Working Temperature | 0°C - 55°C / 14°F - 131°F | |
| Working Humidity | 20% - 80% frostless | |
| Storage Temperature | -10°C - 60°C / 14°F - 131°F | |
| Storage Humidity | 0 - 90% frostless | |

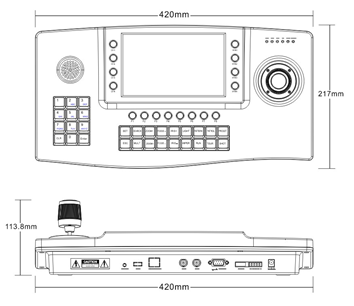

| Dimension | 490 x 265 x 170(mm) | |
| Power Supply | DC12V/2A | |
| Weight | 2.1kg | |
| Certification | CE, FCC, RoHs | |
| Warranty Time | One Year | |
