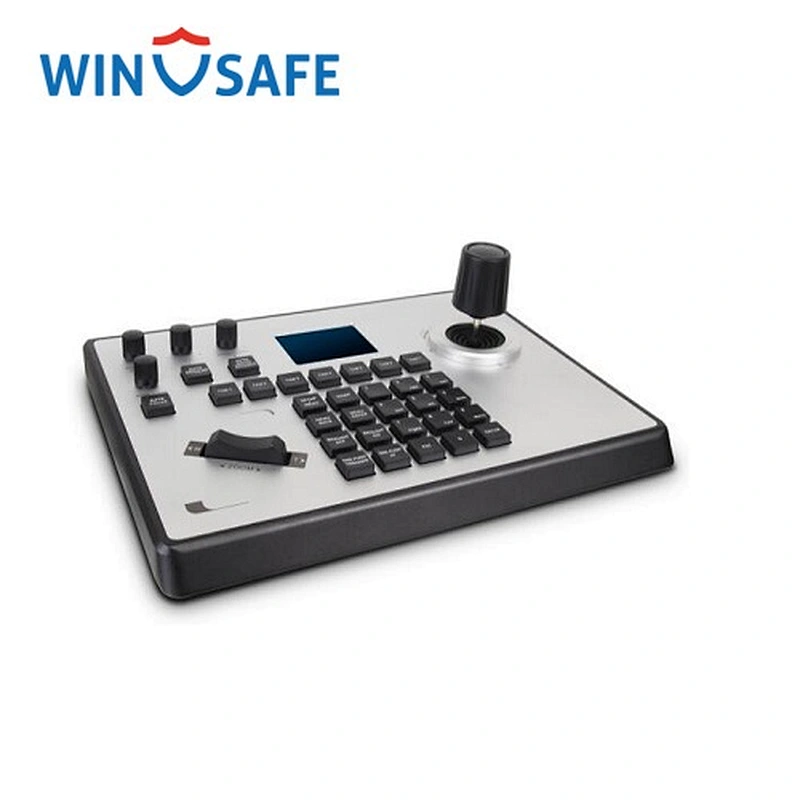

RJ45 Keyboard Controller For Video Conferencing Camera

Application

U2 The video conferencing keyboard can be used in various important conference venues, such as government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation, etc.Easy use to control video conference ptz camera

Product Overview

The U2 over adopts CNC aluminum panel, and the new design of the lower cover aluminum die-casting bottom shell has strong maneuverability, which effectively solves the problem that the current webpage operation video conference camera is inconvenient. The high-end atmosphere, unique surface oxidation treatment, the appearance is simple and beautiful; the industrial-grade LCD screen module has excellent display effect and the characters are delicate and clear. The U2 video conferencing keyboard supports VISCA and ONVIF protocols, and VISCA is fully compatible and extensible. The built-in web server makes the configuration interface simple and clear, and it is easy to operate. It only takes a few steps to achieve perfect control of the video conferencing camera

Features

※ Support IP version and Analog version at same time.
※ Support full VISCA,ONVIF,PELCO-P,PELCO-D protocol.
※ Support control the software function of the conference camera.
※ Support 4D joystick control ptz function.
※ Seesaw switch control zoom speed.
※ Support IE web setting.
※ Support 7 buttons for CAM1 to CAM7 ,fast switch easily.

Technical Specification

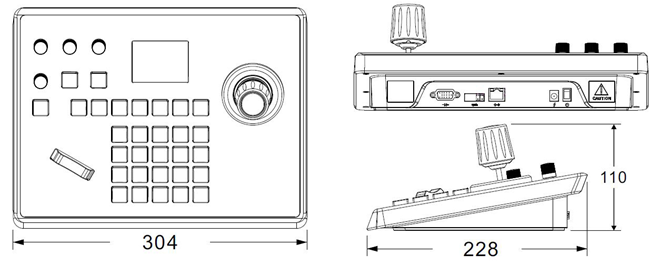

Product Dimension(mm)
