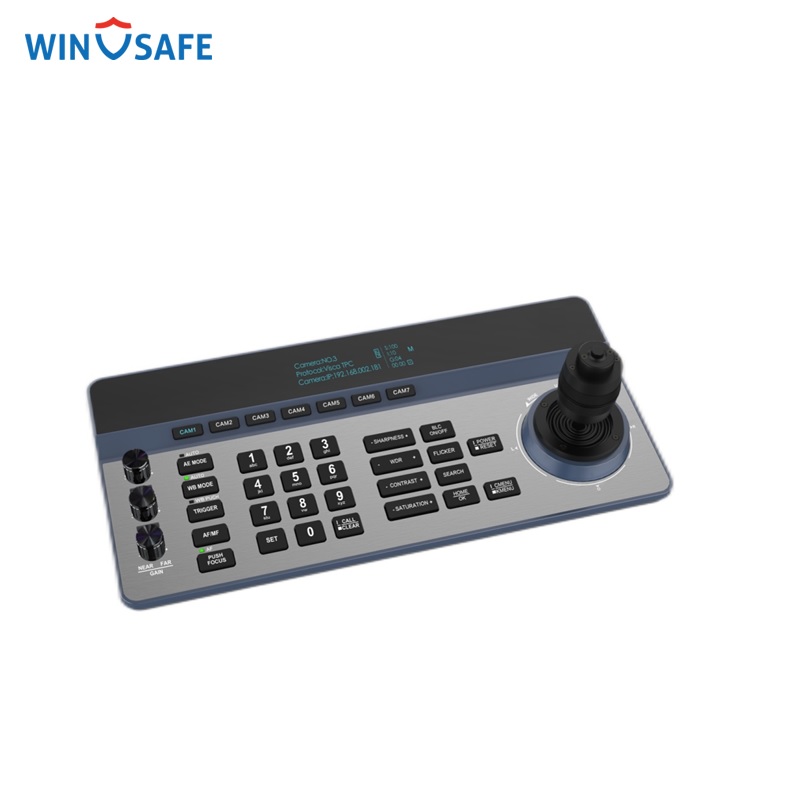

Application
CKB25 Series Control Keyboard are full-featured, easy operation control keyboard, support both network control and analog control, can be widely used for video conferencing, live streaming, broadcasting, video surveillance etc.
Strong Control Ability
※ Support multiple control ports: LAN, RS232, RS422 and RS485
※ Support multiple control protocols: Visca Serial, PELCO-P, PELCO-D, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, NDI etc.
※ Multiple cameras can be controlled via one keyboard, and one camera can be controlled via multiple keyboard as well
※ Adapts four-dimensional joystick to enable the control of the video camera PTZ movement smoothly and flexibly
※ With 3.12 inch OLED screen to display all setting information
※ Support to set different levels of operation premissions via OSD menu
※ Support buttons keys backlight, enable users to choose automatic backlight in low light or dard environment
※ Support to set, run or clear presets
※ Support daisy chain function
※ Support camera OSD menu setting
※ Support standard POE(Power over ethernet)
※ Support up to 7 cameras shortcut control buttons, to make camera conrol convenient and fast, improves switching speed between multiple cameras
※ Support 10M, 100M, 1000M adaptive network RJ45 connection
※ Support multiple control protocols: Visca Serial, PELCO-P, PELCO-D, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, NDI etc.
※ Multiple cameras can be controlled via one keyboard, and one camera can be controlled via multiple keyboard as well
※ Adapts four-dimensional joystick to enable the control of the video camera PTZ movement smoothly and flexibly
※ With 3.12 inch OLED screen to display all setting information
※ Support to set different levels of operation premissions via OSD menu
※ Support buttons keys backlight, enable users to choose automatic backlight in low light or dard environment
※ Support to set, run or clear presets
※ Support daisy chain function
※ Support camera OSD menu setting
※ Support standard POE(Power over ethernet)
※ Support up to 7 cameras shortcut control buttons, to make camera conrol convenient and fast, improves switching speed between multiple cameras
※ Support 10M, 100M, 1000M adaptive network RJ45 connection

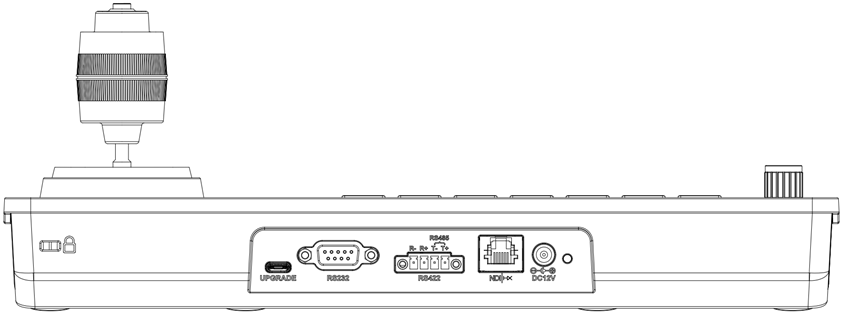

Input/Output Interface

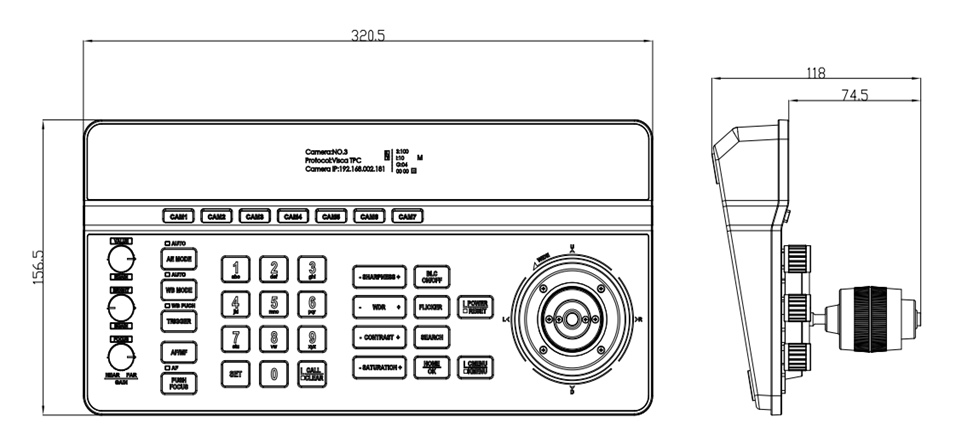

Dimension(unit:mm)
Technical Specification
Model No. | CKB-25IP | CKB-25IP(N)(Support NDI) |
Control Ports | RJ45, RS232, RS422, RS485 | |
RJ45 | Ethernet port, POE(IEEE802.3af) | |
RS232 | DB9 Male head | |
RS422 | 3.81 Spacing terminal, T+, T-, R+, R- | |
RS485 | 3.81 Spacing terminal, T+,T- | |
Control Protocols | VISCA Serial, PELCO P, PELCO D, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, NDI | |
Upgrade Port | Type-C | |
LCD Screen | 3.12 inch OLED sreen, blue light, 256 x 64 pixel | |
Working Power | 12V, 1A | |
Working Temperature | - 10°C - 50°C | |
Working Humidity | 20% - 80% | |
Storage Temperature | -20° - 60°C | |
Storage Humidity | 0 - 90% | |
Dimension | 320.5mm x 156.5mm x 118mm | |
Net Weight | 1.05kg | |
