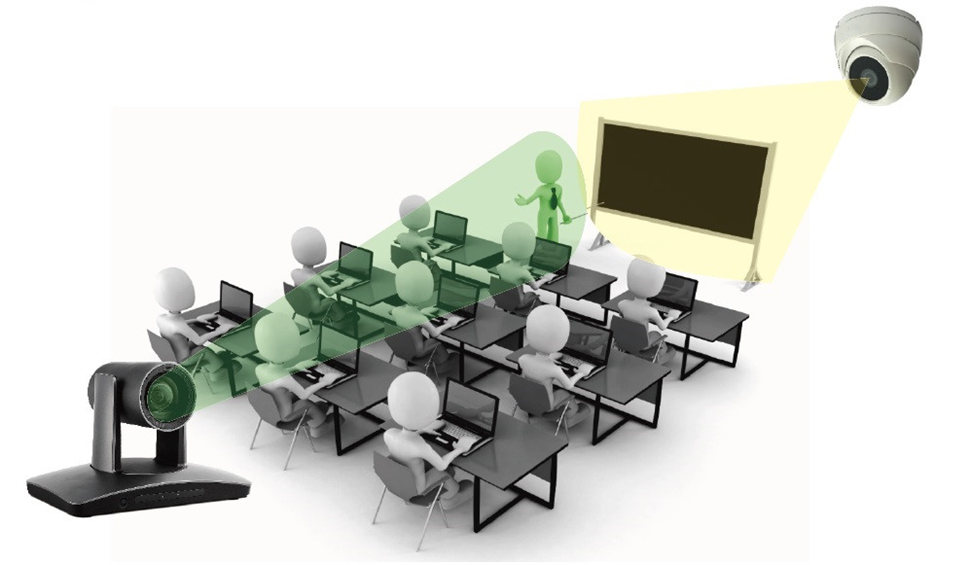

Board Writing triggers tracking When board writing detecting camera detects writing actions, it triggers the lecturer tracking camera to automatically move to pre-defined board postion and start tracking lecturer there, if undetected, tracking camera can either stay to return to pre-defined postion. IP Capability Both the lecturer tracking camera and board writing detecting camera support IP control and preview, detecting camera also supports POE. Free configuration software is provided together with device. Unmanned and standalone tracking Tracking performance is realized by the system itself, both its two lens manage the tracking algorithm, there is no need to have manual operation or have extra devices/sensors to assisst tracking. Precise lock and track capability Tracking is based on both face detection and motion detection technology, which ensures smooth and precise lock & track performance even in comprehensive scenarios. Able to output switched video Camera has built-in switching rule that can automatically switch its tracking and wide angle camera image based on lecturer's moving in/out of lecturing area, the switched video is outputted through one video channel. No."fish-eye"at full view lens The small full view lens of the tracking system addressed geometric distortion problem, it can be used as a standard image to shot lecturer area. Features | |||||
| ※ H.264 compression ※ Support dual stream to output both for full view and tracking image ※ Compatible with ONVIF,RTSP,RTMP protocols ※ Configuration of camera is realized by network ※ Come with face and motion detection tracking technology,precisely lock & track lecturer ※ Standalone tracking,there is no need to have extra devies/sensors ※ Both two lens can output up to 1080p30 images through network ※ Smart full view lens has addressed geometric distortion ※ Color and brightness of both the two lens are the same(only for LTC-A2001N) ※ When tracking, the camera image is automatically adaptive to lecturer's height ※ There is no limit to tracking zone,the camera can track lecturer all around the classroom ※ Smart tracking performance like auto zoom,tilt motion,free of interfering objects/lights | |||||

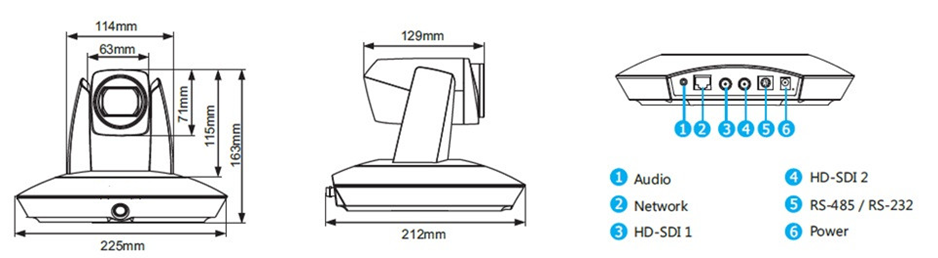

| Dimensional Drawing | |||||
 | |||||
| Technical Specification | |||||
| Model No. | LTC-A2001N | ||||
| Tracking Camera | |||||
| Image Sensor | 1/2.8"Exmor CMOS, 2.14MP | ||||
| Lens | f =4.7mm -94.0mm;F1.6 - F3.5 | ||||
| Zoom | Optical: 20X, Digital: 12X | ||||
| Field of View | 59.5° - 2.9° | ||||
| Focus | Auto, Manual, One push | ||||
| Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) | ||||
| Shutter Speed | 1/1 - 1/10,000s | ||||
| Gain | Auto/Manual | ||||
| White Balance | Auto, Indoor, Outdoor, One push, Manual, | ||||
| Exposure | Auto, Manual, Shutter Priority, Iris Priority | ||||
| S/N Radio | Above 50dB | ||||
| Full view camera | |||||
| Image Sensor | 1/2.8"Exmor CMOS | ||||
| Effective Pixel | 2.14mp | ||||
| White Balance | Auto | ||||
| Exposure | Auto | ||||
| Field of View | Horizontal:92°;Vertical:50°(before geometric distortion correction) | ||||
| Lens | 3.73mm | ||||
| PTZ | |||||
| Pan/Tilt Angle Range | Pan: -170° - +170° ; Tilt: -30° - +90° | ||||
| Pan/Tilt Speed | Pan: 0.1° - +120°/s ; Tilt: 0.1° - +90°/s | ||||
| Preset Number | 256 | ||||
| Network | |||||
| Max,Image Size | 1920x1080 | ||||
| Frame Rate | HD:50Hz:25fps(1920x1080) 50fps(1280x720); 60Hz:60fps(1920x1080) ,60fps(1280x720) | ||||
| Video Compression | H.264 | ||||
| Audio Compression | AAC | ||||
| Protocol | HTTP,RTSP,RTMP,TCP,UDP,ONVIF | ||||
| Dual Stream | Support | ||||
| Simultaneous Users | up to 10 users | ||||
| Ethernet | RJ45 connector, 100M | ||||
| Comm.Interface | RS-485, RS-232 | ||||
| Protocol | VISCA and PELCO-D | ||||
| General | |||||
| Power Supply | DC12V | ||||
| Power Consumption | ＜20W | ||||
| Working Temp | 0°C - +40°C | ||||
| Storage Temp | -20°C - +60°C | ||||
| Dimension | 226mm x 212mm x 163mm | ||||
| Weight | 1.96KG | ||||
| Color | Grey | ||||
| Technical Specification | |||||
 | |||||
