| Feature | |||||
| ※ Support Network control model, It has unique IP address. ※ Support ONVIF protocol, realize the control to PTZ. ※ Support Auto-search the ONVIF devices in LAN ※ Support Offline search & add devices. ※ Support Max 253pcs front-end equipments in one LAN. ※ Support many famous brand IP PTZ Coding, such as Hikvision, Dahua, TVT, Hanbang, XM, Jovision...etc ※ Support control IP PTZ to call and set Presets, zoom, focus, Iris, Tour etc. ※ Japan-Original 4D Joystick ※ LED displayer can display IP PTZ’s status info | |||||

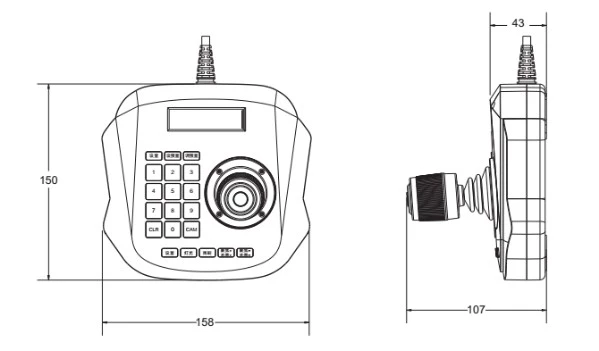

| Product Dimension(mm) | |||||
 | |||||
| Technical Specification | |||||
| Model No. | CKB-15IP | ||||
| Main Chip | Grain GM8126 | ||||
| RS485 | 1pc 3.81pin, TA,TB | ||||
| RS232 | 1pc DB9 male pin | ||||
| Ethernet | 1pc Ethernet, IEEE 802.11 b/g/n | ||||
| Protocols | Onvif 2.4 | ||||
| Power Supply | DC12V ± 10% | ||||
| Working Temperature | 0°C - 55°C / 15°F - 131°F | ||||
| Working Humidity | 20% - 80%(frostless) | ||||
| Storage Temperature | -20°C - 70°C / 14°F - 140°F | ||||
| Storage Humidity | Below 90%RH(frostless) | ||||
| Dimension | 158 x 150 x 107(mm) | ||||
| Weight | 1.21kg | ||||
| Certification | CE, RoHs | ||||
| Warranty Time | One Year | ||||
