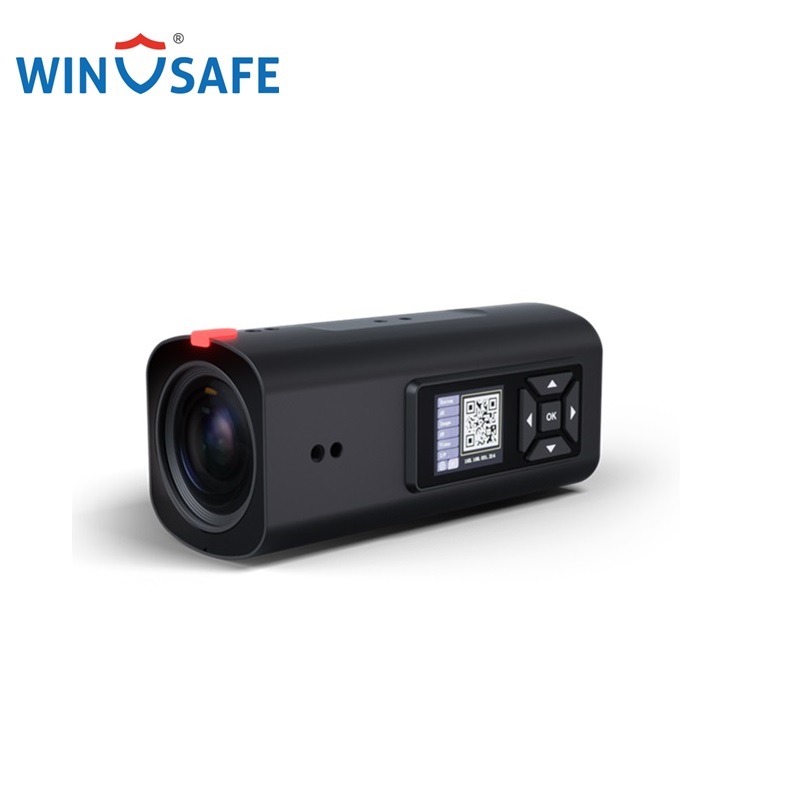

UHV-420F is a professional-grade 4K 60fps box camera with a 20x optical zoom, designed for a wide range of video production applications
This camera boasts an integrated color LCD screen with tactile controls, enabling direct on-camera adjustment of key parameters
With comprehensive connectivity options like NDI|HX3, SRT, RTMP and HDMI, it seamlessly integrates into any workflow. The camera supports professional audio inputs, including XLR with plantom power. Its robust chassis offers multiple mounting points for flexible rigging.
Advanced features include simultaneous 4K and 1080p cropped output. Dual Smart Tracking Modes(Auto Framing & Auto Tracking) .
Feature:
※ 4K UHD Resolution
Experience breathtaking detail and clarity with ultra-high-definition 4K(3840 x 2160) video at 60fps via HDMI. Our advanced image processing ensures lifelike images, even in low-light conditions.
※ 20X Optical Zoom
Capture every details with the 20x optical zoom lens. The 60 degree FOV and proprietary focusing algorithm deliver fast and precise focus performance, even during zoom and movement.
※ Perfect Color Match for Multi-Camera Productions
The camera solves color and visual inconsistency in multi-camera productions by using the camera high-quality lens, sensor and processor as the 4K 20X PTZ, ensuring a consistent look across fixed and PTZ setups.
※ One Camera Two Shot
When outputing at 1080P or lower resolution, the IP sub-steam(support RSTS/RTMP/SRT/NDI protocol) enables CROP output, allowing seamless switching between panoramic and CROP views via HDMI/USB interface
※ Dual Smart Tracking Modes(Auto Framing & Auto Tracking)
In CROP mode, two intelligent tracking options are available: Auto Framing & Auto Tracking dynamically adjusts the frame to keep the subject perfectlly centrered.Auto Tracking uses advanced AI algorithms to identify and follow the subjuct even in complex environments.
※ Side Control Panel for Key Image Parameters & IP Address
Quickly access and adjust essential image parameters and view the IP address directly on the camera's side panel, streamlining your workflow.
※ Versatile Output Options
Select the ideal 4K output --- NDI|HX3(4K30) or HDMI(4K60) --- to match your production requirements. Engineered for seamless integration, it effortlessly adapts to professional work flows.
※ Robust Audio Capabilities
Professional - grade audio inputs include a 3.5mm line-in and a Mini XLR input with plantom power support, ensuring compatibility with various microphones and audio equipment
※ Local Recording for Backup and Cloud Production
Record directly to a MicroSD card(up to 512GB) for instant backup, easy event review and seamless file upload to your preferred cloud platform
※ Seamless Camera Setup with SSDP
Simplify camera setup with SSDP integration. Easily find your camera's IP address on the local network, especailly in multi- camera setups
※ Embed the latest NDI|HX3 SDK
Leverage the power of Newtek's NDI|HX3 for plug-and-play compatibility with various live steaming products and platforms, creating diverse and engaging content
※ Program and Preview Tally
The buit-in indicator light functions as a tally light, providing clear visual feedback on live status when receiving tally notifications from NDI devices.
Technical Data
Model No. | UHV-420F |
Image Sensor |
Sensor | 1/1.8 inch, 9MP UHD CMOS sensor |
Zoom | 20x Optical Zoom |
Lens | f = 6.25mm - 112.5mm, F1.58 - F3.96 |
Horizontal View Angle | 60°(Wide) - 3.5°(Tele) |
Vertical View Angle | 34.1° - 1.9° |
Diagonal View Angle | 60.7° - 3.5° |
Minimum Working Distance | 1.0m |
S/N Ratio | ≥50dB |
Video Format | HDMI2.0:
3840*2160P60/59.94/50/30/29.97/25
1920*1080P60/59.94/50/30/29.97/25/24/23.98
1920*1080I60/59.94/50
1280*720P60/59.94/50/30/29.97/25 |
NDI|HX3
Main Steam: 3840*2160P15-30, 1920*1080P15-60; 1280*720P15-60; 1024*576P15-60
Sub Steam(CROP): 1920*1080P15-60; 1280*720P15-60; 1024*576P15-60; 640*360P15-60 |
USB2.0
NV12: 1920*1080P5; 1280*720P15; 800*448P30/25
YUY2: 1920*1080P5; 1280*720P15; 800*448P30/25
MJPG: 1080P60/50/30/25; 1280*720P60/50/30/25; 1024*576P60/50/30/25; 800*448P60/50/30/25 |
Image Parameters |
Noise Reduction | 2D & 3D |
Minimum Lux | 0.5Lux(50 IRE Max AGC, 1/30, F1.8) |
White Balance | Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature |
Expsosure | AutoManual/Shutter Priority/Iris Priority/Brightnes Priority |
Anti-Flicker | OFF, 50Hz, 60Hz |
Image Flip | Support |
Mirroring | Support |
Focus | Auto/Manual |
Iris | Auto/Manual |
Electronic Shutter | Auto/Manual |
Gamma | Support |
Backlight Compensation | Support |
IP Steaming |
Video Encoding | H.264/H.265 |
Bitrate Control | Variable bitrate(VBR), Constant bitrate(CBR) |
Bitrate Range | 1024Kbps - 61440Kbps |
Network Port Speed | 1000M |
Protocol | NDI|HX3, SRT, HTTP, RTST, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, NTP,
RTP Mulicast, WebRTC |
I/O Interface |
Control Port | RS232, RJ45 |
Video Port | NDI|HX3, HDMI2.0, USB Type-A |
Audio Port | Stereo 3.5mm linear inputs, mini XLR |
Tally | Support |
POE | Support |
General |
Input Voltage | DC12V, POE+(IEEE802.3at) |
Operating Temperature | -10°C - 50°C |
Operating Humidity | ≤80% |
Color | Black |
Dimension(L x W x H) | 82mm x 85.3mm x 186.5mm |
Net Weight | 0.95kg(2.09LBS) |
