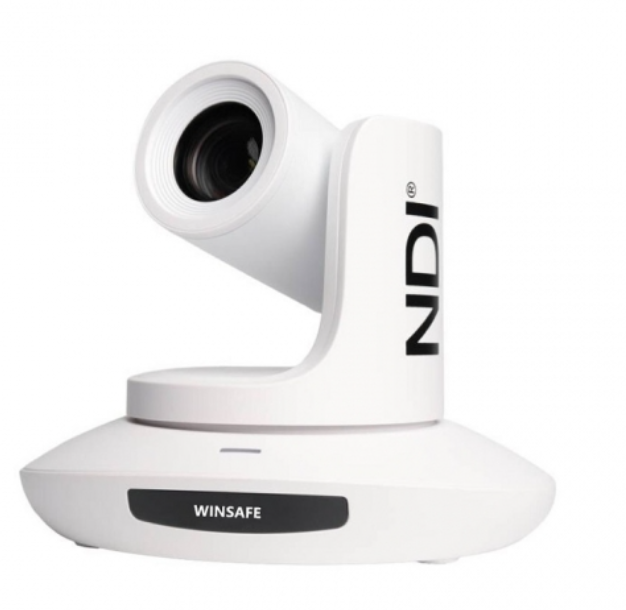

UHV-20X-IP-S(FNDI) is integrated with Telycam’s custom NDI® Silicon chip, with latest NDI ® 5, to provide impressed high quality image at low bandwidth. A single cable enables power, video, control and Tally. 1080p60, 20x Optical Zoom, NDI®, HDMI, 3G-SDI, USB2.0 Output, SRT, RTMP/RTMPS supported.
Feature
※ 1080p60 FHD video resolution
※ 20x Optical Zoom
※ NDI ®, HDMI, 3G-SDI, USB2.0 video interface, Line in audio interface
※ NDI® 5 Integrated
※ SRT supported
※ Power over Ethernet
1080p60 Full HD Resolution
UHV-20X-IP-S(FNDI) is equipped with the most advanced image processing SoC and 1/2.8-inch 2.4MP image sensor, to achieve smooth, sharp and crystal-clear FHD 1080p60 images, even in low-light working environment.
20X Optical Zoom
Shooting with 20X optical zoom &4X electronic digital zoom and a 60° horizontal angle of view.
NDI® 5 Integrated
High bandwidth NDI® transmits full HD video at a maximum of 125Mbps, enabling high-quality, low-latency live video transmission. With high bandwidth NDI, UHV-20X-IP-S(FNDI) performs high image quality and low latency for live video production
3G-SDI/HMDI/USB2.0 Available
In addition to NDI® , 3G-SDI, HDMI and USB2.0 output image simultaneously as well. 3G-SDI and HDMI are for conventional video production workflow, USB output can be used as a high-end webcam.
Smooth and Quiet PTZ Movement
Perform real-time pan, tilt, and zoom camera movements with motor-driven PTZ camera control and configurable preset positions.
SRT supported
SRT enables the delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over the worst networks.
Specification
Model No. | UHV-20X-IP-S(FNDI) |
Camera |
Sensor | 1/2.8"2.4egapixelCMOS Sensor |
Video System | Full NDI ® | 1920*1080@3~60；1280*720@3~60; 1024*576@3~60; 640*360@3~60（Low bandwidth Mode） |
HDMI | 1920*1080P60/59.94/50/30/29.97/25; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25 |
3G-SDI | 1920*1080P60/59.94/50/30/29.97/25; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25 |
USB2.0 | YUY2： 1280*720@15; 1024*576@20; 640*480@30 |
(Type-C) | MJPG： 1920*1080@30; 1280*720@30; 1024*576@30; 640*480@30 |
Video Output Interface | NDI ®, HDMI，3G-SDI， USB2.0(Type-C) |
Audio Input Interface | Dual 3.5mm Linear inputs |
Sensor | 1/2.8 inch, 2.4MP CMOS Sensor |
Zoom | 20x optical zoom + 4x digital zoom |
Horizontal View Angle | 60°(Far) - 3.2°(Tele) |
Focal Length | F4.9 - 98mm |
Aperture | F1.5 -3.0 |
Pan/Tilt Rotation | Pan:±170°； Tilt：-30°~+90° |
Pan/Tilt Speed | Pan：0.1°-120°/s； Tilt：0.1°-80°/s |
Preset | 10 for IR remote control, 128 for serial control, accuracy: 0.1° |
Control Interface | RS232、RS485、RJ45 (VISCA over IP)、USB2.0(UVC1.1) |
Network Speed | 1000M |
Encode | H.264/H.265 |
Rate Control | Variable rate, constant rate |
Video Bitrate | 1024Kbps~16384Kbps |
Protocol | TCP/IP， HTTP， RTSP， DHCP， RTMP， ONNVIF， VISCA over IP(TCP&UDP)， HTML5， VISCA， PELCO P/D， NDI |
POE+ | Supported |
Daisy Chain | RS232 daisy chain control |
Minimum Illumination | 0.1lux |
White Balance | Auto/Manual/Auto Track/One-Push/Outdoor/Indoor |
Exposure | Auto/Manual/Shutter Priority/Aperture Priority/Brightness Priority |
Focus Control | Auto/Manual |
Iris Control | Auto/Manual |
Shutter Control | Atuo/Manual |
Gamma | Support |
WDR | Support |
Back Light Compensation | Support |
2D Noise Reduction | Support |
3D Noise Reduction | Supports |
Anti-Flicker | OFF/50Hz/60Hz |
Up-Side Down | Support |
Input Voltage | DC12V/POE+(IEEE802.3at) |
Dimension | 220mm x 173mm x 190mm |
Color | Black/White/Sliver/Grey |
Net Weight | 1.35kg |
Accessory | Power supply adaptor, power supply cord, 3m Type-C cable, operation manual, guarantee card, certificate of conformity |
