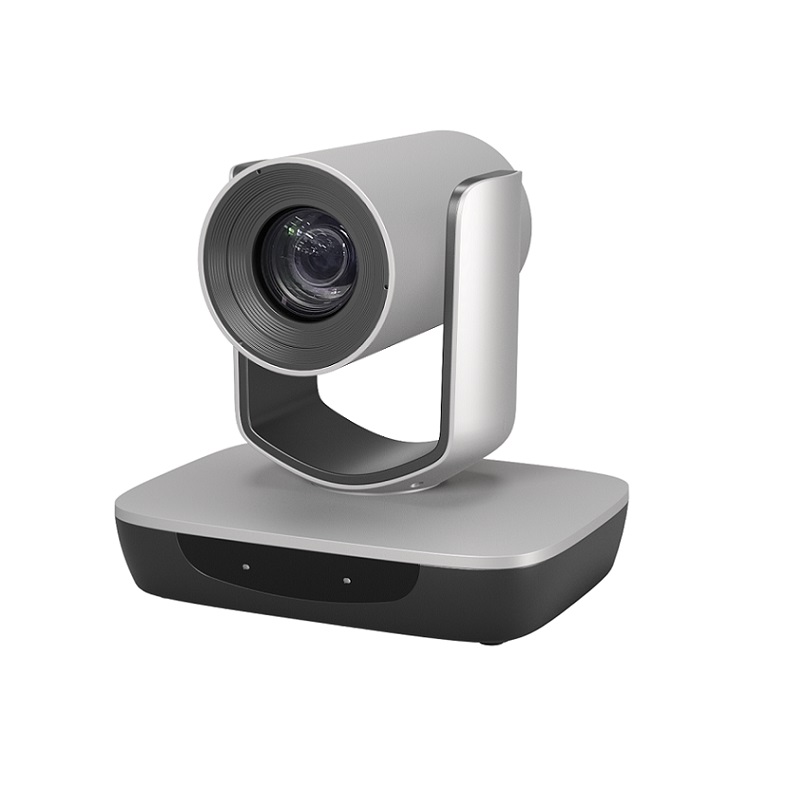

NDI HX3 1080P HD IP PTZ Camera With Tally Lamp

NDI HX3 1080P HD IP PTZ Camera With Tally Lamp

Model NO.: AMC-(N)G320P

Quantity:

Product Description

Features:

• 20x optical zoom, up to 1080P60 resolution, support 59.94/29.97 frame rate;
• Compact and compact appearance design with prominent Tally lamp auxiliary prompt;
• Network protocols support SRT, ONVIF, RTMPS, VISCA OVER IP;
• Support NDI HX3, WEB UI;
• With HDMI, Network, 3G-SDI and USB3.0 video output interface, support POE;
• Control Interface support RS-232 IN, RS-485/422;
• Support large collaboration spaces such as classrooms, halls, live streaming events, etc;
• Compatible with mainstream video conference hosts on the market;
• Tally lamp supported.

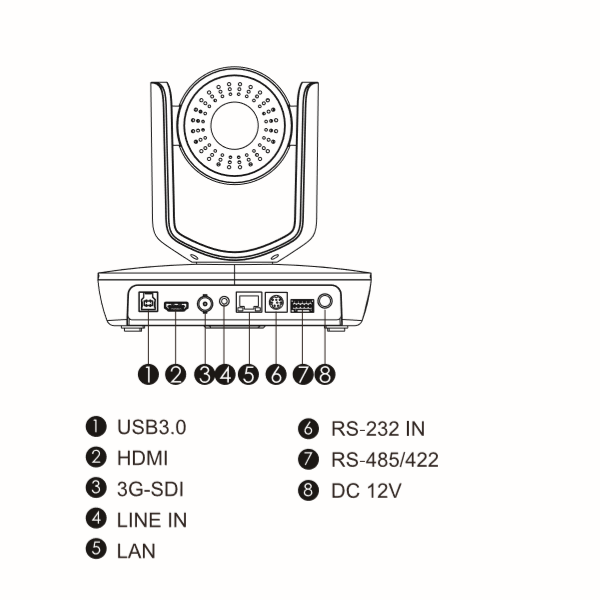

Interface

Specification

Model	AMC-(N)G330P	AMC-(N)G320P
Camera
Image Sensor	1/2.8"CMOS, 2.14 MP
Optical Zoom	30x	20x
Lens	f=5.2~155.8mm; F1.8~4.8	f=4.7~94.0mm; F1.6~3.5
HFOV	59°~ 1.2°	59.5°~ 2.9°
Digital Zoom	16x
Focus System	Auto, Manual, PTZ Trigger, One Push Trigger
Exposure Control	Auto, Manual, Shutter Priority, Iris Priority, Bright Priority
Min. Illumination	50Lux
Shutter Speed	1/50 ~1/10,000s
AGC	Auto, Manual
White Balance	Auto, One Push, Manual, Static Color Temperature
SNR	50dB
Menu	Yes
PTZ
Pan	-170° ~ +170°; 0.1° ~ 120°/s
Tilt	-30° ~ +90°; 0.1° ~ 90°/s
Preset Number	256 (Network)
Image Flip	Support
Interface
HDMI	Video Format: 1080P60/P50/P30/P25,720P60/ P50/P30/P25 Broadcast resolution: 1080P59.94/P29.97, 720P59.94/P29.97
Network	1×10M/100M RJ45 (POE) Image Compression: H.265, H.264 Audio Compression: AAC, G.711 Protocols: ONVIF/RTSP/RTMP/SRT/TCP/ UDP/RTMPS/ VISCA OVER IP Video Output Format: 1080P60/P50/P30/P25; 720P60/P50/P30/P25; 360P60/P50/P30/P25 Support multiple stream Support NDI HX3
USB	1×USB 3.0 Type-B, UAC Audio Format PCM, USB3.0 Compatible with USB2.0 1.Support UVC1.1. 2.UVC Video Format Support: H.264/H.265/MJPEG, 1080P60/P50/P30/P25, 720P60/P50/P30/P25, 480P60/P50/P30/P25, 360P60/P50/P30/P25; YUY2/NV12, 1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25; USB3.0: 1080P30/P25, 720P60/P50/P30/P25, 480P60/P50/P30/P25, 360P60/P50/P30/P25; USB2.0: 1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25;
Audio Input	1×LINE IN 3.5mm
Control Interface	1 × RS-232 IN, 1 × RS485/422
Power	DC12V
Remote Interface	IR Remote control
Display Interface	Supports red and green dual color Tally lamps
General
Power	DC12V;<5W
Control Protocol	VISCA
Operating Temperature	0°C ~ +40°C
Storage Temperature	-20°C ~ +60°C
Dimensions(L×W×H)	176mm×137mm×171mm
Weight	＜1.2kg
