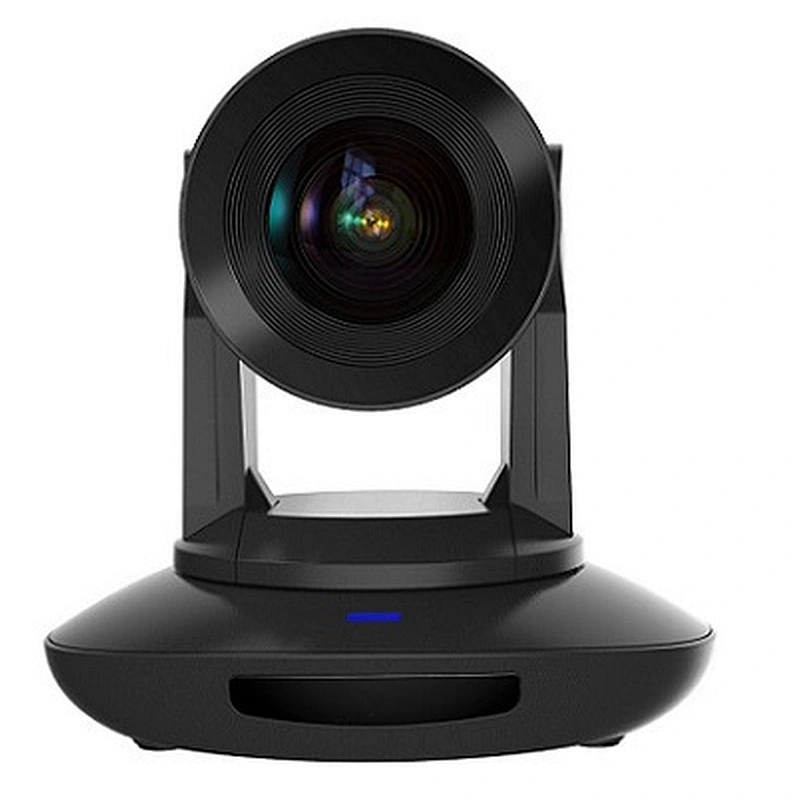

IP+3G-SDI+HDMI+USB3.0 30X Full HD PTZ Video Camera

Features:

※ Adopts most advanced ISP, 1/1.7"inch 12MP sensor, providing high definition and crystal clear video resolution
※ 30X optical zoom and 3x digital zoom, with 60 degree field of view
※ 1080p60 FHD video over IP, H.264,H.265 encoding
※ IP, HDMI, 3G-SDI, USB outputs, fit for different application
※ WDR, 3D Noise Reduction feature
※ Support POE: one single CAT5/6 to get video, control and power supply
※ Special Focusing Algorithm: fast and precise focusing performance when zooming or moving
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ 128 presets
※ Standard Sony Visca,IP VISCA, Pelco-P, Pleco-D control protocol,IP VISCA over both TCP and UDP
※ Daisy chain supported
※ Image flip function, support upside-down installation
※ Supplied with functional IR remote controller, can set IP address via OSD menu
※ Support multiple browsers to view video such as IE, Chrome, Firefox, Safari in both Mac and Windows system

Specification


Model No.	UHV-30X-IP-S
Camera
Sensor	1/1.7", 12mega pixel high quality Sony CMOS sensor
Video System	HDMI	SDI	IP	USB3.0
	1920x1080p60/59.94/50/30/29.97/25/24 1920x1080i60/59.94/50 1280x720p60/59.94/50/30/29.97/25	1920x1080p60/59.94/50/30/29.97/25/24 1920x1080i60/59.94/50 1280x720p60/59.94/50/30/29.97/25	Main Steam: 1920x1080p60 Sub Steam: 1280x720@60 1024x576@30 640x480@30	USB3.0: 1920x1080p60/50/30/25 1280x720p60/50/30/25 1024x576p30 USB2.0 1024x576p30, 960x540p30 640x360p30, 512x288p30
Zoom	30x optical zoom
FOV	2.02°(near) - 60°(far)
Min. Focus Distance	Wide: 0.3m       Tele:1.5m
Preset	10 via remote controller: 128 via serial port; preset precision: 0.1°
Rotation Angle	Pan: -170° - +170°; Tilt: -30° - +90°
Rotation Speed	Pan:0°  - 120° /s; Tilt: 0° - 80°/s
Control Port	RS232/RS485/RJ45/USB3.0
Video Port	HDMI/RJ45/SDI/USB3.0/USB2.0
SNR	50dB
Noise Reduction	2D & 3D
SNR	Above 50dB
Minimum Lux	0.01Lux
Focal Length	f=5.8(near) - 174mm(far)
White Balance	Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor
Anti Flicker	50Hz/60Hz/OFF
D/N Mode	Supported
Gamma	Supported
Mirror Image	Supported
Pan/Tilt Flip	Supported
IRIS	Auto/Manual
Electronic Shutter	Auto/Manual
BLC	Auto/Manual
Focus	Auto/Manual
Network Speed	1000M
Video Encoding	H.264/H.265
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps - 30720Kbps
Frames	50HZ: 1fps - 50fps; 60HZ: 1fps - 60fps
IP Protocol	TCP/IP, HTTP, RTSP, RTMP,ONVIF, DHCP, VISCA over IP(TCP&UDP), HTML5
POE	Supported
Input Voltage	DC12V,2A
Dimension	220mm x 173mm x 190mm
Net Weight	1.25KGS(2.8LBS)

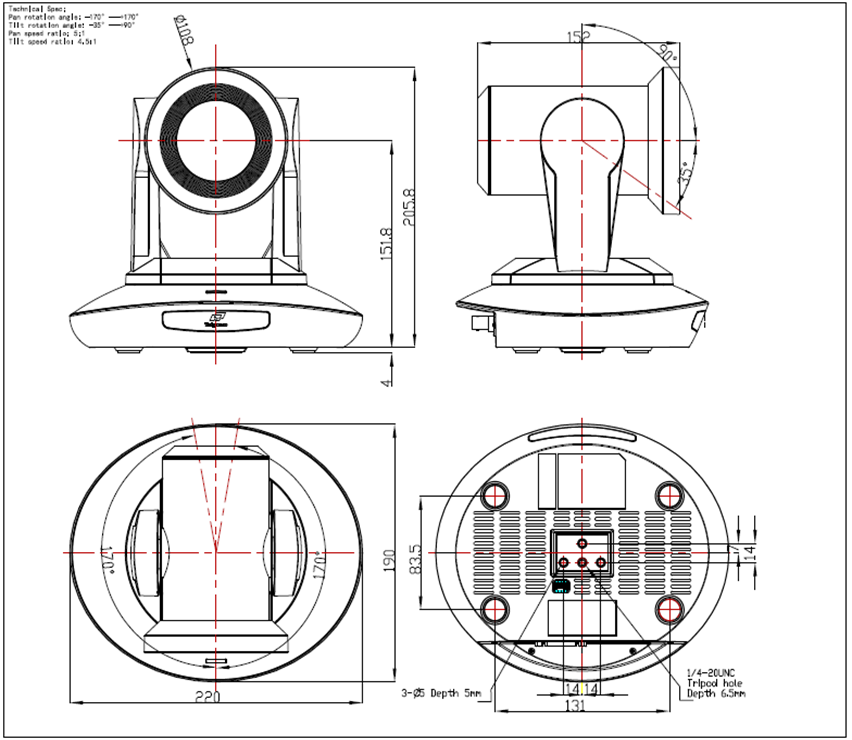

Dimension drawing

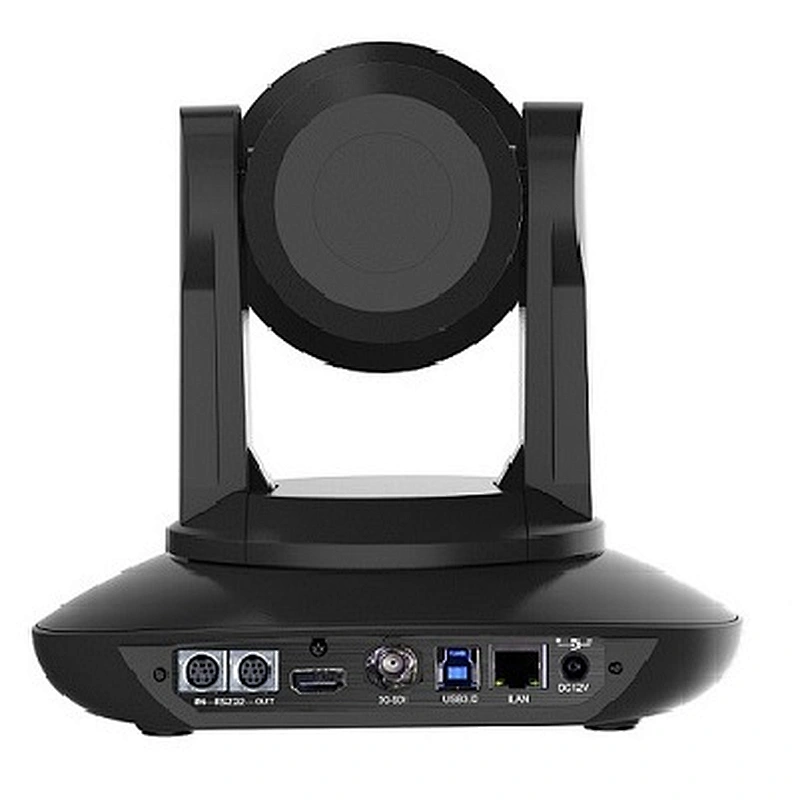

Interface
