Feature
※ H.265 video compression,dual stream
※ Compatible with ONVIF,RTSP.RTMP protocols
※ 72.5°FOV,12X Optacal zoom,12X digital zoom
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,
※ Special mechanical PTZ driving system,ensure precise positioning
Technical Specification
Model No. | AMC-E200N |
Image Sensor | 1/2.8"Exmor CMOS, 2.14MP |
Video Standard(HD) | 1080p/60,1080/30,1080i/60,720p/60,720p/30,1080p/50,1080p/25,1080i/50,720p/50,720p/25 |
Focal | f = .3.9mm -46.8mm |
IRIS | F1.6 - F2.8 |
Zoom | Optical: 12X, Digital: 12X |
Field of View | 72.5° - 6.3° |
Focus | Auto, Manual, PTZ Trigger AF, One push |
Min.Illumination | 0.5Lux(Color), 0.1Lux(B/W) |
Shutter Speed | 1/1 - 1/10,000s |
AGC | Auto/Manual |
White Balance | Auto, Indoor, Outdoor, One push, Manual, Automatic tracking, Sodium, Fluorescent |
AE Control | Auto, Manual, Shutter Priority, Iris Priority,Intelligence |
BLC | Yes |
WDR | Yes |
Noise Reduction | 2D/3D |
PTZ | |
Pan Range | -170° - +170° |
Tilt Range | -30° - +90° |
Pan Speed | 0.1° - +120°/s |
Tilt Speed | 0.1° - +80°/s |
Preset Number | 256 |
OSD | Yes |
Image Flip | Yes |
Network | |
Max,Image Size | 1920x1080 @60fps |
Frame Rate | HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080) |
Video Compression | H.265,H.264 |
Audio Compression | AAC |
Protocol | HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF |
Dual Stream | Support |
Simultaneous Users | up to 10 users |
Interface | |
HD Video Output Interface | DVI-D,HD-SDI |
Control Interface | RS-232IN/IR, RS-232OUT/RS-485 |
Ethernet | RJ45,100M |
General | |
Control Protocol | VISCA and Support Daisy Chain, PELCO-D, PELCO-P |
Address | 0 - 63 |
Power Supply | DC12V |
Working Temp | 0°C - +40°C |
Storage Temp | -20°C - +60°C |
Dimension | 243mm x 145mm x 163mm |
Weight | 1.2KG |
Color | Grey |

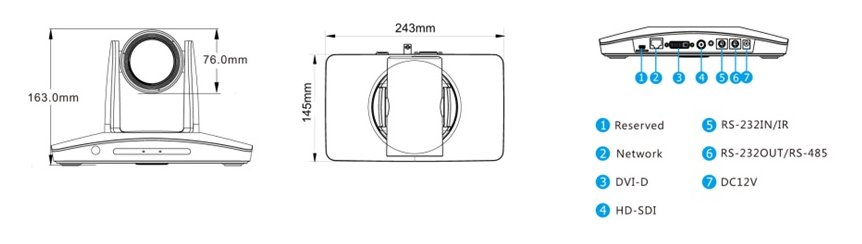

Dimension
