Feature
※ Adopts most advanced DSP,1/2.8"inch 5MP sensor
※ 12x Optical Zoom + 2x digital zoom, with 72.5°field of view
※ 1080p60 video over IP, and support H.264, H.265 encoding
※ Support POE: easy to use one RJ45 cable to get video, control and powere supply
※ IP, HDMI,SDI, USB outputs, fit for different application
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ Special focusing algorithm: fast and precise fosucing performance when zooming or moving
※ WDR, 3D Noise Reductaion feature
※ Standard IP Visca, Serial Visca, Pelco-P/D control protocol, IP Visca over TCP/UDP
※ Supplied with funcation IR remote controller, can set IP address via OSD menu
※ Automatic access to the IP address
※ 128 presets
※ Image flip function, support upside-down installation
※ Support daisy chain feature
Technical Specification

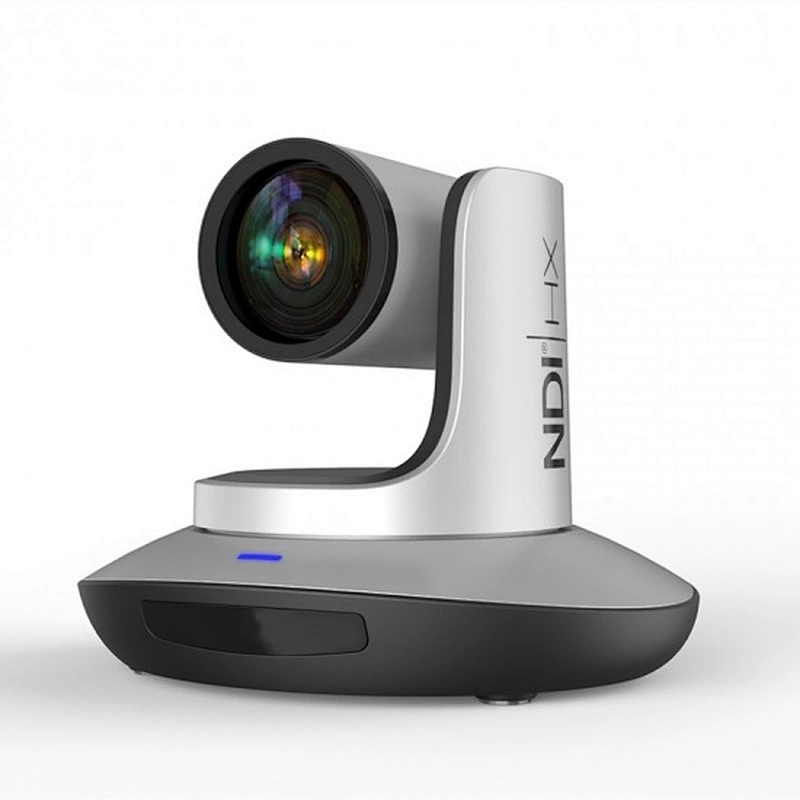

Model No. | UHV-12X-IP-S(FPGA) |
Camera |
Sensor | 1/2.8 inch, 5Mega Pixel High Quality CMOS sensor |
Video System | HDMI | SDI | IP | USB3.0 |
1080p60/59.94/50/30/29.97/25/24
720p60/59.94/50/30/29.97/25
1080i60/59.94/50 | 1080p60/59.94/50/30/29.97/25/24
720p60/59.94/50/30/29.97/25
1080i60/59.94/50 | Main Steam:
1920x1080p60
Sub Steam:
1280x720,704x576,640x480,352x288 | 1080p60/50/30/25
720p60/50/30/25
USB3.0&USB2.0
1024x576p30
960x540p30
640x360p30
352x288[30 |
Zoom | 12x optical zoom & 2x digital zoom |
View Angle | 6.3°(wide) - 72.5°(tele) |
Focal Length | f=3.92(wide) - 47.32mm(tele) |
Preset | 10 via remote controller: 128 via serial port; preset precision: 0.1° |
Noise Reduction | 2D & 3D |
SNR | Above 50dB |
Minimum Lux | 0.01Lux |
White Balance | Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor |
Anti Flicker | 50Hz/60Hz/OFF |
D/N Mode | Supported |
Gamma | Supported |
Mirror Image | 0.01Lux |
IRIS | Auto/Manual |
Electronic Shutter | Auto/Manual |
BLC | Auto/Manual |
Focus | Auto/Manual |
Mechanisam |
Rotation Angle | Pan: -170° - +170°; Tilt: -30° - +90° |
Rotation Speed | Pan:0° - 120° /s; Tilt: 0° - 80°/s |
Pan Tilt Flip | Supported |
Control Port | RS232/RS485/RJ45 |
Video Port | HDMI/RJ45/SDI/USB3.0/USB2.0 |
SNR | 75dB |
Encode |
Network Speed | 1000M |
Video Encoding | H.264/H.265 |
Bit Rate Control | Variable Bit Rate, Constant Bit Rate |
Video Bit Rate | 1024Kbps - 30720Kbps |
Frames | 50HZ: 1fps - 30fps; 60HZ: 1fps - 30fps |
IP Protocol | TCP/IP, HTTP, RTSP, Onvif,DHCP |
POE | Supported |
Input Voltage | DC12V,2A |
OSD Menu |
Language | English/Chinese |
Dimension(W x H x W) | Auto/Manual |
Dimension | 220mm x 173mm x 190mm |
Net Weight | 1.25KGS(2.8LBS) |
Package | 320mm x 300mm x 310mm |
Warranty |
Basic Warranty | 2 Years |
