● Portrait shooting mode as default. Switch between portrait mode and landscape mode does not cause video loss ● 2.07MP CMOS, up to 1080P60 output ● 10X optical zoom with 16X digital zoom, ideal for both full view and close-up shots ● Time of Fly(TOF) aux focus, fast focus of objects in short distance ● Tally light to indicate camera switch during steaming ● USB3.0(compatible with USB2.0) Type-C, supports simultaneous audio and video outputs, Plug-N-Play ● HDMI supports direct output of raw 1080P60 video output ● 2.4G wireless remote

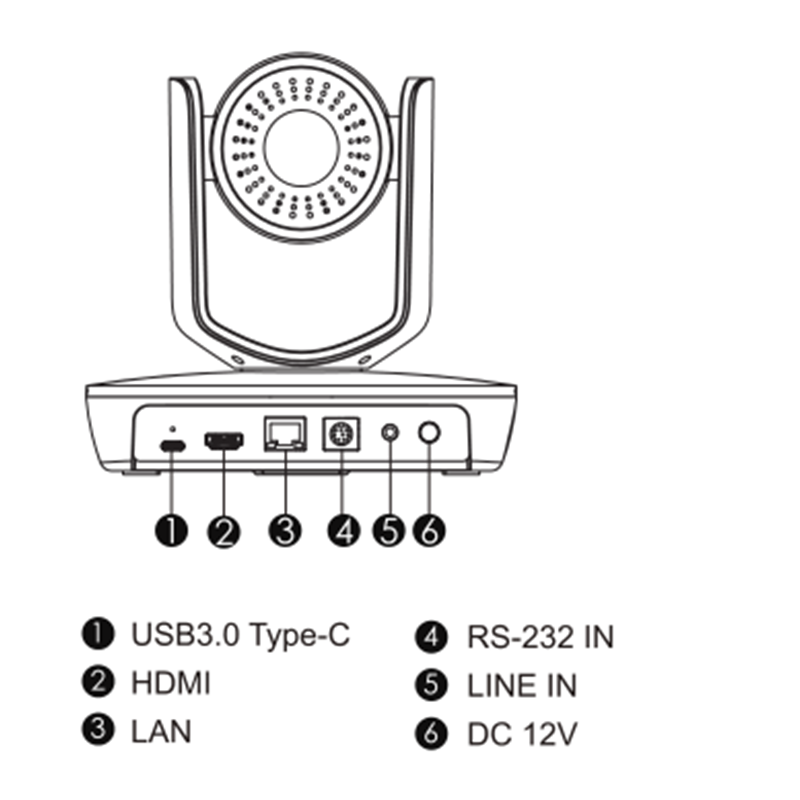

Interface
Specification
Model

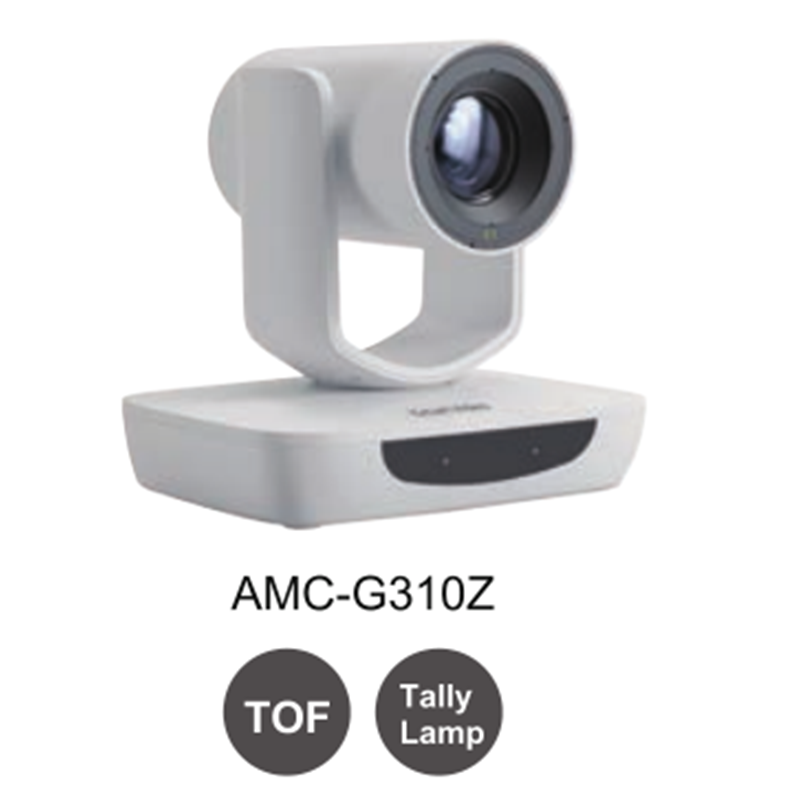

AMC-G310Z
Camera
Image Sensor
1/2.8"CMOS, 2.07MP
Focal Length
f=4.32 -40.9mm
Iris
F1.76 - F3
Opptical Zoom
10X
Digital Zoom
16X
HFOV
V: 71°; H:40.2°
Focus
Auto, Manual, PTZ Trigger, One Push Trigger
Shutter Speed
1/30 - 1/10000s
AGC
Auto, Manual
White Balance
Auto, Manual, One Push Trigger, Auto Tracking
AE Control
Auto, Manual, Shutter Priority, Iris Priority
SNR
Above 50dB
Others
Aux Focus
TOF Assisted Focusing
Remote
15m, 360° Wireless remote control
Firmware Upgrade
USB
PTZ
Pan Angle
-170° - +170°
Tilt Angle
-30° - +90°
Pan Speed
0.1° - 100°/s
Tilt Speed
0.1° - 90°/s
Preset Number
64(LAN)
Interface
USB
USB3.0(compatible USB2.0) Type-C, power over USB 1. UVC Support UVC1.1 2. UVC Support YUY2/NV12: 1080P30/P25, 720P60/P50/P30/P25, 360P60/P50/P30/P25 3. H.264/H.265/MJPEG: 1080P60/P50/P30/P25, 720P60/P50 4. UAC Audio format PCM
HDMI
1 x HDMI, support audio output, 1080P60/P50/P30/P25, 360P30/P25
