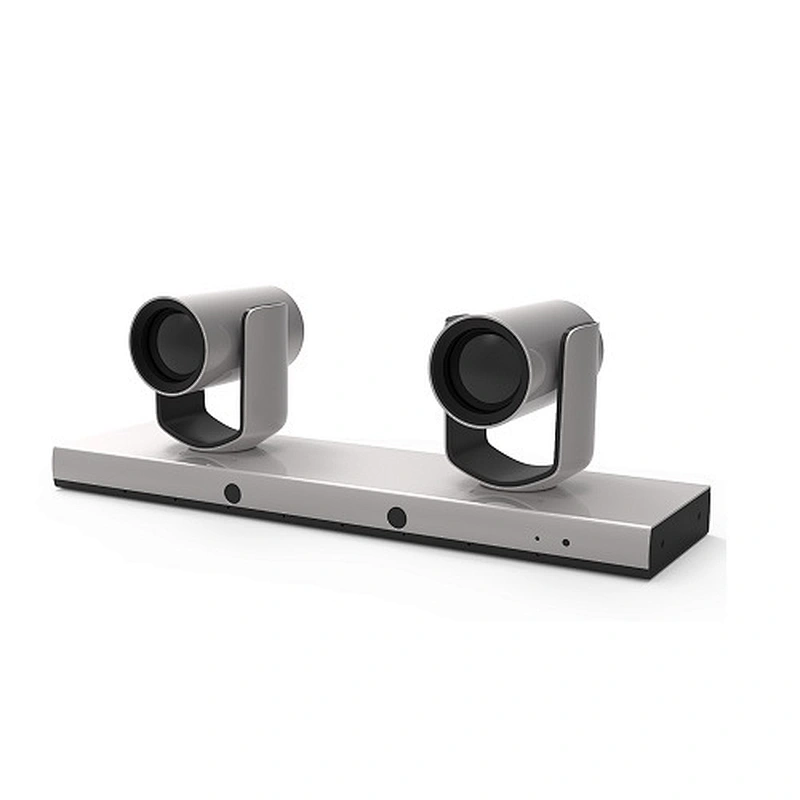

Speaking Tracking Dual Lens PTZ Video Conference Camera

Model No.

AMC-G200T

HD Camera

Image Sensor

1/2.8"CMOS, 2.14MP

Signal Format(SDI)

1080p60/1080p50/1080p30/1080p25/1080i60/1080i50/720p60/720p50

Focal

f=3.9mm-46.8mm

Iris

F1.6-F2.8

Optical Zoom

12x

Digital Zoom

12x

Field of View

72.5 ° - 6.3°

Focus

Auto, Manual, PTZ Push, One Push

Min.Illumination

0.5Lux(Color), 0.1Lux(B/W)

Shutter Speed

1/25 - 1/10,000s

AGC

Auto/Manual

White Balance

Auto, Indoor, Outdoor, One Push, Manual, Auto Track

AE Control

Auto, Manual, Shutter Priority, Iris Priority

S/N

Above 50dB

DNR

2D/3D

BLC

Support

PTZ

Pan Range

-90° - +90°

Tilt Range

-30° - +90°

Pan Speed

0.1° - +120°/s

Tilt Speed

0.1° - +80°/s

Preset Number

256

OSD

Yes

Image Flip

Yes

Network

Image Resolution

1920 x 1080 @ 60fps

Video Compression

H.264, H.265

Audio Compression

AAC

Protocol

HTTP, RTSP, RTMP, RTP, TCP, UDP, ONVIF

Dual stream

Support

Interface

Video Output

1 x HDMI Interface, 1x 3G-SDI Interface

Audio Input

1 x LINE IN

Audio Output

1 x LINE OUT

Network Interface

1 x 10M/100M

USB Interface

1 x USB2.0

Control Interface

1 x RS-232

General

Control Protocol

VISCA/PELCO-P/PELCO-D

Address

0 - 63

Power Supply

DC12V

Power Supply

Below 50W

Working Temp

0°C - +40°C

Storage Temp

-20°C - +60°C

Dimension

500mm x 162mm x 137mm

Weight

3kg
