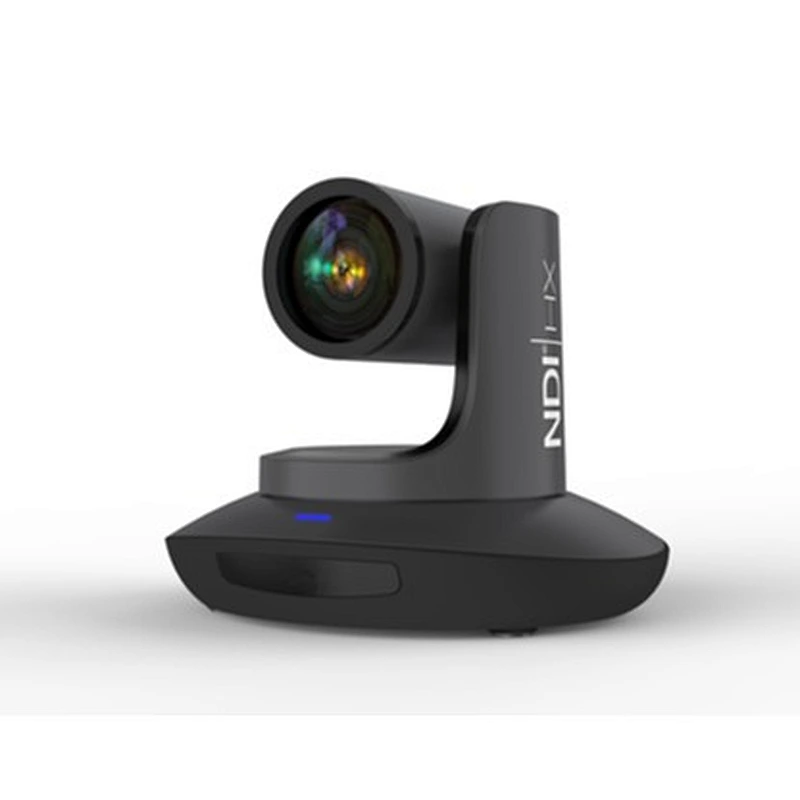

5MP Sensor 12X Zoom NDI IP PTZ Video Camera

Quantity:

Feature

※ Adopting the advanced ISP, 1/2.8 inch 5MP sensor, providing users crystal clear video

※ 12x optical zoom+2x digital zoom, 72.5 degree field of view,idea for large space AV solution

※ IP Video Streaming, includes both H.264, H.265 video encoding

※ 1080p30 full HD Video over NDI|HX, 3G-SDI, HDMI, USB output video simultaneously

※ WDR, 3D Noise Reduction feature

※ Power over Ethernet: one single CAT5/6 to get video, control, tally and power

※ Live RTMP streaming, streaming to YouTuBe Live and Facebook Live directly

※ Special Focusing Algorithm: fast and precise focusing performance when zooming or moving

※ Smooth PTZ mechanical design, accurate pan tilt motor control

※ 128 presets

※ Standard Sony VISCA, IP VISCA, PELCO-P, PELCO-D control protocol; IP VISCA over both TCP and UDP.

※ Daisy chain supported

※ Image flip function, support upside-down installation

※ Supplied with functional IR remote controller, can set IP address via OSD menu

※ Support multiple browsers to view video such as IE, Chrome, Firefox, Safari in both Mac and Windows system

※ Optional enclosure color: silver, grey, black, white

Model No.	UHV-12X-IP-S(NDI)
Camera
Sensor	1/2.8"5MegapixelCMOS Sensor
Video System	HDMI	NDI\|HX	3G-SDI	USB
	1920x10800p60/50/30/25 1280x720p60/50/30/25 1920x1080i60/50	Main Steam: 1920x1080p30 1280x720p30 Sub Steam: 1280x720@30 1024x576@30 640x360@30	1920x1080p60/50/30/25 1280x720p60/50/30/25 1920x1080i60/50	USB 3.0: 1920x1080p60/50/30/25 1280x720p60/50/30/25 1024x576p30 USB 2.0: 1024x576p30,960x540p30 640x360p30,352x288p30
Zoom	12x optical zoom + 2x digital zoom
View Angle	6.3°(wide) - 72.5°(Tele)
Focal Length	f=3.92(wide) - 47.32mm(Tele)
Preset	10 via remote controller; 128 via serial port; preset precision:0.1°
Pan Rotation Angle	- 170° - +170°
Tilt Roation Angle	- 30° - + 90°
Pan Rotation Speed	0° - 120° /s
Tilt Rotation Speed	0° - 80° /s
Control Port	NDI\|HX RS232 / RS485
Video Port	NDI\|HX/3G-SDI/HDMI/USB3.0
Network Speed	1000M
Noise Reduction	2D & 3D
SNR	Above 50dB
Minimum Lux	0.01Lux
White Balance	Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
Anti Flicker	50Hz/60Hz/OFF
D/N Mode	Supported
Gamma	Supported
Mirror Image	Supported
Image Flip	Supported
Iris	Auto/Manual
Electric Shutter	Auto/Manual
BLC	Atuo/Manual
Focus	Auto/Manual
Video Encoding	H.264/H.265
Bit Rate Control	Variable BitRate, Constant Bit Rate
Video Bit Rate	1024Kbps - 20480Kbps
Frames	50HZ: 1fps - 30fps; 60HZ: 1fps - 30fps
IP Protocol	TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP(TCP&UDP),HTML5
POE	Supported
Power	DC12V,2A
Dimension	220mm x 173mm x 190mm
Net Weight	1.25KGS(2.8LBS)
