Features
※ 1/2.8"CMOS, 2.13mega pixel, 30x optical zoom
※ H.265, H.264 video compression, dual steam
※ Support NDI | HX output
※ IR/White lighting system, rang up to 60 meters
※ TF card for local storage
※ 10.8 - 28V voltage input
※ Auto power-off with low power supply
※ IP66 waterproof
Technical Specification
Model No. | AC3-NS3003N |
Camera | |
Image Sensor | 1/2.8"Exmor CMOS, 2.13MP |
Active Pixel | 1920(H) x 1080(V) |
Video Standard(HD) | 1080p30,1080p/25,720p/60,720p50,720p/30,720p/25 |
Signal System(SD) | PAL/NTSC |
Min.Illumination | Color: 0.0013Lux; B/W:0.0008Lux |
WB | Auto |
Focus | Auto/Manual |
Exposure | Auto/Manual |
S/N Ratio | Not less than 50dB |
BLC | On/Off |
WDR | On/Off |
Digital Noise Reduction | 1 - 5 Steps/Off |
Digital Image Stabilization | No |
D/N ICR | Auto/Manual |
Lens | |
Optical Zoom | 30X |
Digital Zoom | 12X |
Focal | f = 4.3mm - 129mm |
IRIS | F1.6 - F3.5 |
View Angle | 63.7°(H) - 2.3°(V) |
PTZ | |
Pan Range | 360° Continuous |
Pan Speed | Control Speed: 0.1° - 60°/s, adjustable; Preset Speed: 60°/s |
Tilt Range | -15° - 90°(Auto Flip) |
Tilt Speed | Control Speed: 0.2° - 60°/s, adjustable; Preset Speed: 60°/s |
Preset | 256 |
Preset Precision | ±0.2° |
IR Light | |
Wave Length | 850nm |
Range | 60m |
Switch | Auto |
Network | |
Image Resolution | Max: 1920 x 1080@30fps |
Image Compression | H.264, H.265 |
Audio Compression | AAC |
Protocols | HTTP, RTSP, TCP, UDP, ONVIF |
No. of User's Access | Up to 10 |
Dual Stream | Support |
Interface | |
Audio Interface | 1 Line in, 1 Line out |
Video Output(SD) | CVBS1.0Vp-p/75Ω, PAL or NTSC |
Ethernet Interface | 10/100M(NDI | HX) |
Comm. Interface | RS-485 |
General | |
OSD | English |
Address | 0 - 255 |
Comm. Protocol | Pelco-P/Pelco-D(Self-Adaptive) |
Baud Rate | 2400bps, 4800bps, 9600bps,19200bps(Self-Adaptive) |
Voltage | DC10.8 - 28V |
Power | Min: 9W; Max:20W |
Working Temperature | -25°C - 65°C |
IP Index | IP66 |
Dimension | Φ136(mm) x 185(mm) |
Weight | 2.1Kg |

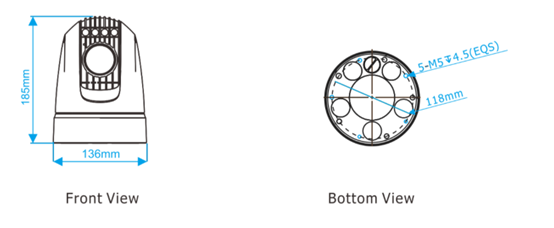

Dimension
