Feature
※ 1/1.8"high quality CMOS sensor, up to 4K @ 30fps rsolution
※ Support NDI®|HX output
※ 4K wide angle lens, 12x optical zoom, maximum 82° FOV
※ H.265, H.264 video compression, output 4K compressed digital video
※ Outputs 4K uncompressed digital video
※ HDMI, 3G-SDI, USB3.0,Ethernet and optional HD Base T outputs
※ Dual stream, supports multi-level image quality configuration
※ 1 audio input
※ TF card supports maximum 64G storage
※ VISCA in and out, Daisy Chain, PELCO-P, PELCO-D
※ OLED screen to display necessary information
※ Desktop and wall mounting options
Technical Specification
Model No. | AMC-NH1202 |
Camera | |
Image Sensor | 1/1.8"CMOS 8.41MP |
Lens | f=4.2mm-50.4mm, F1.8-F2.8 |
Optical Zoom | 12X |
Digital Zoom | 12X |
Field of View | 82.6° - 8° |
Focus | Auto, Manual, PTZ Push, One Push |
Shutter Speed | 1/25 - 1/10,000s |
AGC | Auto/Manual |
White Balance | Auto, Indoor, Outdoor, One Push, Manual, Auto Track |
AE Control | Auto, Manual,Shutter Priority, Iris Priority |
S/N Ratio | Above 50dB |
DNR | 2D / 3D |
BLC | Yes |
WDR | Yes |
PTZ | |
Pan Rotation Angle | - 170° - +170° |
Tilt Roation Angle | - 30° - + 90° |
Pan Rotation Speed | 0° - 120° /s |
Tilt Rotation Speed | 0.1° - 80° /s |
Preset Number | 255 |
OSD Menu | Yes |
Image Flip | Yes |
Video Format | |
Video Output | 4K@30fps, 4K@25fps, |
Network | |
Max. Image Size | |
Video Compression | H.264/H.265 |
Audio Compression | AAC |
Protocol | HTTP, RTSP, RTMP, RTP, TCP,UDP, ONVIF |
Dual Stream | Support |
USB | |
Max. Image Size | 3840*2160 @ 30fps |
Video Compression | H.264,H.265, MJPEG |
USB Audio | Support |
UVC Protocol | UVC1.0 - UVC1.5 |
UVC PTZ | Support |
Interface | |
Video Output Interface | HDMI, SDI, HDBaseT(optional) |
Audio Input Interface | Line in |
Audio Output Interface | Line out |
Ethernet Interface | 10/100/1000M(NDI | HX), POE(optional) |
USB Interface | USB3.0 |
Control Interface | RS-RS232IN, RS-232OUT, RS-485 |
TF Card | Max. 64G |
General | |
Power Supply | DC12V |
Power Consumption | Below 20W |
Working Temperature | -10°C - +40°C |
Storage Temperature | -20°C - +60°C |
Dimension(W x H x L) | 251mm x 159mm x 195mm |
Net Weight | 1.5kg |
Color | Grey |

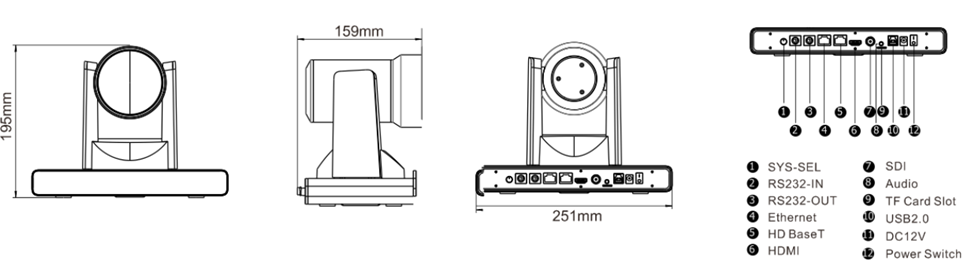

Dimensions

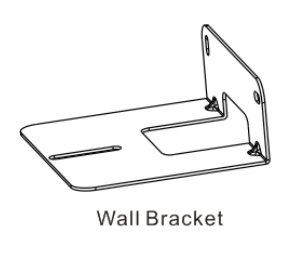

Accessories
