HD Camera
* 1/2.8"CMOS, 2.14MP, excellent 1080P video quality
* Quick focus to ensure superb clarity
* High color reproduction, presenting real and vivid color with more details
* Maximum 20x zoom

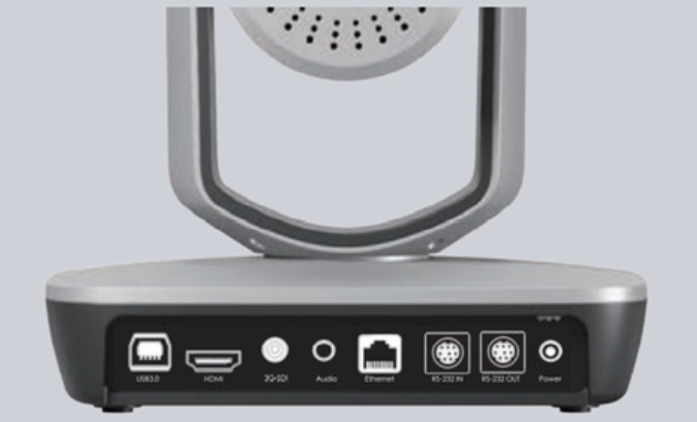

Rich Interfaces
* HDMI, USB3.0, and Ethernet video outputs
* RS232 in and RS232 out, daisy chain ready
Compact Design
* Small sized design, easy for installation

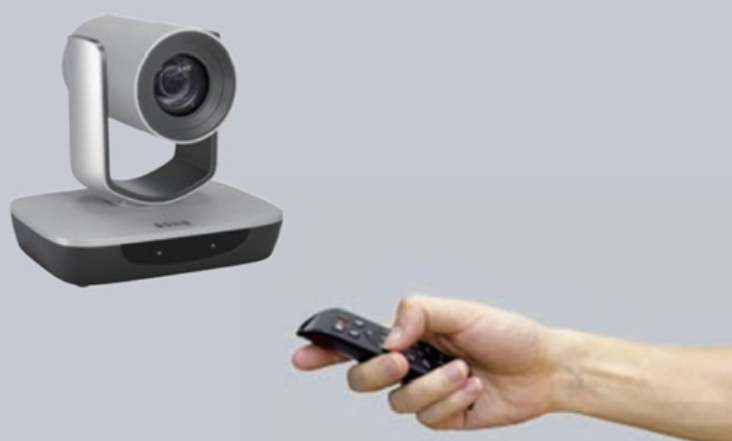

* Compact remote control with comfortable user experience

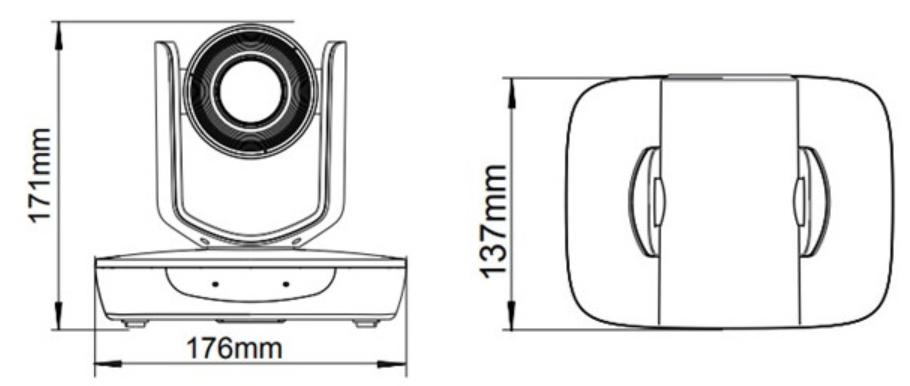

Dimensions

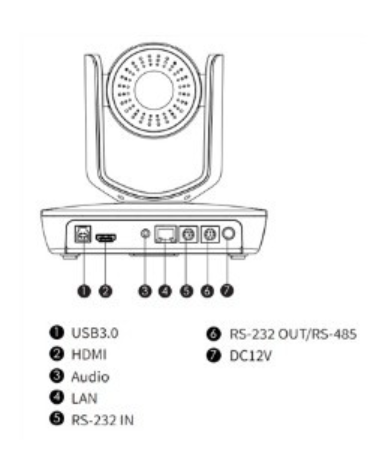

Interface
Specification
Model | AMC-G310U3 | AMC-G312U3 | AMC-G320U3 |
Image Sensor | 1/2.8"CMOS, 2.14MP | ||
Focal Lens | 4.3mm - 43mm | 4.14mm - 47.08mm | 4.7mm - 94mm |
Iris | F1.6 - F3.0 | F1.6 - F2.8 | F1.6 -F3.5 |
Field of View | 69° - 8° | 72.5° - 6.3° | 59.5° - 2.9° |
Optical Zoom | 10X | 12X | 20X |
Digital Zoom | 16X | ||
Focal System | Auto, Manual, One Push, PTZ | ||
Exposure | Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority | ||
Min.Illumination | 1.0Lux | ||
Shutter Speed | 1/50 - 1/10,000s | ||
Gain | Auto, Manual | ||
White Balance | Automatic, Manual, Automatic tracking, One Push, Static Color Temperature | ||
WDR | Yes | ||
BLC | Yes | ||
S/N | Above 50dB | ||
PTZ | |||
Pan Angle | -170° - +170° | ||
Tilt Angle | -30° - +90° | ||
Pan Speed | 0.1° - 120°/s | ||
Tilt Speed | 0.1° - 90°/s | ||
Image Flip | Yes | ||
Preset Number | 256 | ||
Interface | |||
HDMI | 1 x HDMI Video Output: 1080P60/50/30/25, 720P60/50/30/25, 480P60/50 | ||
Network | 1 x RJ45: 1 x 10M/100M RJ45(POE supported) | ||
Audio Input | 1 x LINE IN, 3.5mm | ||
Control Interface | 1 x RS232 In, 1 x RS232 Out/RS485 | ||
Storage Interface | Max. 256G | ||
General | |||
Protocols | VISCA(support daisy chain) / PELCO-P / PELCO-D | ||
Power | DC12V | ||
Power Consumption | Below 15W | ||
Operating Environment | Temperature: 0°C - +40°C, Relative Humidity: 10%RH - 90%RH | ||
Storage Environment | Temperature: -20°C - +60°C, Relative Humidity: 10%RH - 95%RH | ||
Dimensions | 176mm x 137mm x 171mm(WxHxD) | ||
Weight | 1.2kg | ||
