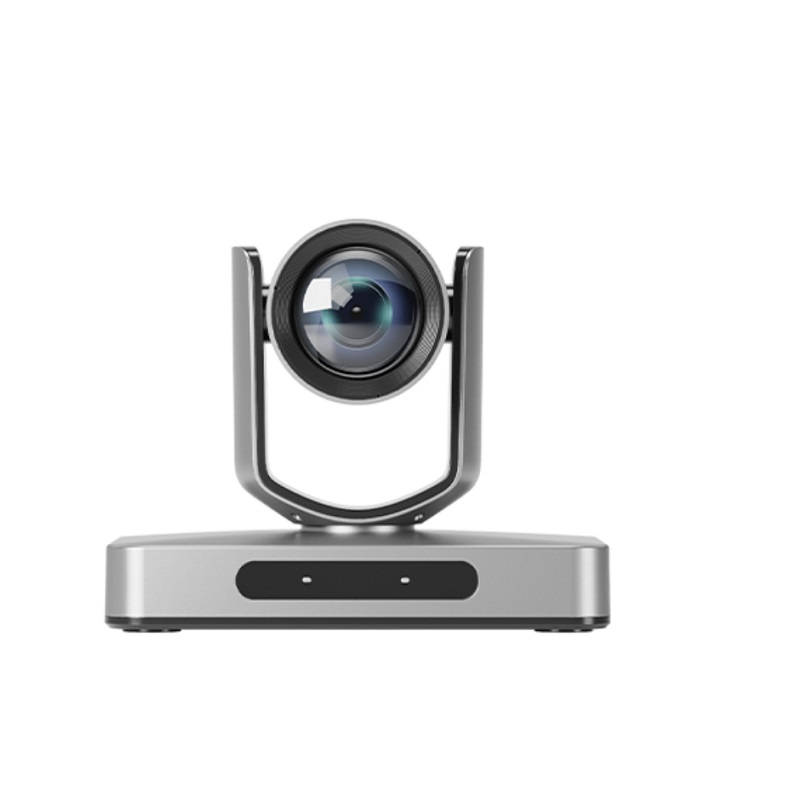

4K30 12x Conference PTZ Camera

Model

AMC-G431S

Camera

Image Sensor

1/2.8'' CMOS, 8.46MP

Lens

f=3.9mm - 46.8mm

Iris

F1.6 - F2.8

Optical Zoom

12x

Digital Zoom

8x

HFOV

72.5° ~ 6.3°

Focusing Sytem

Auto, Manual

White Balance

Auto, Manual, Auto tracking, One Push, Static Color Temperature

Wide Dynamic

Support

Exposure

Auto, Manual, Shutter Priority, Iris Priority

Gain

Auto, Manual

BLC

Support

SNR

Above 50dB

PTZ

Pan Angle

-170° - +170°; 0.1° - 90°/s

Tilt Angle

-30° - +90°; 0.1° - 65°/s

Preset Number

64

Image Flip

Support

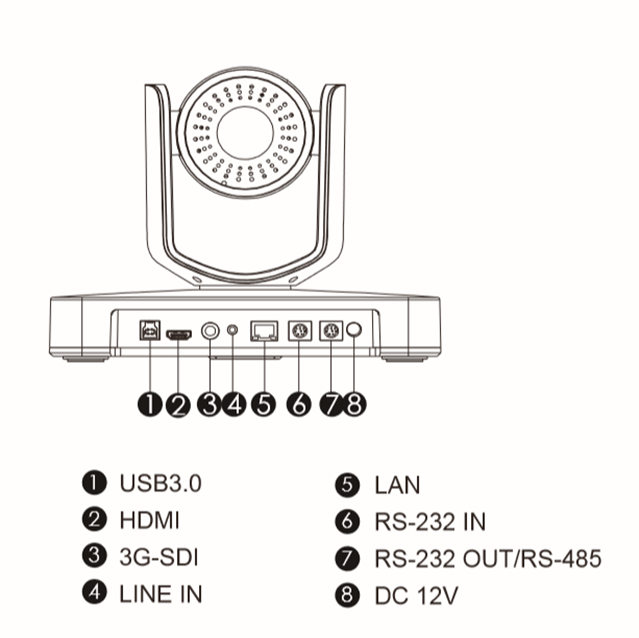

Interface

HDMI 1.4

4KP30/P25, 1080P60/P50/P30/P25, 720P60/P50/P30/P25

Network

1 x RJ45, 1 x 10M/100M, POE Supported
1. Up to 4KP30 video output
2. Image Compression: H.264/H.265
3. Protocol: ONVIF/RTSP/RTMP/TCP/UDP/RTMPS
4. Audio Compression: AAC
5. Support Dual streams

USB3.0

1. UVC Support UVC1.1
2. UVC Support: YUY2/H.265/MJPEG.
    YUY2: 1080P30/P25, 720P30/P25, 480P30/P25, 360P30/P25
    H.264/H.265/MJPEG: 4KP30/25, 1080P60/P50/P30/P25, 720P60/P50/P30/25,360P30/25
3. UAC Audio format PCM

3G-SDI

1080P60/P50/P30/P25, 720P60/P50/P30/P25

Audio

1 x Line in, 3.5mm

Control Interface

1 x RS-232 In, 1 x RS232 Out/RS485

General

Power

DC12V;<15W

Control Protocol

VISCA (support daisy chain) /PELCO-P/PELCO-D

Operating Environment

Temperature: 0°C - +40°C, Relative Humidity: 10%RH - 90%RH

Storage Environment

Temperature: -20°C - +60°C, Relative Humidity: 10%RH - 95%RH

Dimensions(L x W x H)

211mm x 137mm x 170mm

Weight

Below 1.2kg
