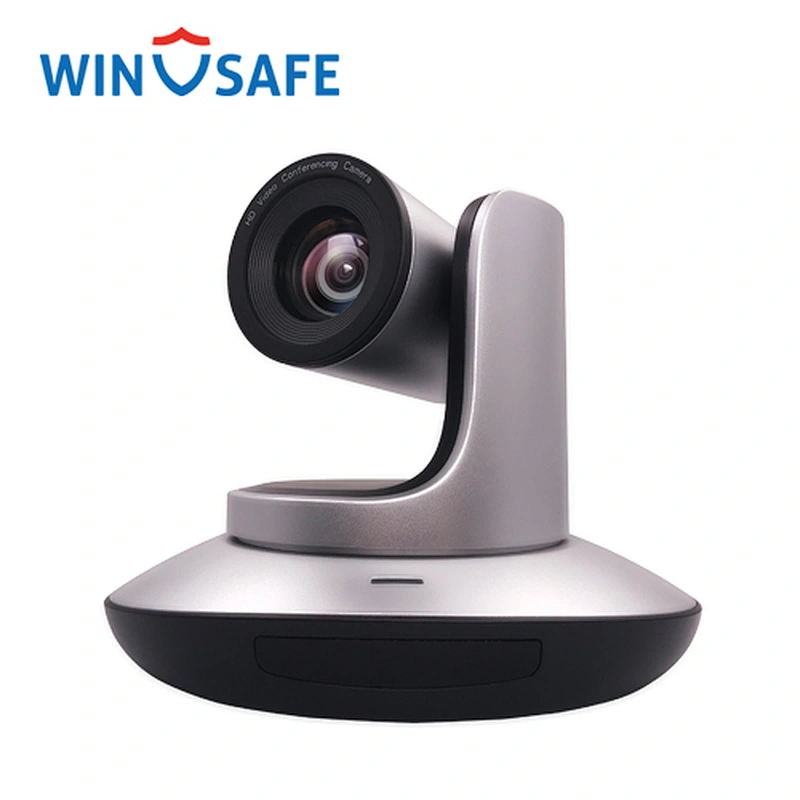

IP, HDMI,SDI and USB 3.0 Output 4K Video Conference PTZ Camera

Quantity:

Model No.	UHV-400-H
Sensor	1/2.5"12Megapixel high quality CMOS Sensor
Video System	HDMI	IP	SDI	USB3.0
	3840x2160p30/25 1080p60/50/30/25 720p60/50/30/25 108i60/50	Main Steam: 3840x2160p30 1920x1080p60 Sub Steam: 1280x720,704x576 640x480,352x288	1080p60/50/30/25 720p60/50/30/25 1080i60/50	1080p60/50/30/25 720p60/50/30/25 USB 3.0 & 2.0: 1027x576p30 960x540p30 640x360p30 352x288p30
Zoom	12x optical zoom + 2x digital zoom
FOV	6.3°(near) - 72.5°(far)
F.no.	Wide: 1.84 Tele: 2.81
Min.Focus Distance	Wide: 0.3m Tele:1m
Preset	10 via remote controller; 128 via serial port; preset precision: 0.1°
Pan Rotation Angle	- 170° - +170°
Tilt Roation Angle	- 35° - + 90°
Pan Rotation Speed	0° - 120° /s
Tilt Rotation Speed	0° - 80° /s
Control Port	RS232/RS485/RJ45
Video Port	HDMI/RJ45/SDI/USB3.0/USB2.0
Network Speed	1000M
Noise Reduction	2D & 3D
SNR	Above 50dB
Focal Length	f=3.92(near) - 47.32mm(far)
Minimum Lux	0.01Lux
White Balance	Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
Anti Flicker	50Hz/60Hz/OFF
D/N Mode	Supported
Gamma	Supported
Mirror Image	Supported
PanTilt Flip	Supported
Iris	Auto/Manual
Electric Shutter	Auto/Manual
BLC	Auto/Manual
Focus	Auto/Manual
Video Encoding	H.264/H.265
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps - 30720Kbps
Frames	50HZ: 1fps - 50fps; 60HZ: 1fps - 60fps (3840 x 2160 max.30fps)
IP Protocol	TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP
POE	Supported
Input Voltage	DC12V, 2A

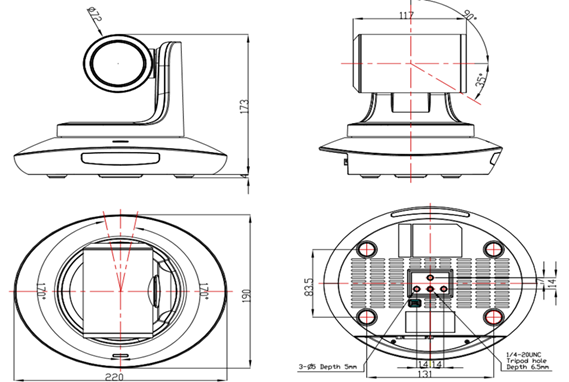

Dimension	220mm x 173mm x 190mm
Net Weight	1.25KGS(2.8LBS)
