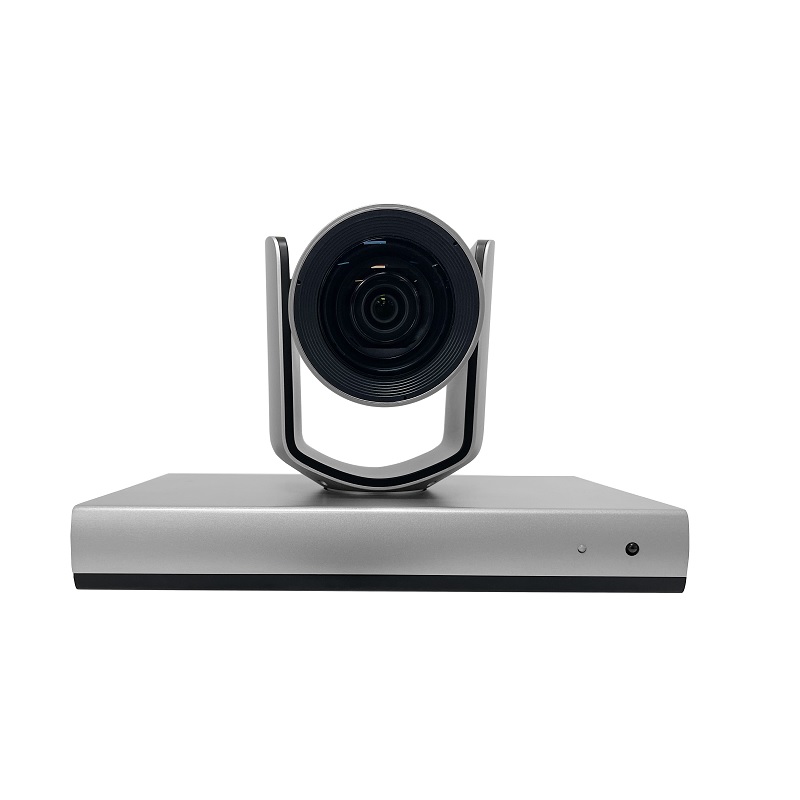

4K60fps Live Steaming 12X PTZ Video Camera For Church

Model NO.: AMC-G500(S/H)

Quantity:

Product Description

Feature

- Wide 81° field of view
- USB2.0 with UVC and UAC protocols, up to 4K30 video output, and support POE
- Optional 3G-SDI or HD-BaseT video output
- Support RS-232 in, RS-232 out control interface and VISCA protocol
- 1 channel Line in
- Fast, accurate and smooth tracking
- High precision, smooth rotation, quiet PTZ

Specification

Model No.	AMC-G500(S/H)
Camera
Image Sensor	1/2.8"CMOS, 8.46MP
Lens	12X; f=3.4mm - 40.3mm; F1.8(Wide) - 3.6(Tele)
FOV	81° - 7.6°
Image	Auto focus/auto exposure/auto white balance
SNR	2D & 3D DNR,≥55dB
Video Output Format	4KP60/P50/P30/P25, 1080P60/P50/P30P/25, 720P60/P50
Image Compression	H.264/H.265/MJPEG
BLC/WDR	Support
PTZ
Pan Angle	-130° - +130°; 0.2° - 80°/s
Tilt Angle	-30° - +90°; 0.2° - 60°/s
Menu	Support
Preset Number	64
Video/Audio Interface
SDI(Optional)	1x3G-SDI, support 1080P60/P50/P30/P25, 1080I60/I50,720P60/P50
HDMI	1xHDMI2.0; Video resolution: 4KP60/P50/P30/P25, 1080P60/P50/P30/P25, 1080I60/I50, 720P60/P50
Audio Input	1 x line in, 3.5mm
HD-BaseT(Optional)	1xHDB - BaseT, support 4KP30/P25, 1080P60/P50/P30/P25, 1080I60/I50,720P60/P50
USB
USB Interface	1xUSB2.0
Video Format	MJPEG/H.264, 4KP30/P25, 1080P30/P25, 720P30/P25, 260P30/25
Interface
Network Interface	1x10M/100M/1000M, RJ45 POE(Optional)
Video Output Format	Max. 4KP60
Image Compression	H.264/H.265/MJPEG
Audio Compression	AAC
Network Protocol	RTSP/ONVIF/RTMP/HTTP/TCP/UDP/RTP
Dual Stream	Main/Sub
General
Control Protocol	VISCA
Addresses	1-6
Power	DC12V
Power Consumption	Below 18W
Working Environment	Temperature: 0°C - +40°C; Relative Humidity: 10%RH - 90%RH
Storage Environment	Temperature: -20°C - +60°C;Relative Humidity: 10%RH - 95%RH
Dimension	245mm x 145mm x 165mm
Weight	1.8kg
