Advantages
※ Adopts most advanced DSP,1/2.5 inch 8.5MP sensor
※ Class leading optical lens: 15xlossless HD zooom, 85 degree wide FOV
※ Ultra crystal 4K video via USB 3.0 port
※ Special Focus Algorithm: fast and precise focusing performance when zooming or moving
※ Standard Sony Visca, Visca Over IP, UVC control protocol
※ Supplied with function IR remote controller, can set IP address vis OSD menu
※ HTML5 supported multi-browser: IE,360, Chrome, Firefox, Safari, Opera etc.
※ Compatible with almost popular VC application
Feature
※ IP and USB 3.0 outputs simultaneously
※ 3840x2160p30 Ultra HD video resolution
※ Automatic access to the IP address
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ WDR, 3D Noise Reduction feature
※ 128 presets
※ Image flip function, support upside-down installation
※ RJ45 support RTSP/RTMP video protocol, H.264,H.265 encoding
※ RJ45 support standard ONVIF protocol, can control by ONVIF keyboard
※ RJ45 support standard Visca over IP control
※ Support POE: easy to use one RJ45 cable to get video, control and power supply
※ Sony Visca and Pelco P/D protocol
Technical Specification
Model No. | UHV-300H-5 | ||
Sensor | 1/2.5"8.5Megapixel high quality CMOS Sensor | ||
Video System | USB3.0 | USB2.0 | IP |
MJPG: | MJPG: | Main Stream: | |
Zoom | 5X(4K), 15Xlossless HD zoom(1080p and lower) | ||
FOV | 26.5°(near) - 85°(far) | ||
F.no. | Wide: 2 Tele: 2.8 | ||
Focal Length | f=2.8(tele) - 14mm(far) | ||
Preset | 10 via remote controller; 128 via serial port; preset precision: 0.1° | ||
Pan Rotation Angle | - 170° - +170° | ||
Tilt Roation Angle | - 30° - + 90° | ||
Pan Rotation Speed | 0° - 120° /s | ||
Tilt Rotation Speed | 0° - 80° /s | ||
Control Port | RS232/RS485/RJ45/UVC | ||
Video Port | RJ45/USB3.0/USB2.0 | ||
Network Speed | 1000M | ||
Noise Reduction | 2D & 3D | ||
SNR | Above 50dB | ||
Minimum Lux | 0.01Lux | ||
White Balance | Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor/Indoor | ||
Anti Flicker | 50Hz/60Hz/OFF | ||
D/N Mode | Supported | ||
Gamma | Supported | ||
Mirror Image | Supported | ||
PanTilt Flip | Supported | ||
Iris | Auto/Manual | ||
Electric Shutter | Auto/Manual | ||
BLC | Auto/Manual | ||
Focus | Auto/Manual | ||
Video Encoding | H.264/H.265 | ||
Bit Rate Control | Variable Bit Rate, Constant Bit Rate | ||
Video Bit Rate | 1024Kbps - 30720Kbps | ||
IP Protocol | TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP,VISCA over IP | ||
POE | Supported | ||
Input Voltage | DC12V, 2A | ||
Dimension | 220mm x 173mm x 190mm | ||
Net Weight | 1.25KGS(2.8LBS) | ||

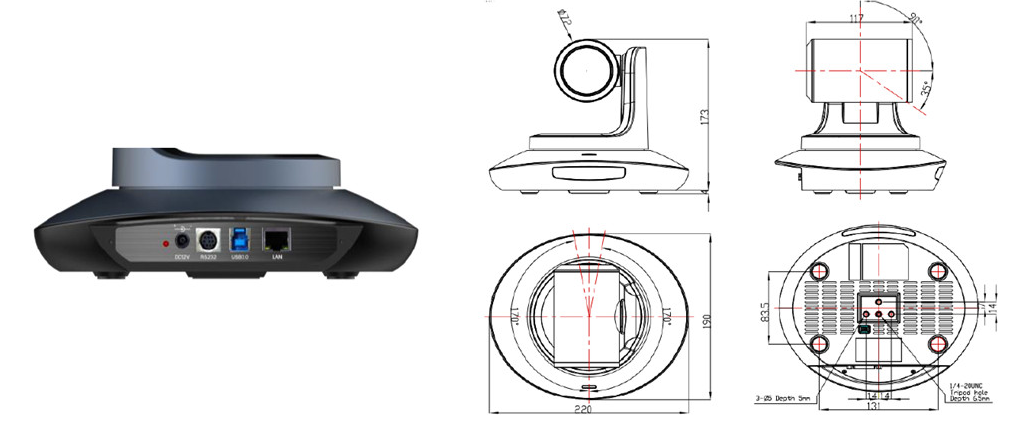

Inputy/Outpur Interface Dimensional Drawing(mm)
