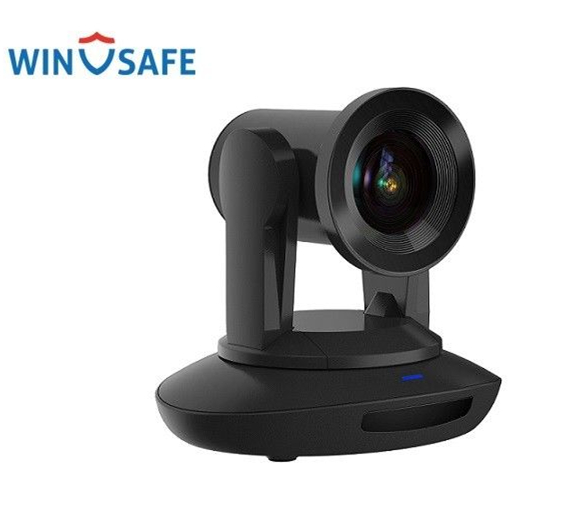

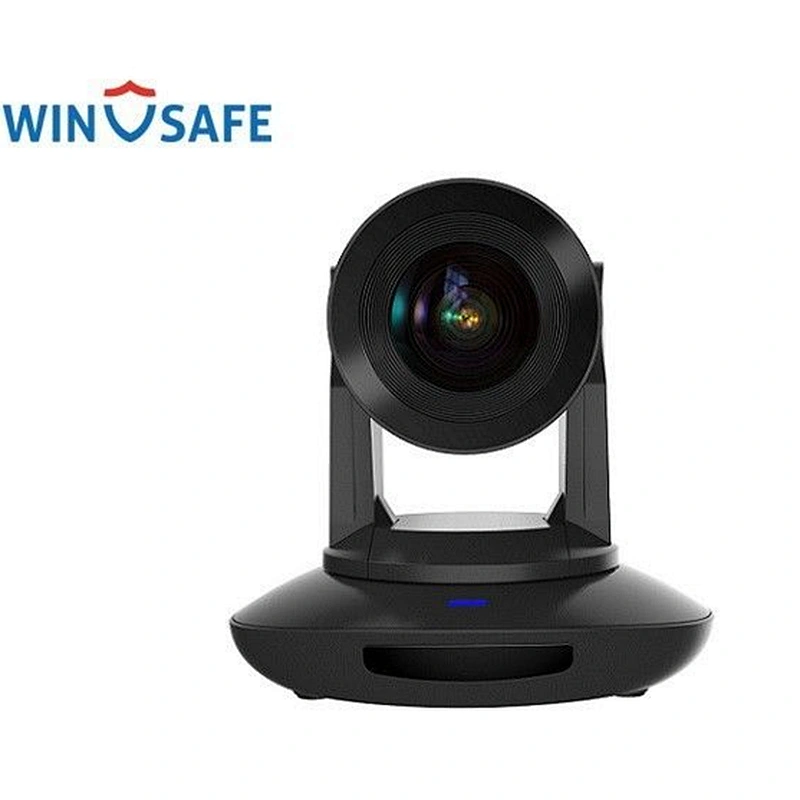

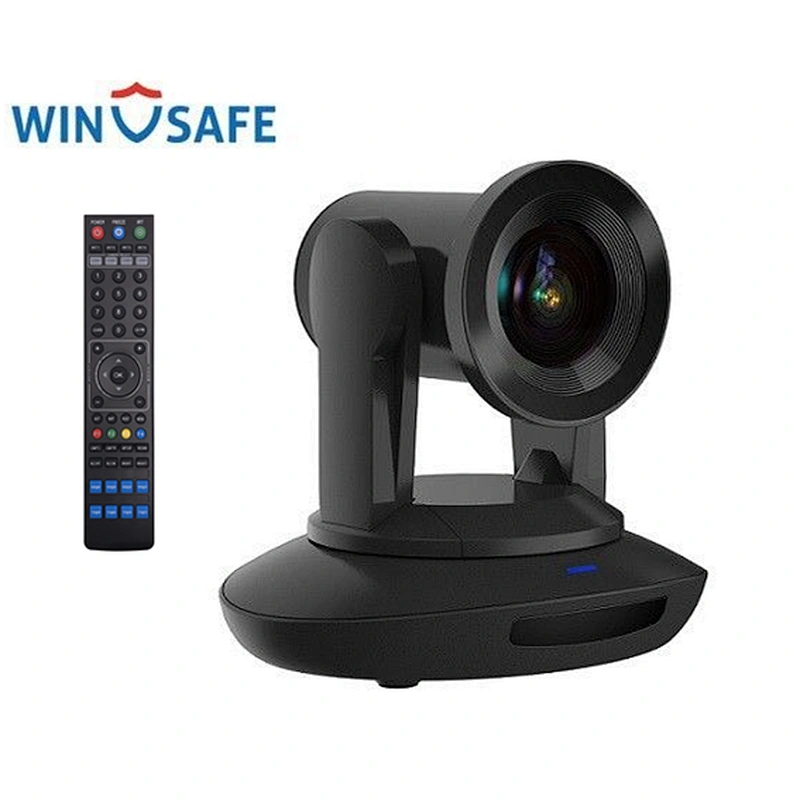

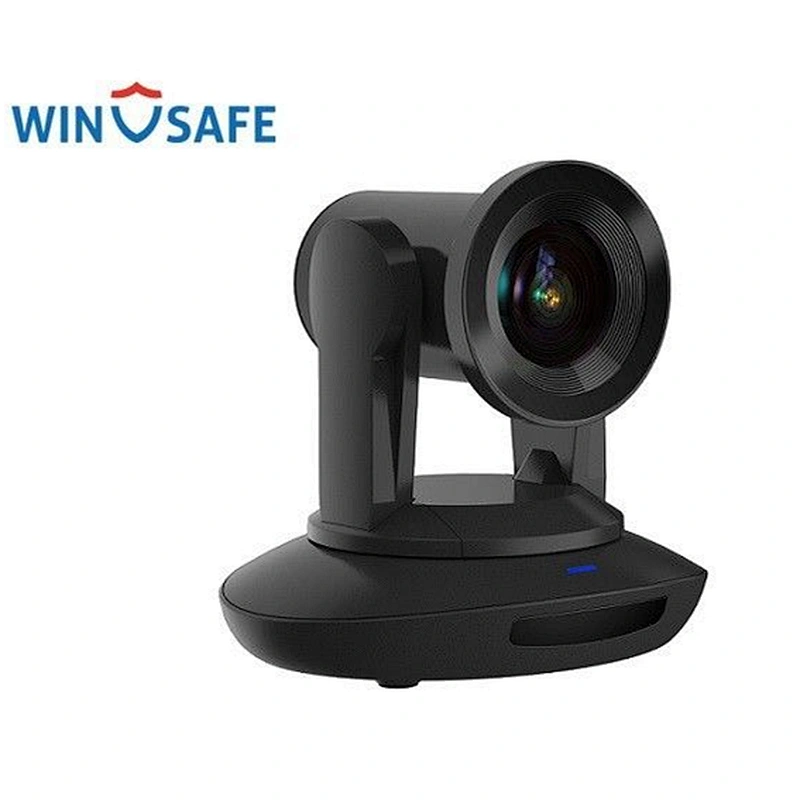

4K HD 35X PTZ Video Conference Camera POE SDI HDMI IP USB

4K HD 35X PTZ Video Conference Camera POE SDI HDMI IP USB

Model NO.: UHV-500H
Delivery: FOB
Minimum order quantity: 1 piece
Country of Origin: China

Quantity:

Product Description

Feature
※ 3840X2160P30 ULTRA HD VIDEO RESOLUTION ※ Adopts most advanced ISP, 1/1.7"inch 12MP sensor, provide Ultra high definition crystal clear image with full details ※ 4K WIDE ANGLE OPTICAL LENS:35X OTPICAL ZOOM,60 DEGREEE FIELD OF VIEW ※ 4K VIDEO OVER IP, AND SUPPORT H.264,H.265 ENCODING ※ Meanwhile, HDMI, SDI, USB outputs as well, fit for different application ※ POE SUPPORTED ※ One single cable allows video transmission, camera control as well as power supply ※ HIGH PRECISE MOTOR POSITIONING ※ -170° to +170° pan rotation, -30° - 90° tilt rotation, quiet & smooth mechanism movement, accurate & fast focus, capture every details in whole space ※ STANARD SONY VISCA OVER SERIES AND SONY VISCA OVER IP SUPPORTED
Technical Specification
Model No.	UHV-500-H
Camera
Sensor	1/1.7"12MegapixelCMOS Sensor
Video System	HDMI	IP	SDI	USB
	3840x2160p30/25 1080p60/50/30/25 720p60/50/30/25 108i60/50	Main Steam: 3840x2160p30 1920x1080p60 Sub Steam: 1280x720,704x576 640x480,352x288	1080p60/50/30/25 720p60/50/30/25 1080i60/50	USB 3.0: 1080p60/50/30/25 720p60/50/30/25 USB 2.0: 1024x576p30 960x540p30 640x360p30 352x288p30
Zoom	35x optical zoom + 2x digital zoom
View Angle	2.02° (wide) - 60° (tele)
Focal Length	f=5.8(Near) - 203(Far)
SNR	Above 50dB
Minimum Lux	0.01Lux
Focus	Auto/Manual
Min.Focus Distance	Wide: 0.3m Tele:1.5m
Iris	Auto/Manual
Iris No.	Wide: 1.5 Tele: 4.8
White Balance	Auto/Manual/Auto Tracking/OnePush/Indoor/Outdoor
Electric Shutter	Auto/Manual
BLC	ON/OFF
Noise Reduction	2D & 3D
D/N Mode	Supported
Gamma	Supported
Mirror Image	Supported
PanTilt Flip	Supported
Anti Flicker	50Hz/60Hz/OFF
Video Freeze	Optional
Mechanical
Preset	10 via remote controller; 128 via serial port
Pan Rotation Angle	- 170° - +170°
Tilt Roation Angle	- 30° - + 90°
Pan Rotation Speed	0° - 120° /s
Tilt Rotation Speed	0° - 80° /s
Port
Control Port	RS232(Sony Visca), RJ45(Onvif)

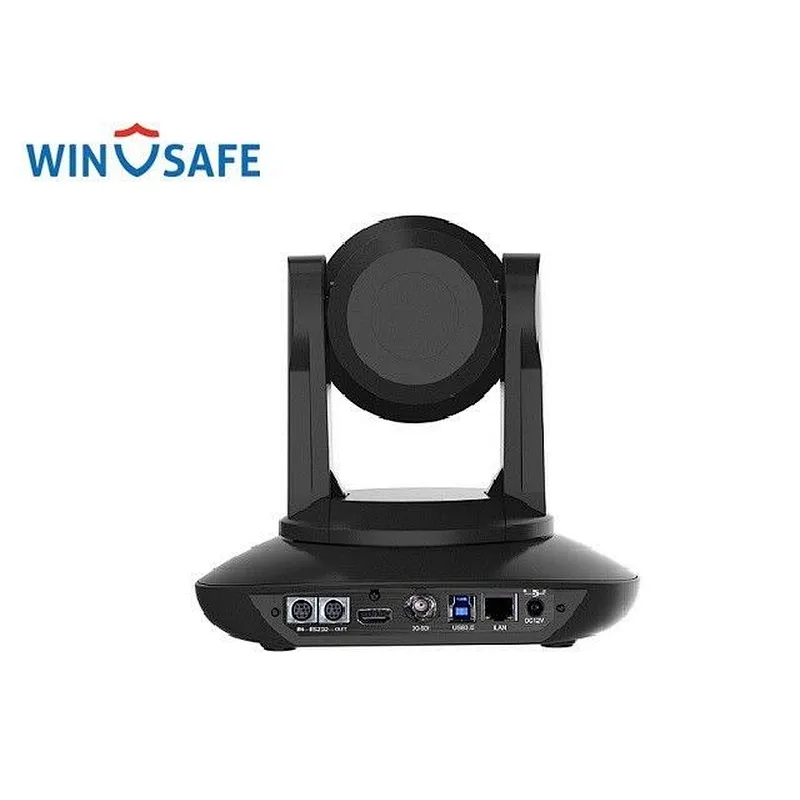

Video Port	HDMI/RJ45/SDI/USB3.0
Power	DC12V,2A
POE	Supported
Encoding
Video Encoding	H.264/H.265
Bit Rate Control	Variable Bit Rate, Constant Bit Rate
Video Bit Rate	1024Kbps - 30720Kbps
Frames	50HZ: 1fps - 50fps; 60HZ: 1fps - 60fps (3840 x 2160 max.30fps)
IP Protocol	TCP/IP, HTTP,RTSP, RTMP, Onvif, DHCP
General
OSD Menu	English/Chinese
Dimension	220mm x 173mm x 117mm
Package	320mm x 300mm x 310mm
