Advantages
※ Ultra crystal video: with advanced DSP, 1/2.8"inch SONY sensor and high quality 5x lens
※ Smart & Solid design
※ Plug & Play, easy connection
※ All video, control and power cable over single USB 3.0 cable
※ USB 3.0 YUY2 video format, works with Windows, Mac OS, Android, Linux
※ Standard UVC1.5 protcol, compatible with most VC application
Feature
※ USB 3.0 super speed output
※ 5x optical zoom + 2x digital zoom
※ 85 degree ultra wide of viewing
※ 1920x1080p60(YUY2) high definition
※ Ultra smooth PTZ mechanism
※ Accurate PT motor control
※ Effective RS232/RS485 serial control
※ WDR,3DNR,BLC, Anti-flicker feature
Technical Specification
Model No. | UHV-5X-U3S |
Sensor | 1/2.8"inch high quality, SONY CMOS sensor, 5MP |
Video System | USB 3.0 mode: 1920 x 1080p@30/25, 1280x720p@60/50/25 |
Zoom | 5x optical zoom + 12x digital zoom |
View Angle | 85° |
Focal Length | f = 3.1 - 15.5mm |
Minimum Lux | 0.1Lux |
S/N Rate | Above 50dB |
Focus | Auto/Manual |
Iris | Auto/Manual |
White Balance | Auto/Manual/Indor/Outdoor |
Electronic Shutter | Auto/Manual |
Anti Flicker | 50Hz/60Hz/OFF |
BLC | ON/OFF |
Pan Rotation Angle | - 170° - +170° |
Tilt Roation Angle | - 30° - + 90° |
Pan Rotation Speed | 0° - 120° /s |
Tilt Rotation Speed | 0° - 80° /s |
Preset | 128 via RS232 contorl, 10 via remote controller |
Control Port | RS232(Sony Visca), USB3.0(UVC1.5 protocol) |
Video Port | USB3.0(YUY2 format) |
Power | DC5V( USB 3.0) |
OSD Menu | Enligh/Chinese |
Camera Size | 148mm x 132mm x 161mm |
Package | 280mm x 240mm x 240mm |
Pacage content | Camera, Rs232 cable, 3M USB3.0 Cable, power supply |
Net Weight | 0.8KG |

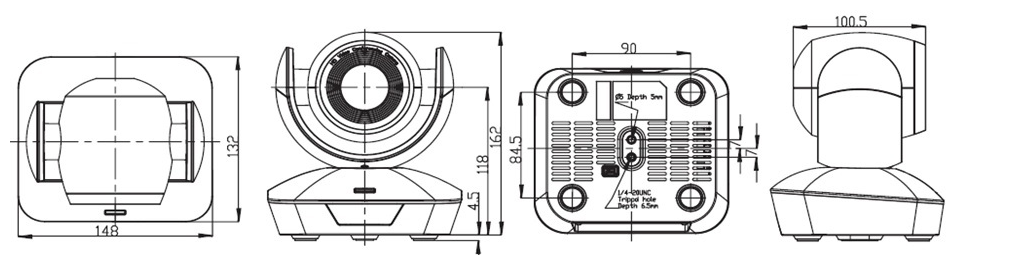

Dimensions
