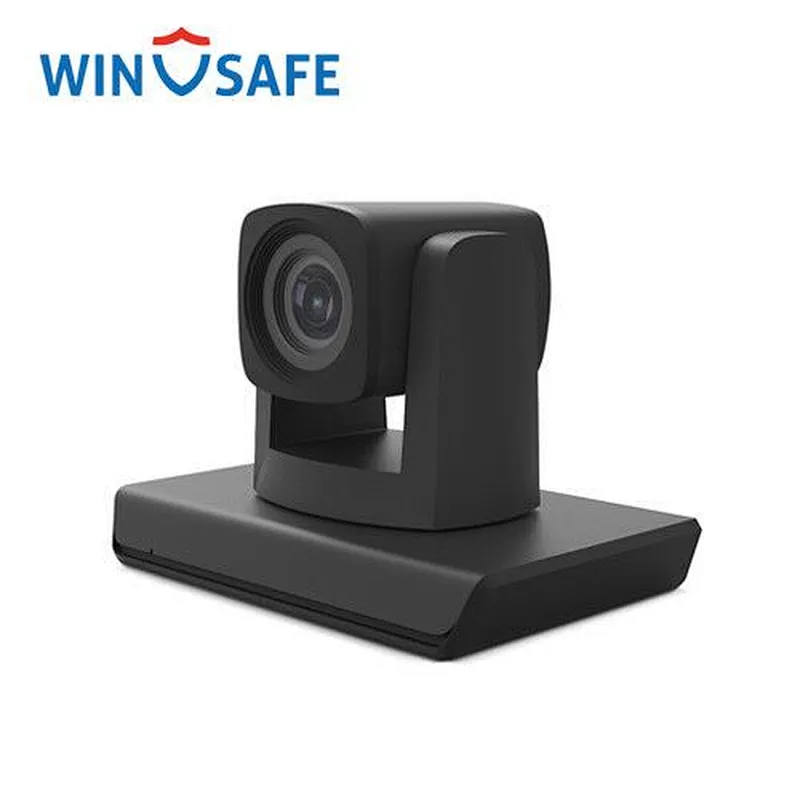

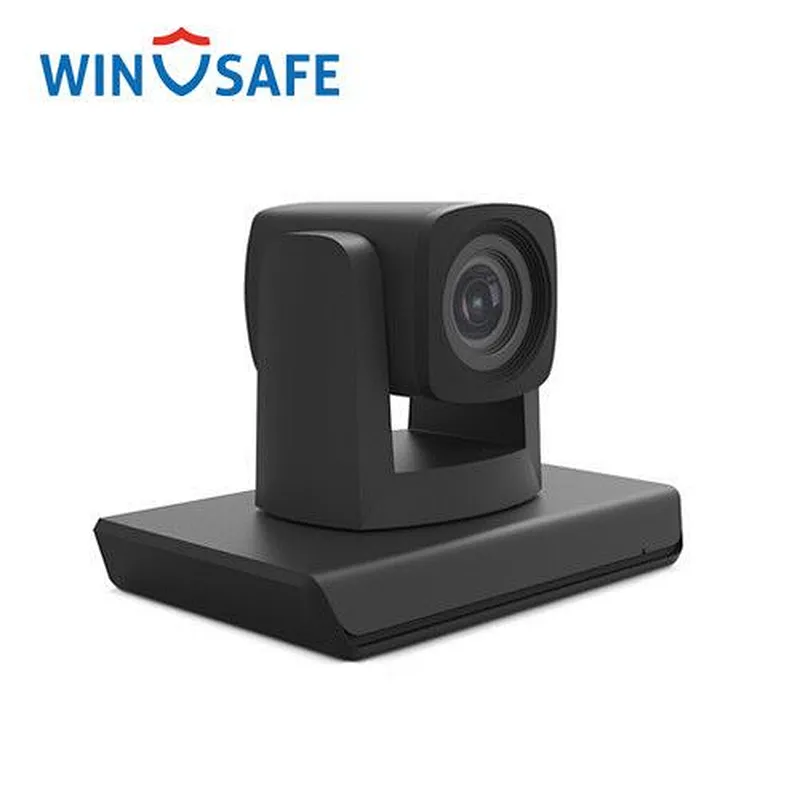

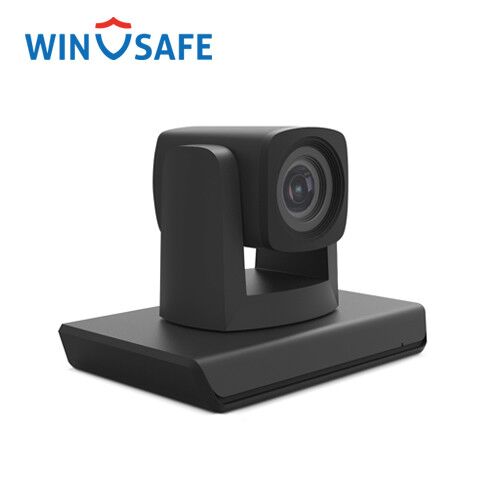

10X Mini USB 1080P PTZ Video Conference Camera for Huddle Room

10X Mini USB 1080P PTZ Video Conference Camera for Huddle Room

Model NO.: AMC-M1001V3
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 10000 piece / Month
Country of Origin: China
Stock Time: 5-7 Days

Quantity:

Product Description

Features

※ Latest CMOS sensor, support up to 1080P30 video outputs
※10X optical zoom, up to 62.2 degree FOV
※ Advanced 2D/3D noise reduction algorithm, excellent noise control
※ DC servo motor drive, smooth operation, accurate positioning
※ Support H.264, H.265, MJPEG compressed video output, standard UVC protocol
※ USB output

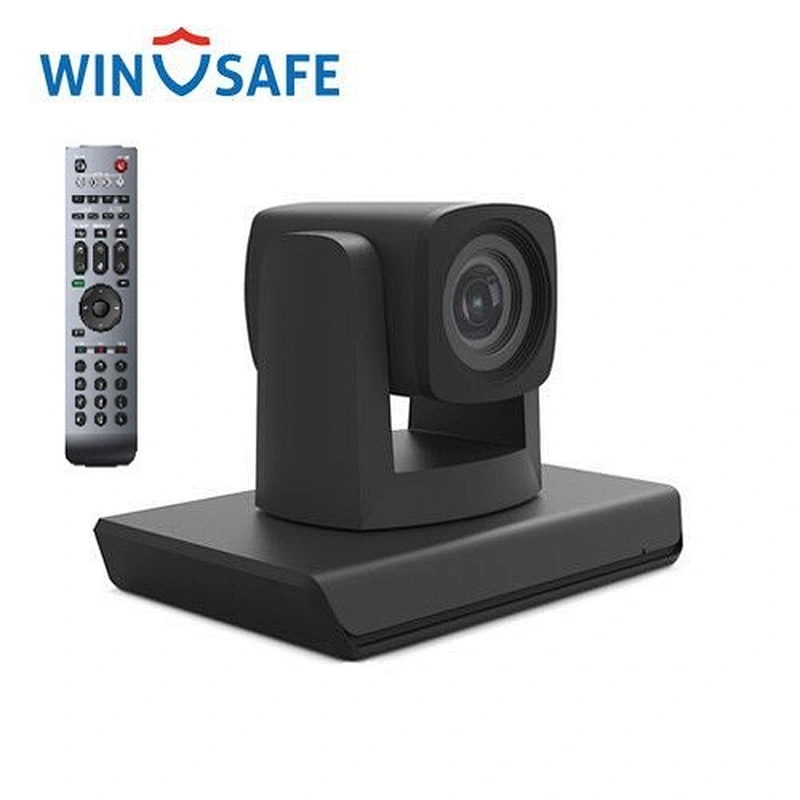

※ Support USB and remote control to control the camera
※ Support 1 channel audio input(reserved)
※ Power consumption is less than 5W

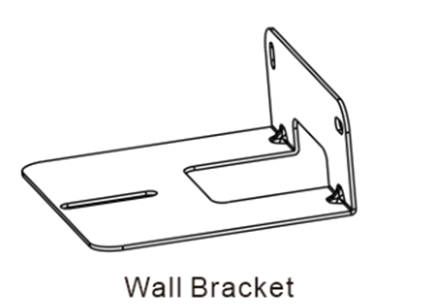

※ Base with tripod thread interface for tripod fixing

Technical Specification

Model No.	AMC-M1001V3
Camera
Image Sensor	1/2.8"CMOS, 2.16MP
Focal	f=5.15mm - 47.38mm
IRIS	F2.38
Optical Zoom	10X
Field of View	62.6° - 7.08°
Focus	Auto , Manual, PTZ Trigger, One Push Trigger
Exposure Control	Auto, Manual
White Balance	Auto, One Push, Manual, Auto Track
Gain	Auto ,Manual
Shutter Speed	1/1 - 1/10,000s
BLC	Support
DNR	2D/3D
BLC	Yes
S/N Ratio	Above 50dB
Pan & Tilt
Pan Range	-90° - +90°
Tilt Range	-30° - +90°
Pan Speed	15°/s
Tilt Speed	10°/s
Preset Number	32
Interface
Audio Port	Line IN
IR Remote Control	Support
USB
Max Image Size	1080P30
Image Compression	H.264/H.265/MJPEG
UVC Protocol	USB2.0,UVC 1.0
UVC PTZ Control	Support
General
Power Consumption	Below 5W
Power Supply	DC12V
Working Temp	0°C - +40°C, Relative Humidity: 10%RH ~ 90 %RH
Storage Temp	-20°C - +60°C, Relative Humidity: 10%RH ~ 95 %RH

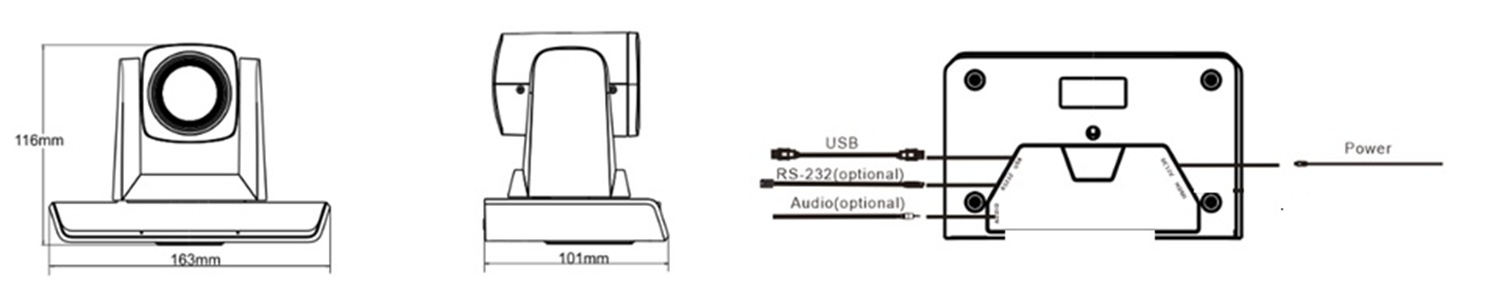

Dimension	163mm x 101mm x 114mm
Weight	0.6kg
Color	Black
