Features
※ 1/2.8"EXMOR CMOS image sensor, up to 2.13MP
※ Simultaneously outputs of HD and SD videos
※ Video interface, DVI-I(for DVI-D, HDMI, YPbPr, VGA, 5-BNC etc.)HD-SDI
※ Control: RS-232 IN, RS-RS232OUT, RS-422/RS485
※ On-screen display menu with simple program
※ Has image flip function for stand and suspended installations
※ On-screen display menu with simple program
※ Has image flip function for stand and suspended installations
※ Support VISCA protocols, daisy chian
※ Come with IR remote controller
※ New design of PTZ mechanism with higher precision and reliability

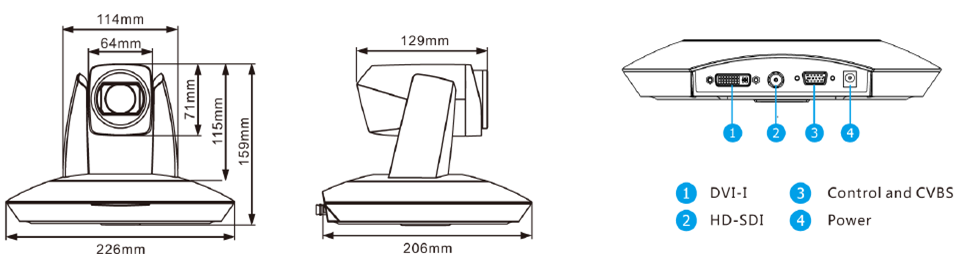

Dimensional Drawing

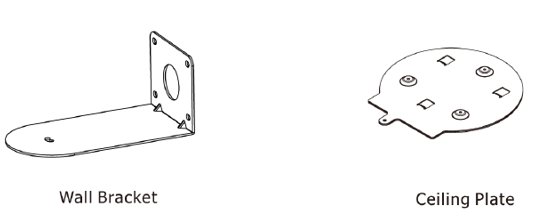

Accessories
Specification
Model No. | AMC-S3003 |
Image Sensor | 1/2.8"Exmor CMOS, 2.13MP |
HD Signal Format | 1080p/60,1080p/30,1080i/60,720p/60,720p/30, 1080p/50,1080p/25,1080i/50,720p/50,720p/25 |
Focal | f = 4.3mm - 129mm |
IRIS | F1.6 - F4.8 |
Zoom | Optical:30X, Digital:12X |
Shortest Focus Distance | 10 mm - 1,000mm |
Field of View | 63.7° - 2.3° |
Focus | Auto, Manual, PTZ Trigger AF, One push |
Min.Illumination | 0.01Lux(Color), 0.0015Lux(B/W) |
Shutter Speed | 1/1 - 1/10,000s |
AGC | Auto/Manual |
BLC | Auto, Indoor, Outdoor, One push, Manual, Auto Track |
AE Control | Auto, Manual, Shutter Priority, Aperture priority |
S/N Ratio | Above 50dB |
PTZ | |
Pan Range | -170° - +170° |
Tilt Range | -30° - +90° |
Pan Speed | 0.1° - +120°/s |
Tilt Speed | 0.1° - +90°/s |
Preset Number | 256 |
OSD | Yes |
Image Flip | Yes |
Interface | |
HD Video Output Interface | DVI-I(for DVI-D,HDMI, YPbPr, VGA,5-BNC),HD-SDI |
SD Video Output Interface | CVBS |
Control Interface | RS-232IN, RS232-OUT, RS422/RS485 |
General | |
Protocol | VISCA and Support Daisy Chain, PELCO-D, PELCO-P |
Power Supply | DC12V |
Spectra Address | 0 - 63 |
Power Consumption | Below 15W |
Working Temp | 0°C - +40°C |
Storage Temp | -20°C - +60°C |
Dimension | 226mm x 159mm x 206mm |
Weight | 1.7KG |
Color | Grey/White |
Application
