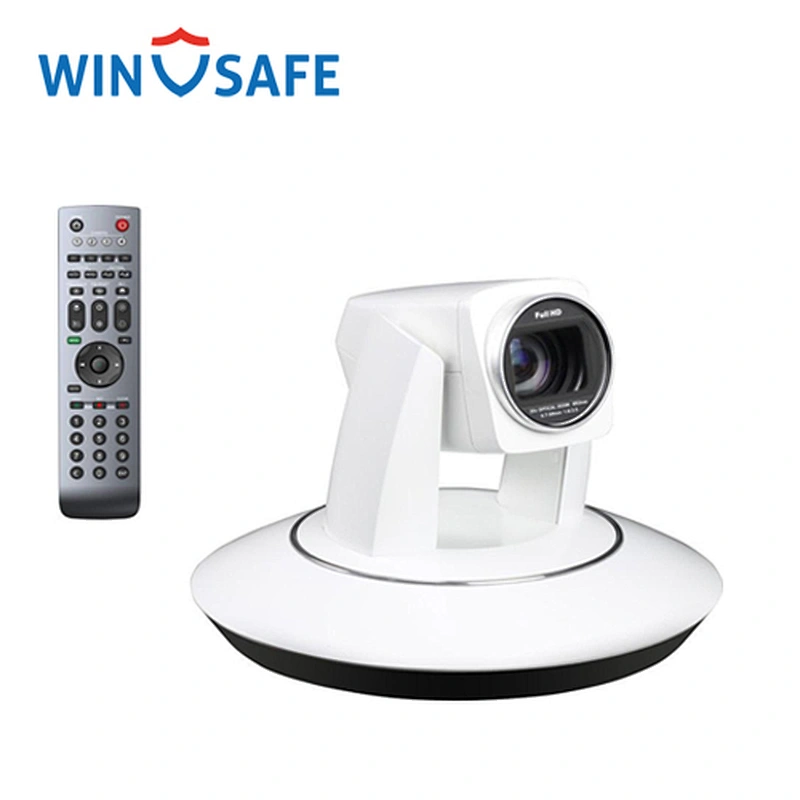

White Color Church SDI HD PTZ Video Conference Camera

Quantity:

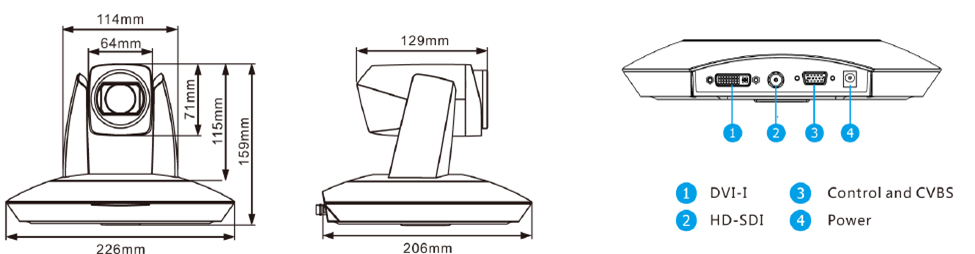

Dimensional Drawing

Features

※ 1/2.8"EXMOR CMOS image sensor, up to 2.14MP

※ 20X optical,12X digital zoom, up to 72.5° FOV

※ Video format,1080p/60,1080p/50,1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,720p/25

※ Simultaneously output of HD and SD videos

※ Video interface:DVI-I(for DVI-D, HDMI,YPbPr, VGA,5-BNC ect),HD-SDI

※ Control: RS-223IN, RS-232OUT, RS-422/RS-485 etc.

※ On-screen display menu with simple program

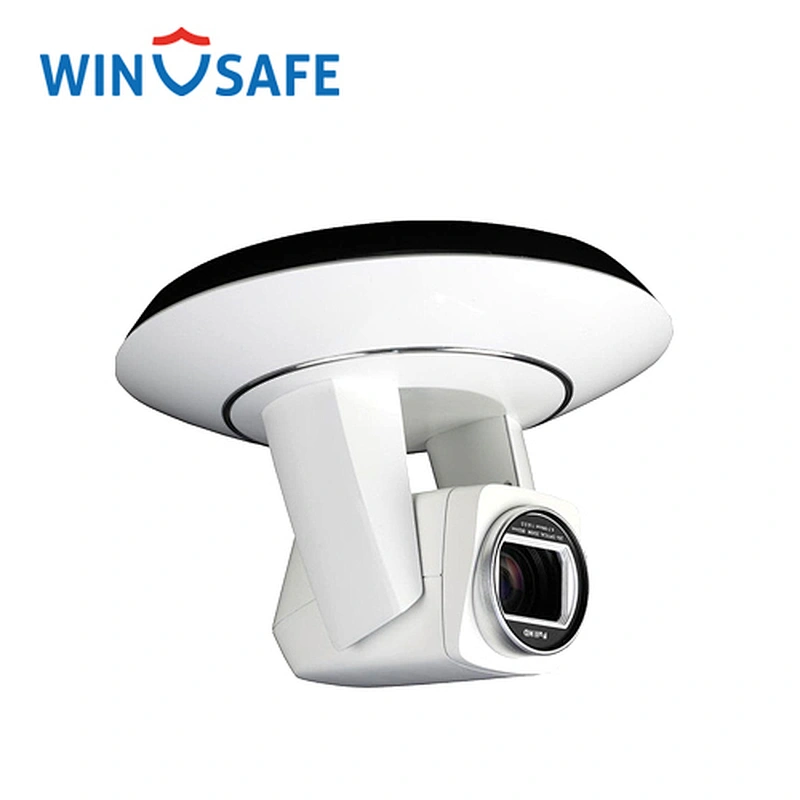

※ Has image flip function for stand and suspended installations

※ Support VISCA protocol, daisy chain

※ Come with IR remote controller

※ New design of PTZ mechanism with higher precision and reliability

Model No.	AMC-A2001	AMC-A1202
Image Sensor	1/2.8"Exmor CMOS, 2.14MP
HD Signal Format	1080p/60,1080p/50,1080/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,720p/25
SD Signal Format	NTSC,PAL
Focal	f = 4.7mm - 94mm	f = 3.9mm - 46.8mm
IRIS	F1.6 - F3.5	F1.6 - F2.8
Zoom	Optical: 20X, Digital: 12X	Optical: 12X, Digital: 12X
Field of View	59.5° - 2.9°
Focus	Auto, Manual, PTZ Trigger AF, One push
Min.Illumination	0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed	1/1 - 1/10,000s
AGC	Auto/Manual
BLC	Auto, Indoor, Outdoor, One push, Manual, Auto Track
AE Control	Auto, Manual, Shutter Priority, Aperture priority
S/N Ratio	Above 50dB
PTZ
Pan Range	-170° - +170°
Tilt Range	-30° - +90°
Pan Speed	0.1° - +120°/s
Tilt Speed	0.1° - +90°/s
Preset Number	256
OSD	Yes
Image Flip	Yes
Interface
HD Video Output Interface	DVI-I(for DVI-D,HDMI, YPbPr, VGA,5-BNC),HD-SDI
SD Video Output Interface	CVBS
Control Interface	RS-232IN, RS232-OUT, RS422/RS485
General
Protocol	VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Power Supply	DC12V
Spectra Address	0 - 63
Power Consumption	Below 15W
Working Temp	0°C - +40°C
Storage Temp	-20°C - +60°C
Dimension	226mm x 159mm x 206mm
Weight	1.7KG
Color	Grey
