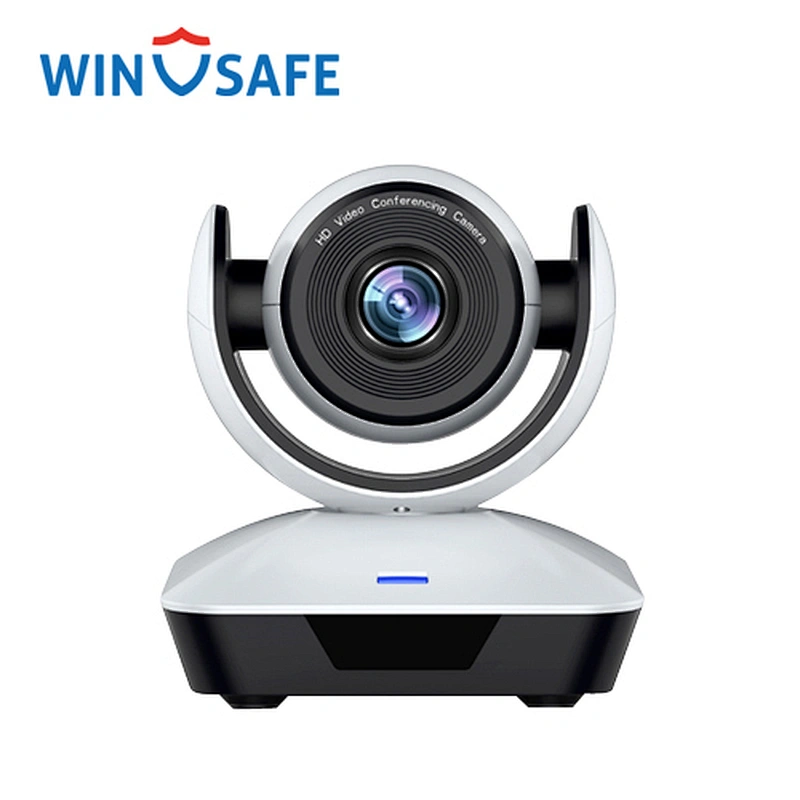

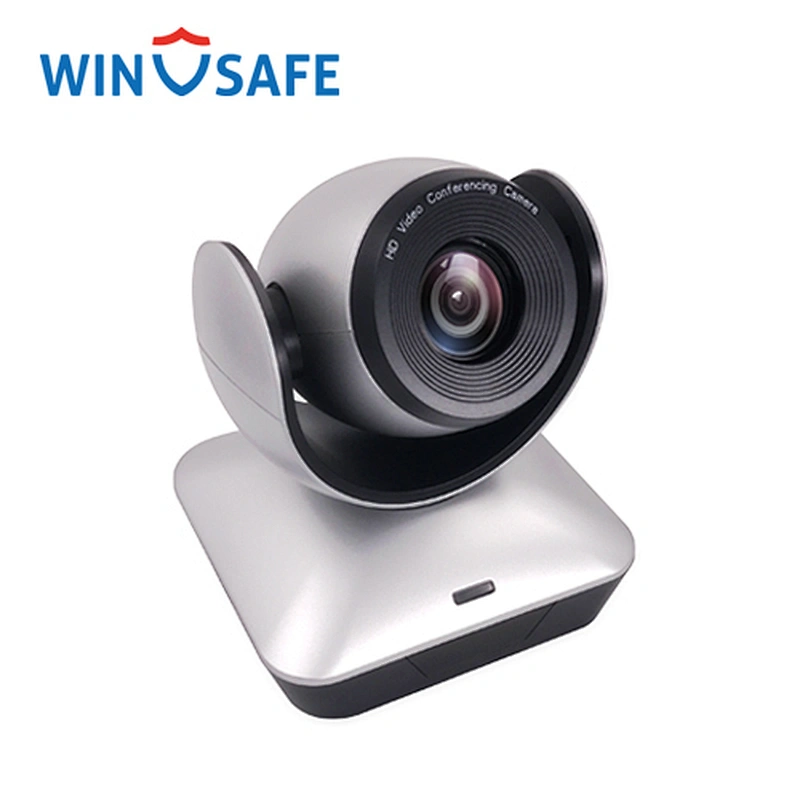

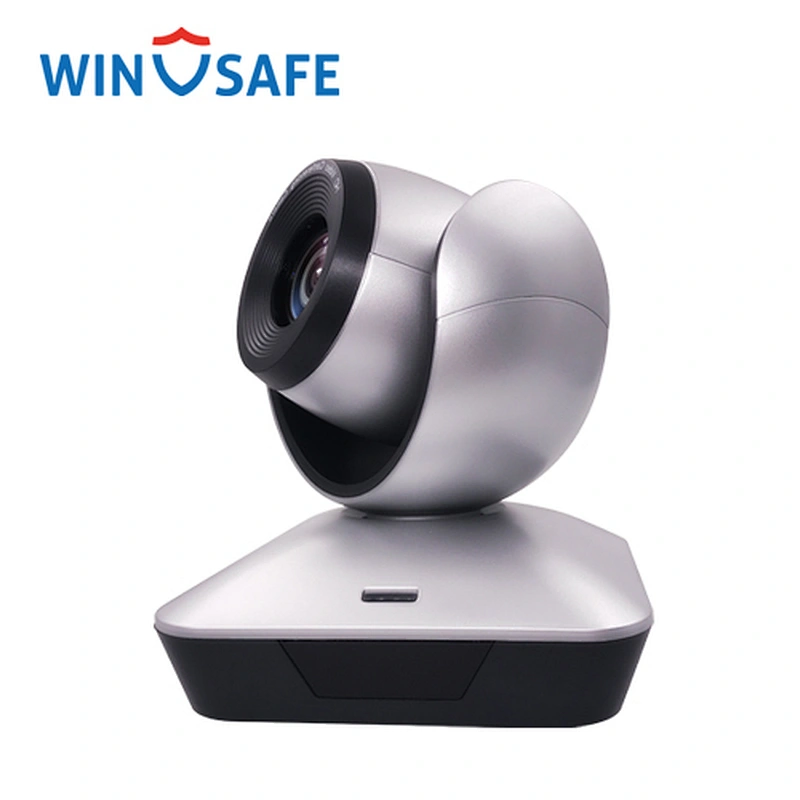

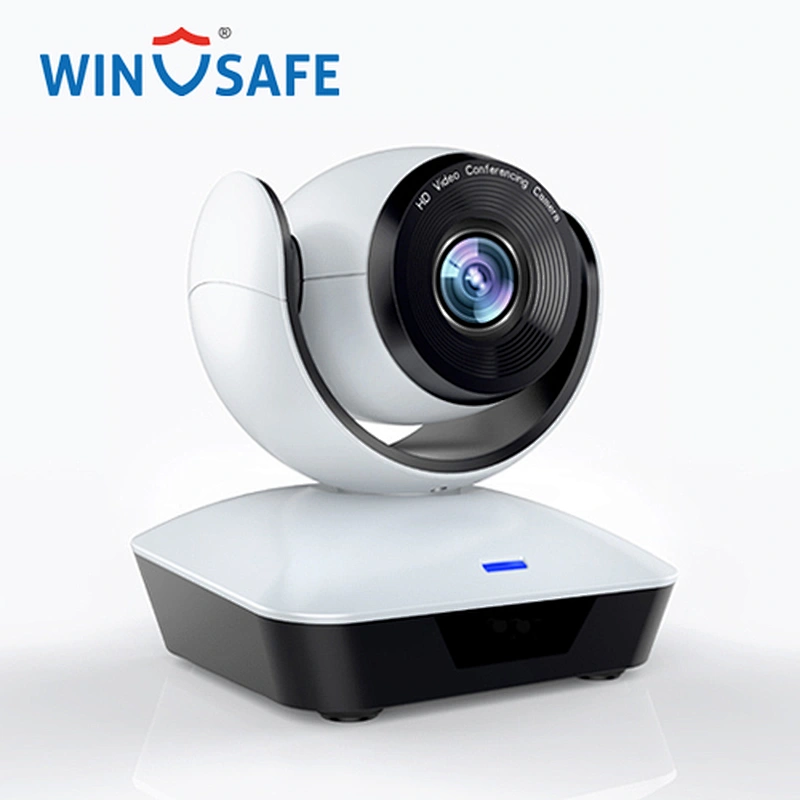

Mini USB 2.0 HD 10X Zoom PTZ Video Conference Camera

Quantity:

Advantages

※ Ultra crystal video quality: with Ambarella DSP 1/2.8 inch SONY sensor and high quality 10x lens

※ Fast and accurate focus performance

※ Easy firmware upgrade: no need to open the camera housing

※ Compatible with the majority of video conferencing software(UVC1.5 protocol standard)

※ Powerful functional remote controller

※ Multi language OSD menu: support English, Chines, Russia, Spanish

※ 2 years warranty time

Features

※ USB 2.0 high speed output

※ Zoom: 10X optical Zoom +12X Digital zoom

※ 1920x1080p 30fps high resolution

※ 62.5° field of view

※ Ultra smooth PTZ mechanism

※ Accurate PT motor control

※ Up to 128 presets

※ Effective RS232/RS485 seria control

※ WDR, 3D-noise reduction function

※ Image flip function support inverted installation

※ Mounts: Wall mount & in-ceilling mount available

※ Sony Visca and Pelco D/P protocol controls

Model No.	UHV-10X-U2S
Sensor	1/2.8 inch high quality, SONY CMOS Sensor
Video System	1920x1080P30/25, 1280X720P30/25
Zoom	10x optical zoom + 12x digital zoom
View Angle	6.43°(wide) - 62.5°(tele)
SNR	More than 50dB
Focal Length	f=4.7(wide) - 47mm(tele)
Minimum Lux	0.1Lux
White Balance	Auto/Manual
Focus	Auto/Manual
Iris	Auto/Manual
Electronic Shutter	Auto/Manual
Black Light Compensation	ON/OFF
Anti Tlicker	50Hz/60Hz/OFF
Pan Rotation Angle	- 170° - +170°
Tilt Roation Angle	- 30° - + 90°
Pan Rotation Speed	0° - 120° /s
Tilt Rotation Speed	0° - 80° /s
Preset	128 via RS232 output, 10 via remote controller
Video	USB2.0(MJPG fomat)
Control	RS232(Sony visca), USB 2.0(UVC1.5 protocol)
Power	DC12V
OSD Menu	English/Chinese
Dimension(W x H x W)	148mm x 132mm x 161mm
Package	280mm x 240mm x 240mm
Net Weight	0.9KG(2LBS)
