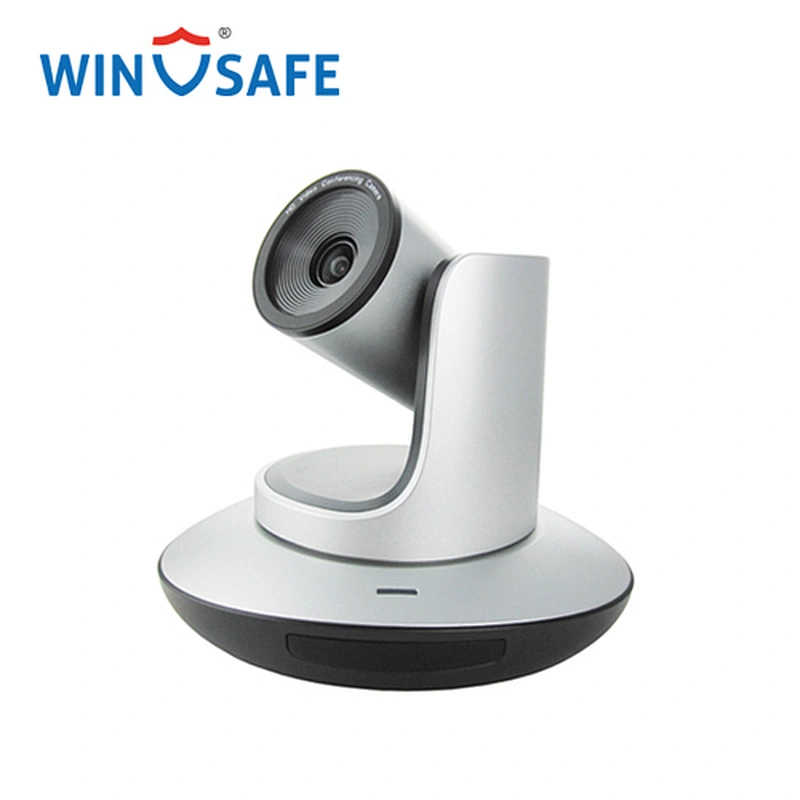

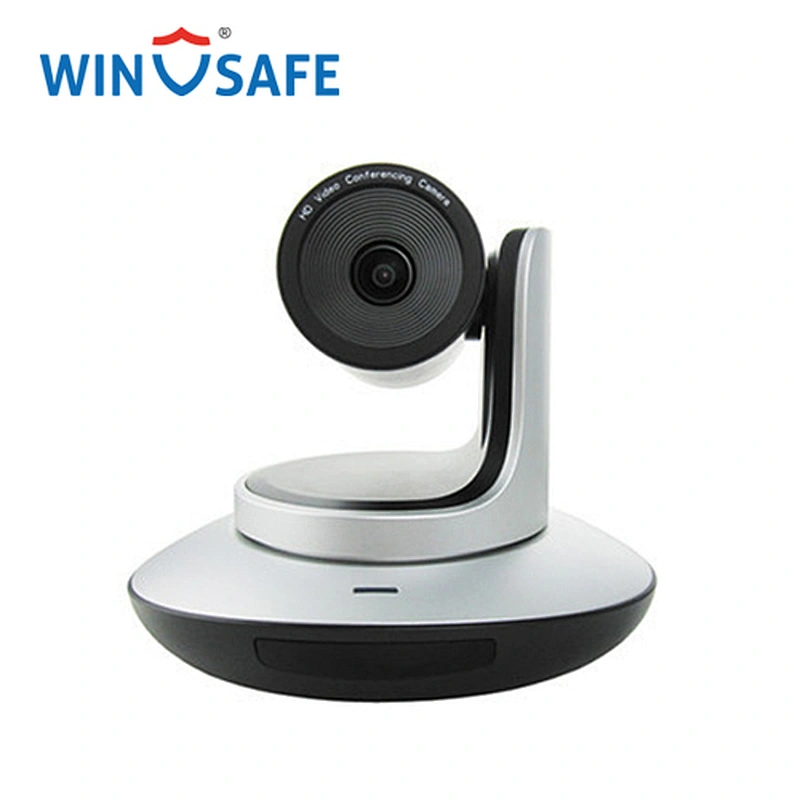

12X Zoom USB2.0 HD PTZ Video Conference Camera
12X Zoom USB2.0 HD PTZ Video Conference Camera
12X Zoom USB2.0 HD PTZ Video Conference Camera
12X Zoom USB2.0 HD PTZ Video Conference Camera
12X Zoom USB2.0 HD PTZ Video Conference Camera

12X Zoom USB2.0 HD PTZ Video Conference Camera

Model NO.
UHV-12X-U2S
Delivery
FOB
Minimum order quantity
1 piece
Country of Origin
China
Stock Time
5-10 work days Days
Quantity:

Advantages

※ Ultra crystal video quality: with Ambarella DSP 1/2.8 5MP Sensor and high quality 12x lens


※ Fast switching between different video formats: less than 1 second


※ Fast and accurate focus performance


※ Easy firmware upgrade: no need to open the camera housing


※ With powerful functional remote controller


※ FECC(Far and camera control) feature


※ Multi language OSD menu: support English, Chines, Russia, Spanish


※ 2 years warranty time

Features

Model No.UHV-12X-U2S
Sensor1/2.8 inch high quality, 5MP HD CMOS Sensor
Video System1920x1080p30/25,1280x720/60/50/30/25.
Zoom12x optical zoom + 2x digital zoom
View Angle6.3°(wide)  - 72.5°(tele)
Focal Lengthf=3.92(wide) - 47.32mm(tele)
Minimum Lux0.1Lux
White BalanceAuto/Manual
FocusAuto/Manual
IrisAuto/Manual
Electronic ShutterAuto/Manual
Black Light CompensationON/OFF
SNRMore than 50dB
Anti Flicker50Hz/60Hz/OFF
Pan Rotation Angle- 170° - +170°
Tilt Roation Angle- 30°  - + 90°
Pan Rotation Speed0°  - 120° /s
Tilt Rotation Speed0°  -  80° /s
Preset128 via RS232 output, 10 via remote controller
Control PortRS232(Sony Visca), USB2.0(UVC1.5 Protocol0
Video PortUSB2.0(MJPG format)
PowerDC12V
OSD MenuEnglish/Chinese
Dimension(W x H x W)220mm x 173mm x 117mm
Package320mm x 300mm x 310mm
Net Weight1.25KG(2.8LBS)
