Features
※ Superb High-definition Image:1/2.5"inch high quality CMOS sensor. Resolution is up to 4K with frame rate up to 30fps
※ Wide FOV:83° large wide angle and small distortion lens: 3x zoom lens
※ Advanced Focusing Technique：VCM motor auto-focusing lens, advanced auto-focusing algorithm makes the camera auto focusing rapidly, accurately and stably.
※ Low Noise and High SNR: low Noise CMOS effectively ensure high SNR of camera video

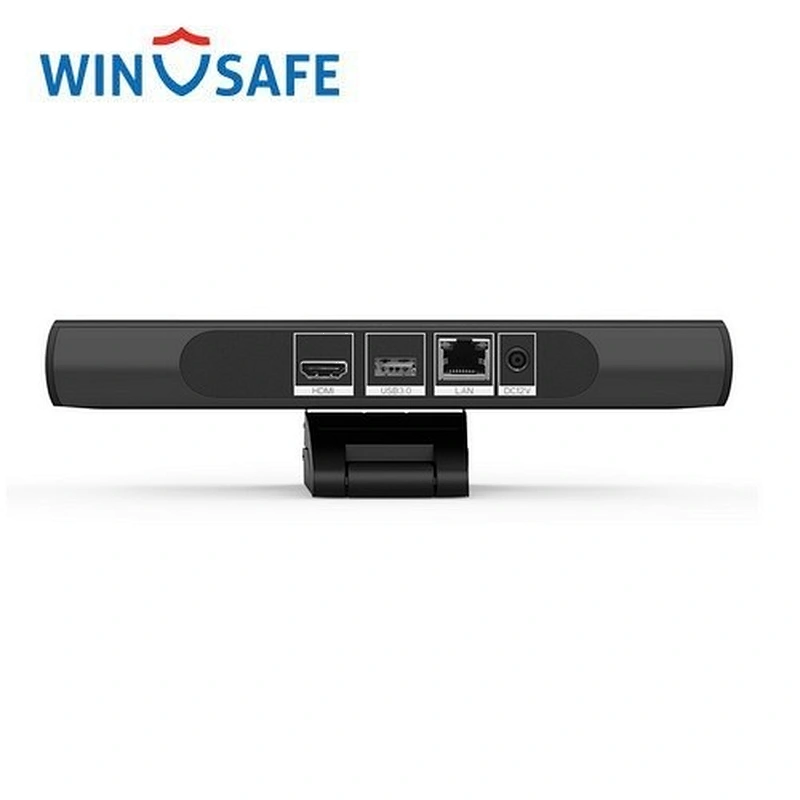

※ Multiple Video Output Interfaces: Support HDMI,USB3.0 and LAN.
※ Multiple Audio Video Compression: Support H.265/H.264/MJPEG video compression; supports AAC, MP3, PCM audio compression; support up to 3840x2160 resolution
30fps compression
※ Stereo sound: Built-in pickup to present clear stereo sound, no external device required
※ POE: LAN interface supports POE function
※ Built-in Pickup: two built-in MIC pickups
※ Multiple Installation: Staandard equipped with mold clamp, easy to install on any devices, such as LCD screen, laptop, table and tripod
※ Easy to Use: No need to download driver, USB output interface, plug and play
※ Wide Application: personal video conferencing, enterprise video conferencing, collaboration meeting etc.
Dimensions
Specification
| Model No. | UHV-300-U3 |
| Camera Parameter | |
| Image Sensor | 1/2.5"inch High Quality 4K CMOS sensor |
| Effective Pixesl | 8.28MP 16:9 |
| Video Format | HDMI Video Ouput Format: 1080p30/25/29.97; 1080i60/50/59.94; 720p30/25/29.97 USB 3.0 Video Output Format:up to 3840x2160p30 USB 3.0 is compatible with USB2.0 output |
| Digital Zoom | 3X |
| View Angle | 93.5°/83°/53.1° |
| Min.Illumination | 0.5Lux(F1.8, AGC ON) |
| Lens | 3.5mm |
| Aperture | 2.0+5% |
| DNR | 2D & 3D DNR |
| White Balance | Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus | Auto/Manual/One Push |
| Exposure | Auto/Manual |
| Backlight contrast | ON / OFF |
| SNR | Above 50dB |
| Input/Outpur Interface | |
| Video Interfaces | USB3.0, HDMI, LAN(POE) |
| Video Compression Format | MJPEG, H.264,H.265 |
| Audio Input Interface | Built in high sensitive digital pickup |
| Other Parameter | |
| Input Voltage | DC5V |
| Input Current | 1A (Max.) |
| Power Consumption | 5W (Max.) |
| Store Temperature, Humidity | - 10°C - +60°C, 20% - 95% |
| Working Temperature, Humidity | -10°C - +50°C, 20% - 80% |
| Dimension(WxHxD) | 220mm x 92.75mm x 56mm |
