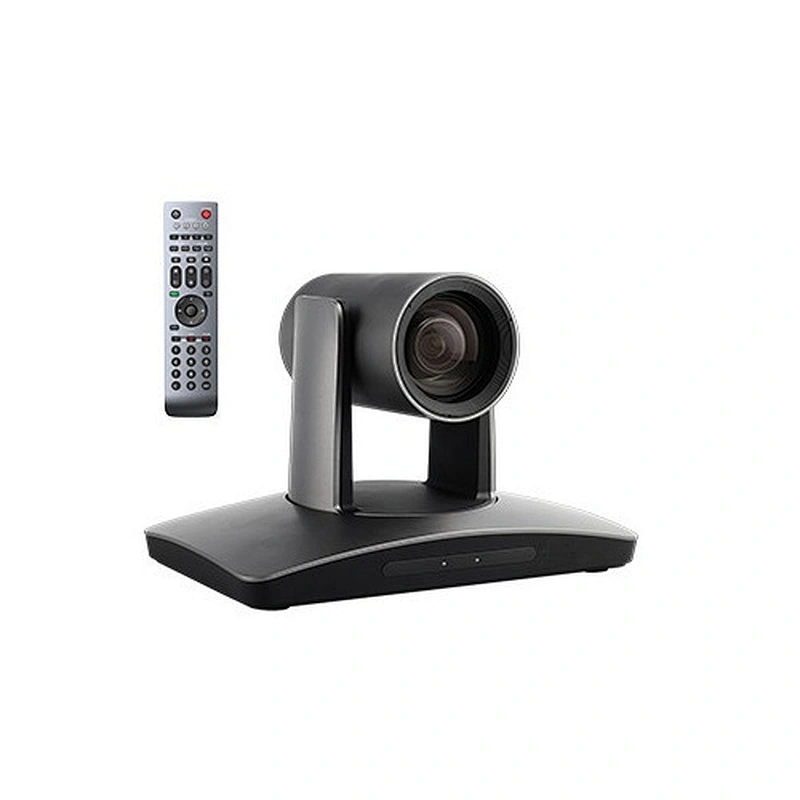

AMC E IP + SDI 20X HD PTZ Video Conference Camera

Quantity:

Feature

※ H.265 video compression,dual stream

※ Compatible with ONVIF,RTSP.RTMP protocols

※ 2.14MP,1/2.8"CMOS

※ With OSD menu,support image flip

※ Come with IR remote comtroller

※ Support standard VISCA & Pelco communication protocols

※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,

※ Special mechanical PTZ driving system,ensure precise positioning

Technical Specification

Model No.	AMC-E220N
Image Sensor	1/2.8"Exmor CMOS, 2.14MP
Video Standard(HD)	1080p60,1080p/30,1080i/60,720p/60,720p/30
Focal	f = 4.7mm - 94mm
IRIS	F1.6 - F3.5
Zoom	Optical: 20X, Digital: 12X
Field of View	59.5° - 2.9°
Focus	Auto, Manual, PTZ Trigger AF, One push
Min.Illumination	0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed	1/1 - 1/10,000s
AGC	Auto/Manual
White Balance	Auto, Indoor, Outdoor, One push, Manual, Manual, Auto Track
AE Control	Auto, Manual, Shutter Priority, Iris Priority
S/N Ratio	Above 50dB
PTZ
Pan Range	-170° - +170°
Tilt Range	-30° - +90°
Pan Speed	0.1° - +120°/s
Tilt Speed	0.1° - +80°/s
Preset Number	256
OSD	Yes
Image Flip	Yes
Network
Max,Image Size	1920x1080
Frame Rate	HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080)
Video Compression	H.265,H.264
Audio Compression	AAC
Protocol	HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF
Dual Stream	Support
Simultaneous Users	up to 10 users
Interface
HD Video Output Interface	DVI-D,HD-SDI
Control Interface	RS-232IN/IR, RS-232OUT/RS-485
Ethernet	RJ45,100M
General
Control Protocol	VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Address	0 - 63
Power Supply	DC12V
Working Temp	0°C - +40°C
Storage Temp	-20°C - +60°C
Dimension	243mm x 145mm x 163mm
Weight	1.2KG
