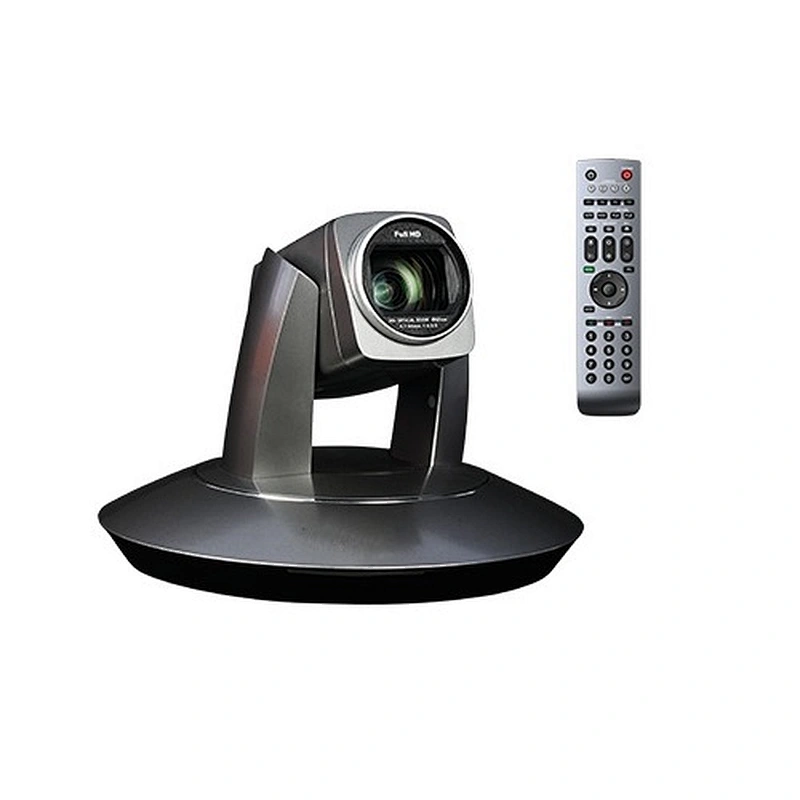

AMC IP + SDI 20X PTZ Video Conference Camera

Quantity:

Features

※ 1/2.8"EXMOR CMOS image sensor, up to 2.14MP

※ 20X optical,12X digital zoom, up to 72.5° FOV

※ Video format,1080p/60,1080p/50,1080p/30,1080p/25,1080i/60,1080i/50,720p/60,720p/50,720p/30,720p/25

※ Simultaneously output of HD and SD videos

※ Video interface:DVI-I(for DVI-D, HDMI,YPbPr, VGA,5-BNC ect),HD-SDI

※ Control: RS-223IN, RS-232OUT, RS-422/RS-485 etc.

※ On-screen display menu with simple program

※ Has image flip function for stand and suspended installations

※ Support VISCA protocol, daisy chain

※ Come with IR remote controller

※ New design of PTZ mechanism with higher precision and reliability

Technical Specification

Model No.	AMC-A2001N	AMC-A1202N
Image Sensor	1/2.8"Exmor CMOS, 2.14MP
HD Signal Format	1080p/60,1080p/30,1080i/60,720p/60,720p/30
Focal	f =4.7mm - 94mm	f = 3.9mm - 46.8mm
IRIS	F1.6 - F3.5	F1.6 - F2.8
Zoom	Optical: 20X, Digital: 12X	Optical: 12X, Digital: 12X
Field of View	59.5° - 2.9°
Shortest Focus Distance	10mm -1,000mm
Focus	Auto, Manual, PTZ Trigger AF, One push
Min.Illumination	0.5Lux(Color), 0.1Lux(B/W)
Shutter Speed	1/1 - 1/10,000s
AGC	Auto/Manual
White Balance	Auto, Indoor, Outdoor, One push, Manual, Auto Track
AE Control	Auto, Manual, Shutter Priority, Iris priority
S/N Ratio	Above 50dB
PTZ
Pan Range	-170° - +170°
Tilt Range	-30° - +90°
Pan Speed	0.1° - +120°/s
Tilt Speed	0.1° - +90°/s
Preset Number	256
OSD	Yes
Image Flip	Yes
Network
Max.Image Size	1920x1080
Frame Rate	HD: 50Hz:50fps(1920x1080) ; 60Hz: 60fps(1920x1080)
Video Compression	H.265 , H.264
Audio Compression	AAC
Protocol	HTTP, RTP, TCP,UDP, RTSP, RTMP, ONVIF
Dual stream	Support
Simultaneous Users	Up to 10 users
Interface
Ethernet	RJ45, 100M
Video Output(HD)	HD-SDI
Control Interface	RS232IN, RS232OUT/RS-485
General
Protocol	VISCA and Support Daisy Chain, PELCO-D, PELCO-P
Spectra Address	0 - 63
Power Consumption	Below 15W
Working Temp	0°C - +40°C
Storage Temp	-20°C - +60°C

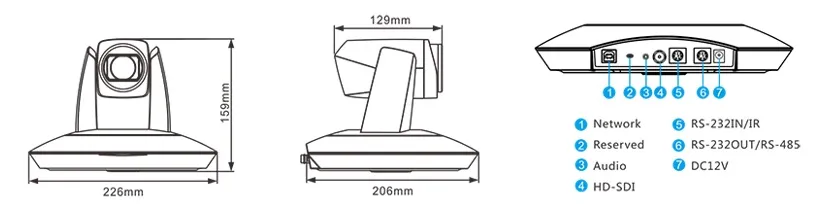

Dimension	226mm x 159mm x 206mm
Weight	1.7KG
Color	Grey
