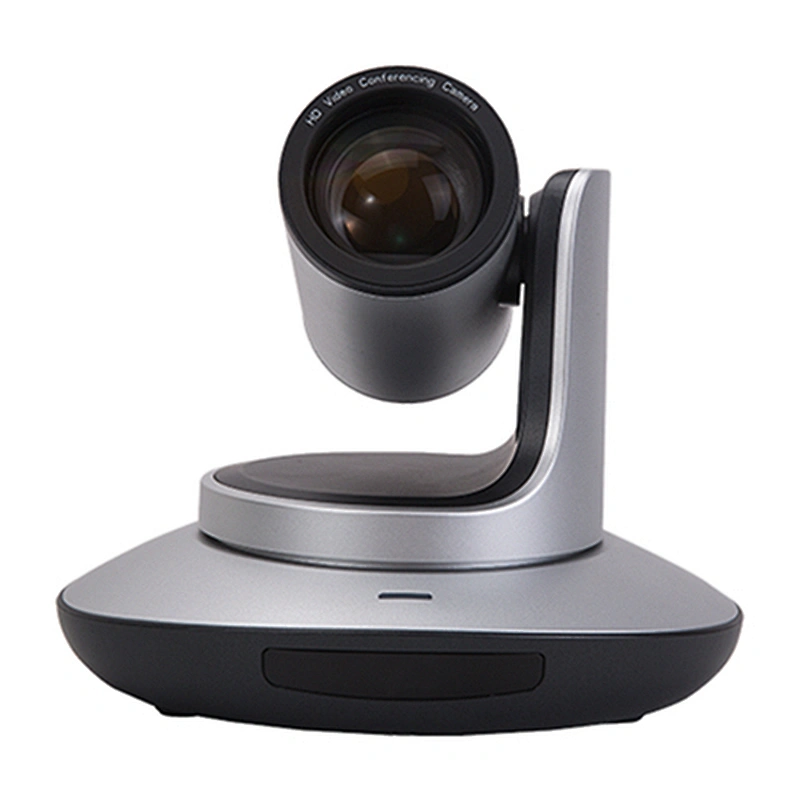

UHV-30X-S-R 30X Lowlux Broadcast HD-SDI&HDMI PTZ Video Camera

Model NO.: UHV-30X-S-R
Delivery: EXW

Quantity:

Product Description

WINSAFE UHV-30X-S-R is a real broadcast level 30x zoom 3G-SDI&HDMI full HD PTZ Video Camera, very sensitive to low lux, particularly used for large space A/V system, such as auditorium, parliament, house of worship, court room, legislative space and broadcast video prodution etc.

Feature

※ Adopt advanced broadcast level ISP, Sony 1/1.8"12MP sensor, to provide crystal clear, noiseless and realistic color with full details even at completely low lux condition
※ Broadcast level video steaming 1080p59.94/50, 1080i/50 via 3G-SDI and DVI-I(HDMI) synchronously
※ 30x wide range optical zoom, with 60 degree FOV.
※ Smart and compact mechanism, smooth and silent PTZ movement
※ RS232, RS485 control and field firmware update
※ Precise and fast focus, support 128 presets
※ 7 cameras daisy chain supported
※ Available to install on desk, monitor, tripod or up-side down in-ceiling
※ Multi language available: Chinese, English, Spanish, Russia

Technical Specification

Model No.	UHV-30X-S-R
Camera
Sensor	1/1.8"inch high quality 12MP HD CMOS sensor
Frame Rate	DVI-I(HDMI) port	3G-SDI port
	1080p59.94/50;1080p29.97/25 1080i59.94/50 720p29.97/25	1080p59.94/50;1080p29.97/25 1080i59.94/50 720p59.94/50 720p29.97/25
Video Format	YUV
Lens Zoom	30X optical zoom
Focal Length	f=4.7(wide) - 135mm(tele)
View Angle	3°(wide) - 60°(tele)
Noise Reduction	2D/3D
Minimum Lux	0.005Lux(DDS ON)
White Balance	Auto/Manual
Focus	Auto/Manual
Iris	Auto/Manual
Electronic Shutter	Auto/Manual
BLC	Auto/Manual
Mechanism	0.2Lux(Day), 0.1Lux(Night), 0.005Lux(DSS on)
Pan Rotation Angle	-170° - + 170°
Tilt Rotation Angle	-35° - +90°
Pan Rotation Speed	0° - 120°/s
Tilt Rotation Speed	0 - 80°/s
Preset	128 presets via RS232, 10 presets via remote controller
Control	RS232/RS485/Remote Controller
Video Port	DVI-I, 3G-SDI
Input voltae	DC12V
Camera Dimension	220mm x 173mm x 117mm
Package Dimention	32cm x 30cm x 31cm
Package Content	Camera, Remote Controller, RS232 cable, Power Supply
