| Features | |||||||||
| ※ Superb High-definition Image:1/2.5"inch high quality CMOS sensor. Resolution is up to 4K with frame rate up to 30fps ※ Wide FOV:83° large wide angle and small distortion lens: 3x zoom lens ※ Advanced Focusing Technique：VCM motor auto-focusing lens, advanced auto-focusing algorithm makes the camera auto focusing rapidly, accurately and stably. ※ Low Noise and High SNR: low Noise CMOS effectively ensure high SNR of camera video ※ Multiple Video Output Interfaces: Support HDMI,USB3.0 and LAN. ※ Multiple Audio Video Compression: Support H.265/H.264/MJPEG video compression; supports AAC, MP3, PCM audio compression; support up to 3840x2160 resolution 30fps compression ※ Stereo sound: Built-in pickup to present clear stereo sound, no external device required ※ POE: LAN interface supports POE function ※ Built-in Pickup: two built-in MIC pickups ※ Multiple Installation: Staandard equipped with mold clamp, easy to install on any devices, such as LCD screen, laptop, table and tripod ※ Easy to Use: No need to download driver, USB output interface, plug and play ※ Wide Application: personal video conferencing, enterprise video conferencing, collaboration meeting etc. | |||||||||

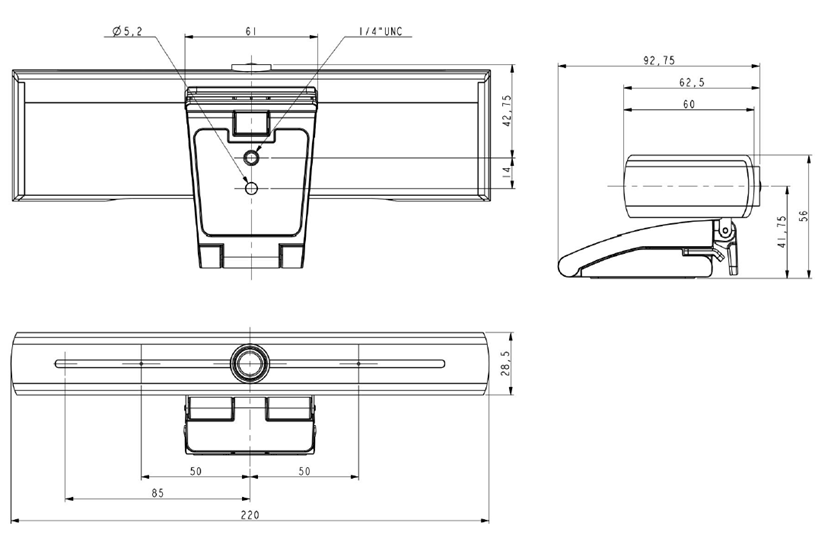

| Dimension(mm) | |||||||||
 | |||||||||
| Technical Specification | |||||||||
| Model No. | UHV-300-U3 | ||||||||
| Camera Parameter | |||||||||
| Image Sensor | 1/2.5"inch High Quality 4K CMOS sensor | ||||||||
| Effective Pixesl | 8.28MP 16:9 | ||||||||
| Video Format | HDMI Video Ouput Format: 1080p30/25/29.97; 1080i60/50/59.94; 720p30/25/29.97 USB 3.0 Video Output Format:up to 3840x2160p30 USB 3.0 is compatible with USB2.0 output | ||||||||
| Digital Zoom | 3X | ||||||||
| View Angle | 93.5°/83°/53.1° | ||||||||
| Min.Illumination | 0.5Lux(F1.8, AGC ON) | ||||||||
| Lens | 3.5mm | ||||||||
| Aperture | 2.0+5% | ||||||||
| DNR | 2D & 3D DNR | ||||||||
| White Balance | Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K | ||||||||
| Focus | Auto/Manual/One Push | ||||||||
| Exposure | Auto/Manual | ||||||||
| Backlight contrast | ON / OFF | ||||||||
| SNR | Above 50dB | ||||||||
| Input/Outpur Interface | |||||||||
| Video Interfaces | USB3.0, HDMI, LAN(POE) | ||||||||
| Video Compression Format | MJPEG, H.264,H.265 | ||||||||
| Audio Input Interface | Built in high sensitive digital pickup | ||||||||
| Other Parameter | |||||||||
| Input Voltage | DC5V | ||||||||
| Input Current | 1A (Max.) | ||||||||
| Power Consumption | 5W (Max.) | ||||||||
| Store Temperature, Humidity | - 10°C - +60°C, 20% - 95% | ||||||||
| Working Temperature, Humidity | -10°C - +50°C, 20% - 80% | ||||||||
| Dimension(WxHxD) | 220mm x 92.75mm x 56mm | ||||||||
| Application | Indoor | ||||||||
