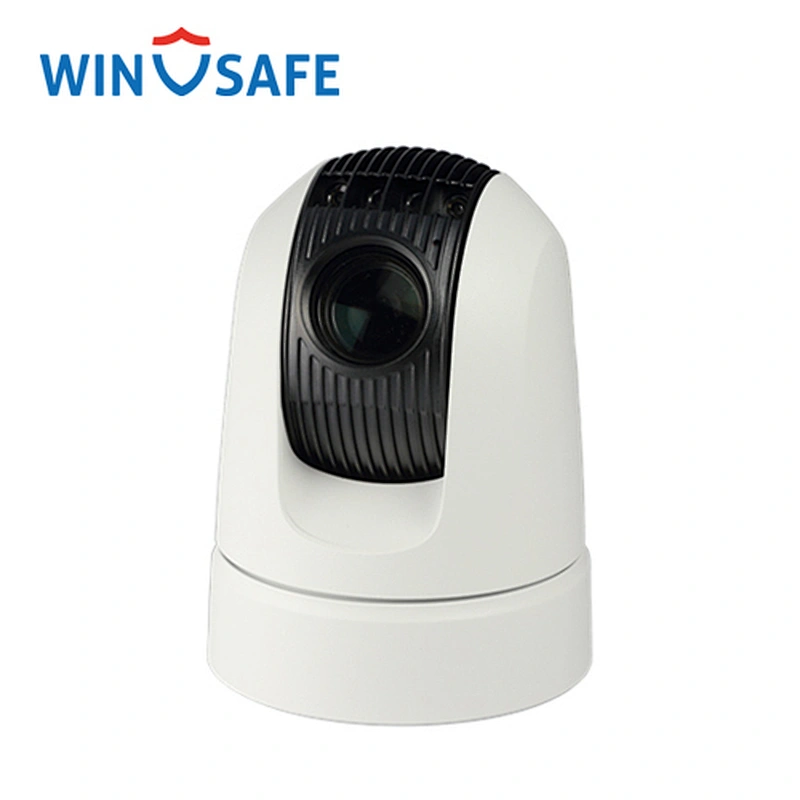

1080P 20X HD-SDI IP Rugged PTZ Camera

Model NO.: AC3-A2001N-IR
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Month
Country of Origin: China
Stock Time: 5-7 Days

Quantity:

Product Description

Feature

※ 1/2.8” CMOS, 2.14MP, 20X optical zoom;
※ Network video maximum support 1080P30;
※ Support CVBS standard clear video output;
※ Support H.265, H.264 video compression, support dual stream;
※ Support multi level video quality configuration;
※ ONVIF & RTSP Compliant;
※ Efficient 60m IR distance;
※ Wide dynamic range, ICR day/night;
※ Soft PTZ address, protocol and baud rate self-adpative;
※ Waterproof index: IP66;
※ 10.8~28V voltage input;
※ Auto power-off with low power supply.

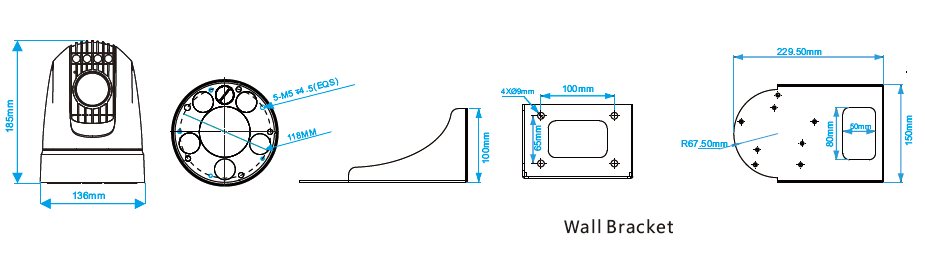

Dimensional Drawing

Technical Specification

Model No.	AC3-A2001N-IR
Camera
Image Sensor	2.14MP,1/2.8"CMOS
Active Pixel	1920(H) x 1080(V)
Signal Sytem(NET)	HD:1080p30 / 1080p25 / 1080i60 / 1080i50 / 720p60 / 720p50 / 720p30 / 720p25
Signal System(SD)	PAL / NTSC
Min.Illumination	Color: 0.5Lux; B/W:0.1Lux
White Balance	Auto / Manual
Focus	Auto / Manual
Exposure	Auto / Manual
S/N Ratio	Note less than 50 Db
BLC	On / Off
WDR	On / Off
Digital Noise Reduction	1 - 5Steps/OFF
Digital Image Stabilization	No
Day/Night	Auto / Manual
Lens
Optical Zoom	20X
Digital Zoom	12X
Lens	f=4.7mm - 94mm
IRIS	F1.6 - F3.5
View Angle	59.4° (wide) to 2.9° (tele)
PTZ
Pan Range	360° Continuous
Pan Speed	0.1° - 60°/s, adjustable, Preset Speed: 60°/s
Tilt Range	- 15 ° - 90° with auto flip
Tilt Speed	0.2° - 60°/s, adjustable, Preset Speed:60°/s
Preset Number	256
Preset Precision	±0.2°
IR Light
IR Wave Length	850nm
Range	60m
Switch	Auto / Manual
Network
Image Resolution	1920 x 1080@30fps
Image Compression	H.264, H.265
Audio Compression	AAC
Protocol	HTTP, RTSP, TCP, UDP, ONVIF
No.of User Access	Up to 10
Dual Stream	Support
Interface
Audio Interface	1 Line in, 1 Line out
Video Output(SD)	CVBS1.0V(p-p)/75Ω PAL or NTSC(optional)
Ethernet Interface	RJ45, 10/100M
Comm. Interface	RS-485
General
OSD Lanuage	English
Address	0 - 255
Comm.Protocol	PELCO-P / PLECO-D(self-adaptive)
Protocol	2400bps, 4800bps,9600pbs,19200bps(self-adaptive)
Voltage	DC 10.8 - 28V
Power	Min: 9W; Max: 20W
Working Temperature	-35°C - +65°C
IP Code	IP66
Dimensions	Standard(Without Damper): Φ136(mm) x 185(mm)
Weight	Standard(Without Damper): 2.1(±0.2)kg
