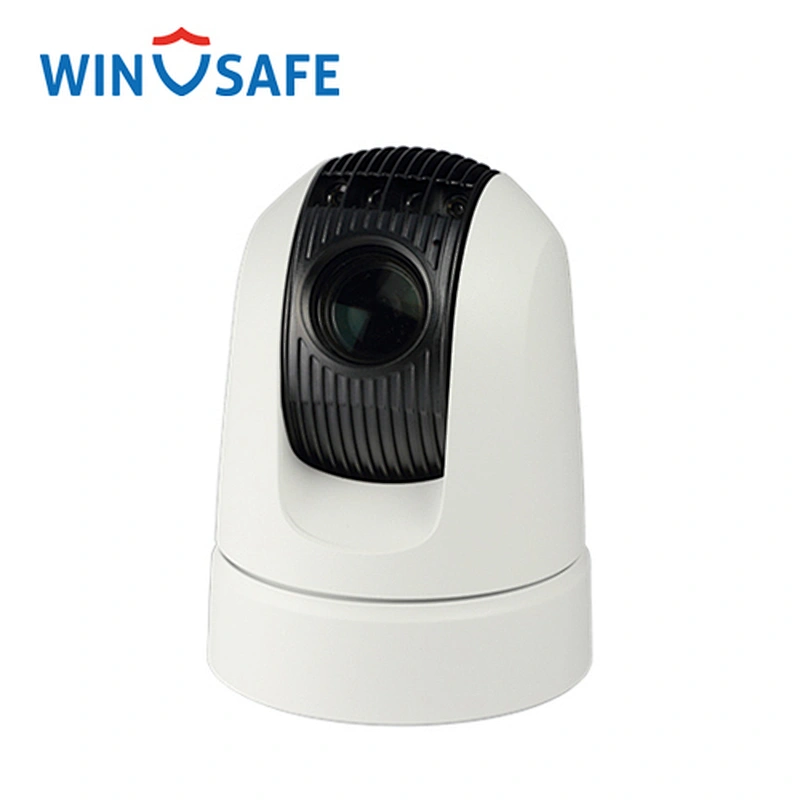

Vehicle Analog PTZ Camera With Image flip and Pelco D/P Support

Vehicle Analog PTZ Camera With Image flip and Pelco D/P Support

Model NO.: AC3S-3603S-IR
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Month
Country of Origin: China
Stock Time: 7 Days

Quantity:

Product Description

Features

※ Aluminum housing
※ IP66 weatherproof
※ Digital image stabilization
※ Efficient 60M IR distance
※ Wide range of voltage input
※ Sony 28x/36x zoom module, D/N
※ Self-adaption of protocol & baud rate
※ Image flip for stand/suspended installation
※ Special design of drive system, PTZ positioning prcision up to +/-0.05 degree

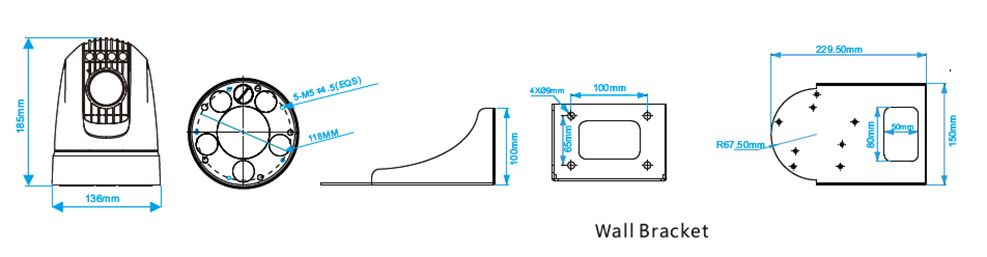

Dimensional Drawing

Technical Specification

Model No.	AC3-S3603-IR	AC3-S2801-IR
Camera
Image Sensor	1/4"SONY EX-View HAD CCD
Effective Pixel	PAL: 752(H) x 582(V); NTSC:768(H) x 494(V)
Resolution	550TVL
Video System	PAL/NTSC
Optical Zoom	36X	28X
Digital Zoom	12X
Min Illumination	Color Mode:1/60 mode:1.4Lux; 1/4s mode:0.1Lux BW Mode: 0.1Lux(Lights On); 0.01Lux(Lights off)	Color Mode:1/60 mode:0.25Lux; 1/4s mode:0.16Lux BW Mode: 0.1Lux(Lights On); 0.0015Lux(Lights off)
White Balance	Auto
Focus	Auto/Manual
Exposure	Auto/Manual
S/N Ratio	Not less than 50DB
BLC	On/Off
WDR	On/Off	No
Digital Noise Reduction	1-5 steps/Off
Day/Night	Auto/Manual
Lens	F1.6 - F4.5, f=3.4 - 122.4mm	F1.35 - F3.7, f=3.5 - 98mm
View Angle	57.8°(wide) to 1.7°(tele)	55.8°(wide) to 2.1°(tele)
PTZ
Pan Range	360° Continuous
Pan Speed	0.1° - 60°/s, adjustable
Tilt Range	-15° - 90°(Auto Flip)
Tilt Speed	0.2° - 60°/s, adjustable
Preset	256
Preset Predicion	±0.05°
IR Light
IR Wave Lenth	850nm
Range	60m
Switch	Auto/Manual
General
OSD	English
Comm. Interface	RS485
Protocol	PELCO-P / PELCO-D(self-adaptive)
Adress	0 - 255
Video Output	CVBS
Baud Rate	2400bps, 4800bps, 9600bps, 19200bps(self-adaptive)
Power Consumption	0.5W(Standby); 20W(Max)
Working Temperature	-35°C - +65°C
Voltage	DC9V - 36V
IP Code	IP66
Dimensions	Standard(Without Damper) Φ136(mm) x 185(mm)
Weight	Standard(Without Damper) 2.0(±0.2)kg
