※ Built in 2 megapixel(resolution up to 1080P) 10x optical zoom module
※ 360 degree continuous rotation, support cruise, line scan, preset, park function and so on
※ Support 3D positioning function, can accurately locate and monitor the selected screen.
※ Imported high-power infrared light, night vision distance up to 60meters
※ PTZ support network control, also support RS485 interface control
※ Shockproof design, suitable for vehicle installation environment
※ Vehicle mounting, optional magnet suction cup mounting
※ Ultra-wide voltage design, input voltage range supports 9-36V
※ Equipped with DC-DC isolated wide voltage input power supply module, support input undervoltage protection, output short circuit, overvoltage protection,overcurrent protection
※ Standard version comes with network signal output,support Hikvision / Dahua and other mainstream mobile DVRs.
※ Support AI function, face capture recognition, human shape detection, human-vehicle license plate video structuring, etc. (optional)
※ AHD/TVI/CVI analog HD format version can be selected (SDI output version can be customized separately)
Model No. | CAHC-S100 |
Protocol | ONVIFprotocol, GB28181protocol, support Hikvision,Dahua private protocol |

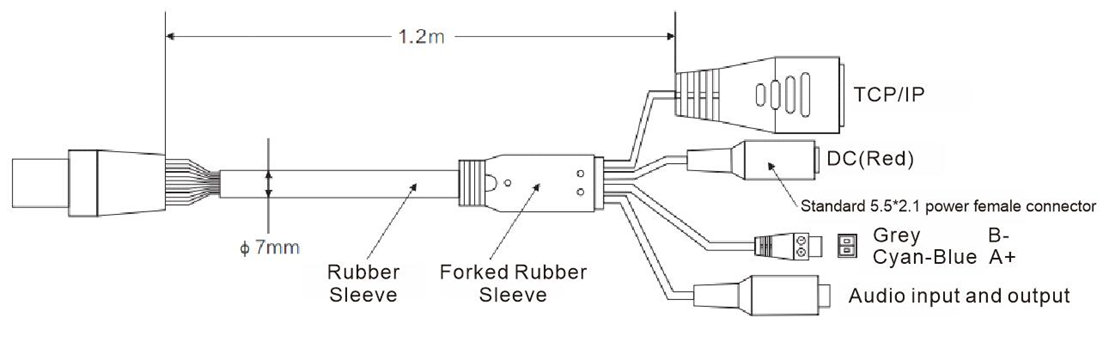

Input | Built in 1CH video, 1CH audio |
PTZ | |
Pan Range | 360° continuous rotation |
Tilt Range | -30°-90° |
Rotation Speed | pan control speed:100°/s, tilt control speed:60°/s |
Preset | 255x |
Patrol | 4x |
Line scan | Support |
Park function | Support |
IR distance | 60 meters |
Camera | |
Sensor | 1/2.8"High performance low illumination CMOS sensor (IMX327) |
Resolution | 1080P (1920*1080 25/30 frames/sec) |
Optical zoom | 10x |
Focus Lens | F=4.7~47mm |
Iris | F1.6~F2.4 |
View Angle | Wide:67.6°×54.8° Tele:7.15°×5.8° |
Illumination | F1.6(W),50 IRE)0.05 lx(1/30s) IR-CUT On,0.005 lx(1/4s) IR-CUT Off |
WDR | WDR |
Day-night mode | ICR cut switch |
IP & Audio | |
Compression | H.264/H.265 |
Bit Rate | 32Kbps - 16Mbps |
Fram Rate | 1-25fps(50Hz) 1-30fps(60Hz) |
Stream | Support dual stream, main stream (1080P; 960P: 720P), sub stream (D1; VGA; CIF) |
Snap | Support Resolution: D1/720P/1080P(default) |
Audio input | Optional |
Compression Standard | G711 |
Sampling Rate | 16K, 32K, 64K, 128K |
General | |
Power Supply | DC12.6V 3A |
Protection Grade | IP67 |
Working Temperature | -30-60° |
Working Humidity | 0~95% No condensation |
Working voltage | Ultra-wide voltage design 9~36V |

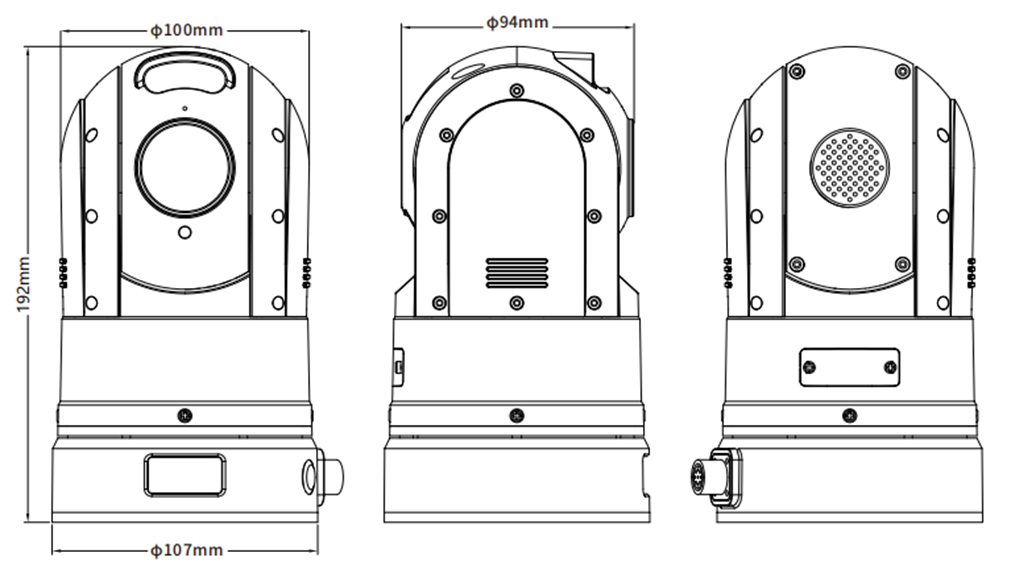

Dimension | MaxΦ107*100*192mm |
Weight | Net weight 1.98kg |
Installation | Vehicle mounted,optional magnetic suction cup |
