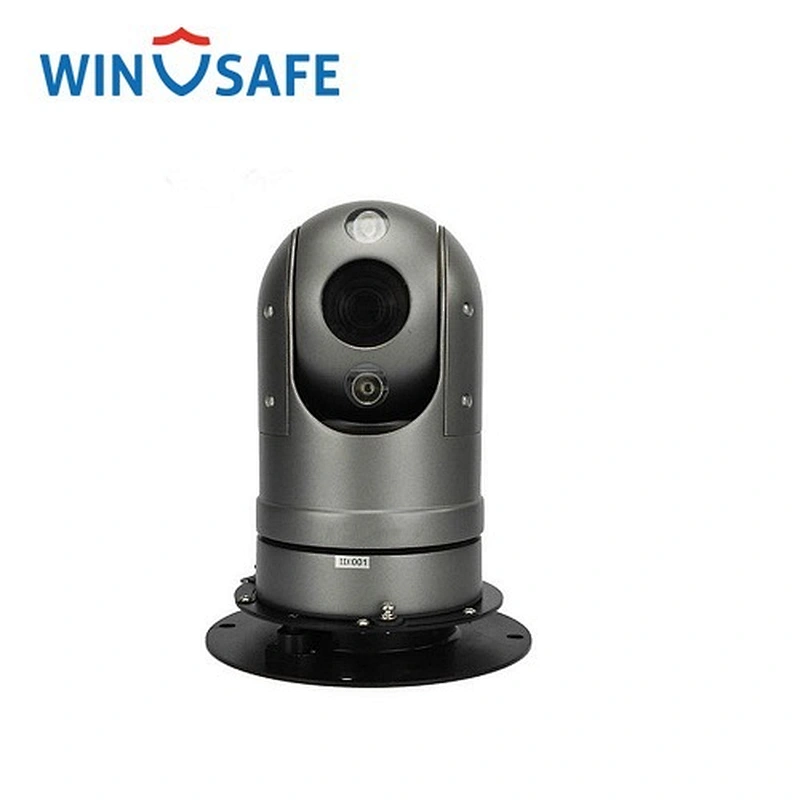

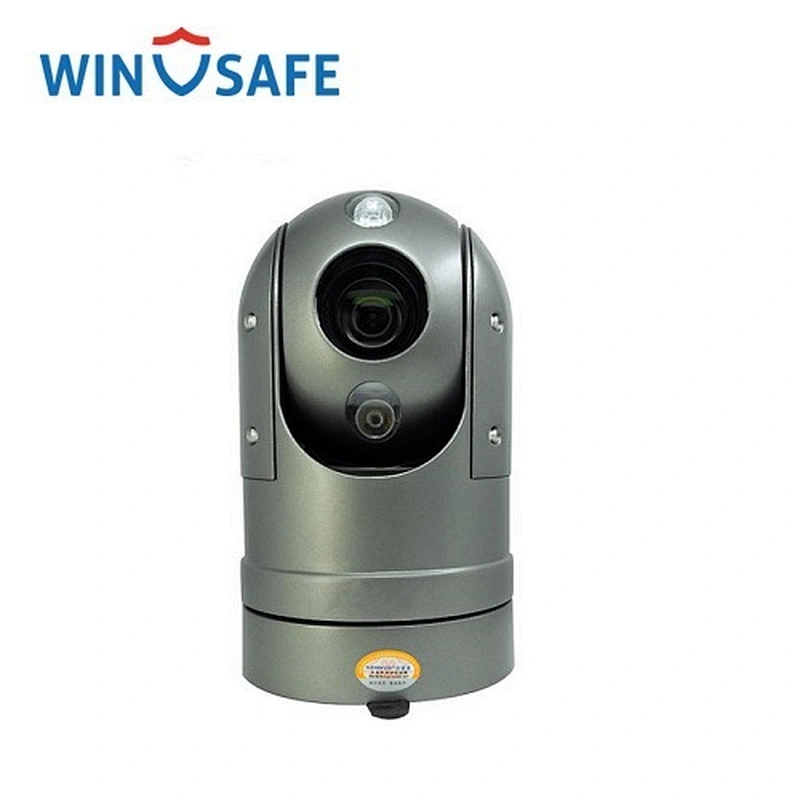

30X Optical Zoom Digital PTZ Camera for Military / Law Enforcement / Emergency Vehicle

30X Optical Zoom Digital PTZ Camera for Military / Law Enforcement / Emergency Vehicle

Model NO.: CAHC-C3000
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 5000 piece / Month
Country of Origin: China
Stock Time: 5-7 Days

Quantity:

Product Description

Feature

※ High Speed P/T/Z System, 30X optical zoom
※ 360° continuously rotation, upward angle up to 135°
※ 80M IR Distance
※ Waterproof IP66
※ Super shockproof, especially suitable for vehicle surveillance
※ DC10.5V - DC18V power supply
※ With powerful magnet for portable outdoor vehicle monitoring
※ HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable

Technical Specification

Model No.	CAHC-C3000
Camera
Sensor Type	1/2.8-type CMOS
Signal System	1080p/29.97, HD:1080p60, 1080p/59.94,1080p/50,1080i/60,1080p/30,720p/59.94
Min. Illumination:	Color:：0.5Lux@(F1.6, AGC ON); Black:0.01Lux@(F1.6, AGC ON) 0 Lux with IR
Shutter Speed	50Hz: 1/1 - 1/30,000s; 60Hz: 1/1 - 1/30,000s
Day & Night Model	ICR Auto color to black
Lens
Zoom	f = 4.3mm(wide) - 129mm(tele),30X optical zoom
Zoom speed	3s
Horizontal angle	63.7°(wide end) - 2.3°(tele end)
Close - up distance	10mm - 1200mm
IRIS	F1.6 to F4.7
PTZ
Horizontal Range	continuous rotation
Horizontal Speed	Control speed: 0.1° - 160°/s, speed adjustable, preset speed: 240°/s
Vertical Range	-30° - 90° Auto rotation
Vertical Speed	Control speed: 0.1° - 120°/s, speed adjustable, preset speed: 200°/s
Aviator Ratio	Support
Preset	256
Cruise Scan	Preset crusie scan: support: 360° auto cruise scan
Azimuth information display	ON / OFF
Breakout memory	support
IR
IR Range	50 - 80 meters
IR Control	Light Brightless and angle adjustable
System
Video output and mount	HD-SDI output
Wipers	Support
Heating function	Support
RS485	Support Pelco-P,Pelco-D, Bit-rate optional
Others
General	Menu: Chinese/English Brush function support
Power supply	DC11V - 18V
Power consumption	Below 18W(IR Light 15W Max, Heating 5W Max)
Output cable length	1.5 meters
Temperature and humdity	-10°C - 65°C(outdoor), humidity below 90%
Ingress protection	IP66(Outdoor), TVS 6000V Lighting / surge / anti-surge
Installation	Roof rack
